BE22000 Tri-Band Whole Home Mesh WiFi 7 System

HB810 V3

  • 22 Gbps Tri-Band WiFi 7: 12-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
  • 10G Internet Access: Take advantage of bandwidth speeds of up to 10 Gbps through a 10 GbE/SFP+ combo WAN port for both Ethernet and direct fiber access.△
  • Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • Multi-Link Operation (MLO): Achieve higher throughput per device, lower latency, and higher reliability via multi-link aggregation across three bands.†
  • Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels in the expansive, less-congested 6 GHz band.†
  • Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
  • Smart Home Ready: Connect and manage numerous IoT devices to enable a truly connected home via Matter.**
  • Energy Efficiency: Offers flexible power-saving options that benefit both the planet and your bill.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide a personalized and safer online experience.†
  • Easy Setup and Use: Simplify the setup and management of your mesh network with the Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Super Mesh‑Powered WiFi 7

BE22000 Whole Home Mesh WiFi 7 AP

HB810
product on a coffee table

22 Gbps

Tri‑Band WiFi

4 + 4 + 4

Simultaneous Spatial Streams

320 MHz Channels

4K-QAM

Multi‑Link Operation

Matter-Compatible

Seamless Roaming

Easymesh-Compatible

10G

Ethernet/Fiber Internet Access

10G

Wired Connectivity

Aginet Solution

End‑to‑End Management Platform

Parental Controls

Enhanced Security

TR‑069/TR‑369 Remote Management

collage of spotlight details

22 Gbps Tri‑Band WiFi Speeds

Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands take WiFi speeds and efficiency to the next level, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.*†

320 MHz

Double the width, double the speed

4K‑QAM

Packs 120% data for higher speeds

Multi‑Line Operation

Increases throughput, reduces latency, and improves reliability

Multi‑RUs

Make full use of every resource for maximum efficiency

6 GHz

4x4 Spatial Streams

11520 Mbps

5 GHz

4x4 Spatial Streams

8640 Mbps

2.4 GHz

4x4 Spatial Streams

1376 Mbps

man playing game with a VR headset

The Ultimate 10G Internet Access and Wired Connectivity

HB810 meets high-bandwidth needs with 10 Gbps internet access via Ethernet or fiber through its 10 GbE/SFP+ Combo WAN/LAN port. Its 10G LAN port enables faster, more stable wired backhaul, while the two 2.5G LAN ports add network flexibility.△

① Multi-Gig Ethernet/Fiber Internet Access

② Multi-Gig Wired Connections

③ Superfast Media Sharing

three different connection modes

10G

LAN Connectivity

10G

WAN/LAN Connectivity

10G

Fiber Access via SFP+ Slot

Superfast Media Sharing

model

Extensive WiFi Coverage and Stronger Signals

Get a solid connection in every corner of your home thanks to a high‑performance antenna array and beamforming technology. Your WiFi coverage adapts to your home and concentrates signals to your devices.

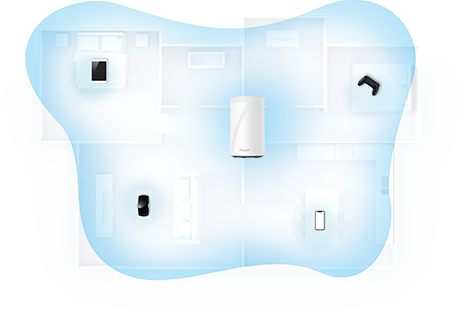

Beamforming

diagram showing coverage on a floorplan

8× High‑Gain Antennas

The optimally positioned antenna array ensures balanced WiFi coverage with high isolation and less interference

12× High‑Power FEMs

Maximize range for better performance

model

Whole Home Coverage with Seamless Roaming

HB810 works with other EasyMesh‑compatible routers and mesh APs to deliver strong WiFi signals throughout your home for true seamless coverage. Want more coverage? Simply add another HB810 wherever you want.‡

wifi in home icon

Whole Home Coverage

Eliinate your home's weak WiFi coverage areas

smart roaming icon

Smart Roaming

Stream flawlessly while on the move

one wifi name icon

One WiFi Name

No more changing WiFi networks when you move around

robust backhaul icon

Robust Backhaul

Supports both wireless and Ethernet backhaul

multiple HB810 products in a home

More Connections, Less Buffering

Enhanced by WiFi 7 and featuring OFDMA, Multi‑Link Operation (MLO), and MU‑MIMO, connect up to 250 devices simultaneously for a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.†

Connects up to

250

devices §

§Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.

wifi in home icon

Web Browsing

smart home devices icon

Smart Home Devices

ip camera streaming icon

IP Camera Streaming

high-speed downloading icon

High‑speed Downloading

online gaming icon

Online Gaming

8k streaming icon

8K Streaming

720p streaming icon

720p Streaming

1080p streaming icon

1080p Streaming

4k streaming icon

4K Streaming

multiple HB810 products in a home

Smart Home Ready

Built with Matter, HB810 can work as a central controller to connect and manage Matter‑certified IoT devices, enabling a truly connected smart home.**

woman journaling on a sofa behind the HB810

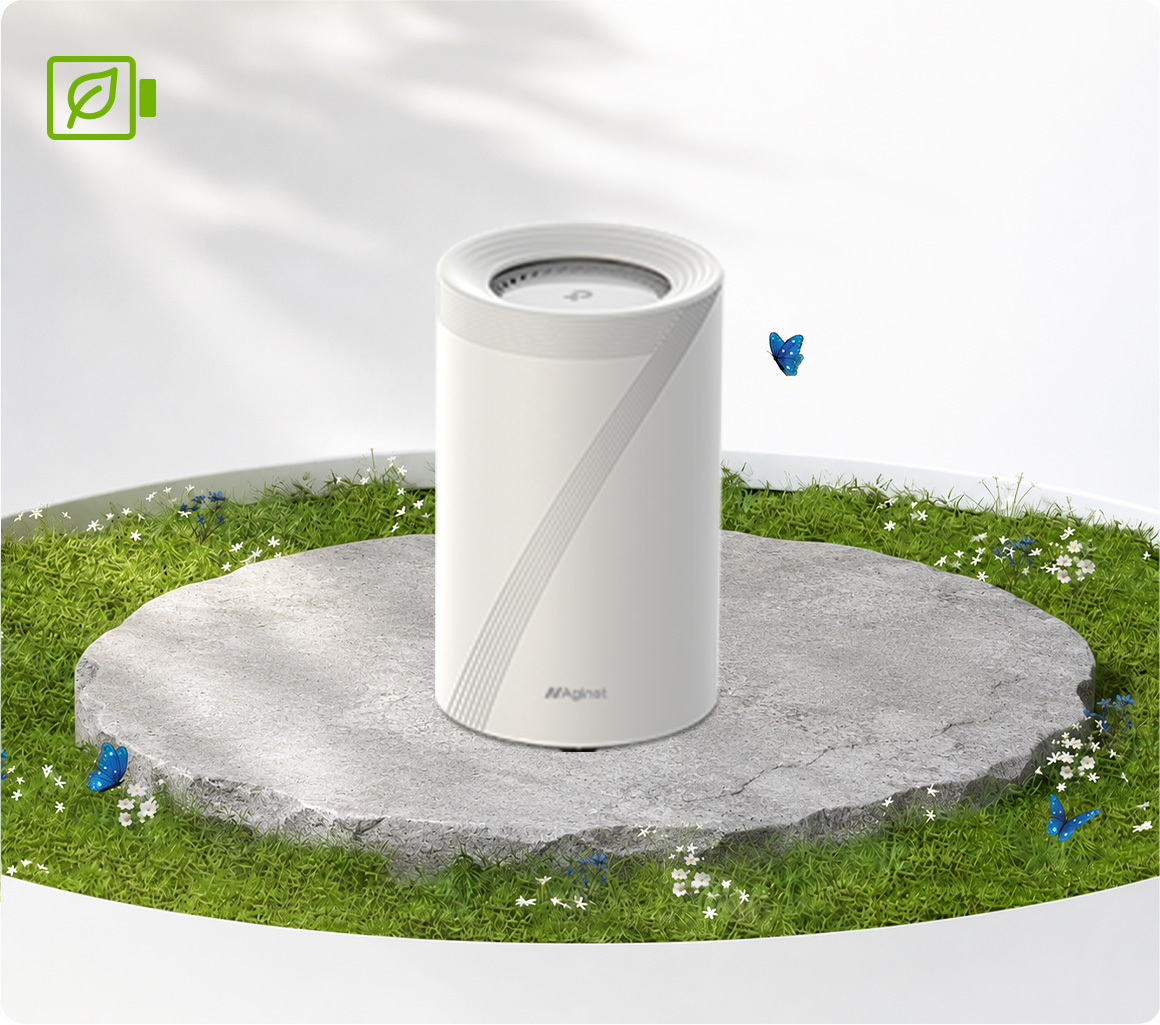

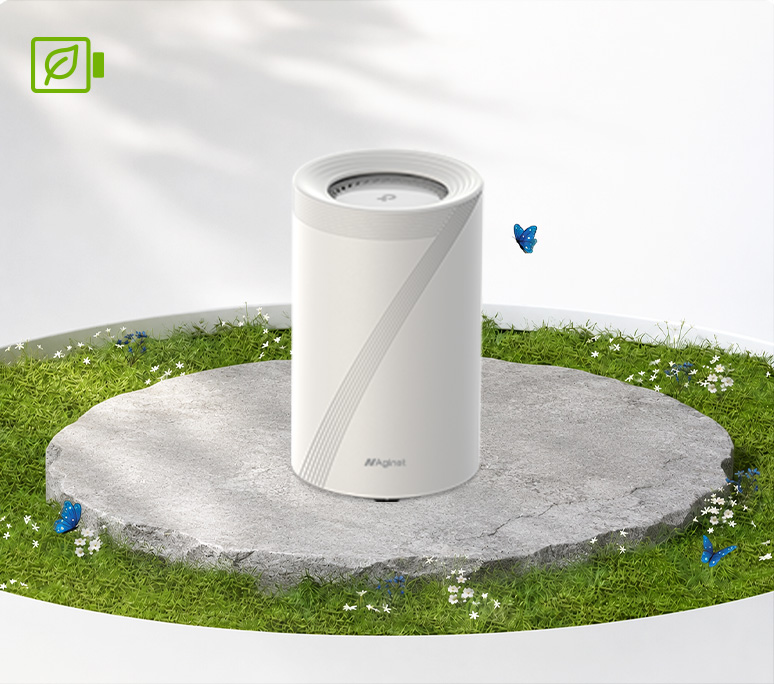

Smart Power Saving

By implementing a granular, component‑level power management mechanism, HB810 offers flexible power‑saving options without significantly impacting performance.

Smart Mode

Automatically adjusts module performance and strategies based on your actual network usage

~35%

Less power than normal mode§

70 KW/h

Saved per year

Standby Mode
Custom Mode

§Tests were conducted in the TP‑Link lab, where 36 wireless devices were connected across three bands. Actual results may vary depending on the behaviors of the connected devices.

woman journaling on a sofa behind the HB810

Robust Network Protection

WPA3 Security

Higher password safety and enhanced protection against attacks†

back of a user on a laptop

Parental Controls

Block inappropriate content and restrict time spent online

parent and child using a laptop

Multi-SSID

Create separate networks for visitors and keep your main network secure

woman on a video call with a laptop

2‑in‑1 Router and Access Point

HB810 works as either a router or access point, giving you flexibility where you need it. Choose the mode that fits your needs for adaptable wireless and wired connectivity.

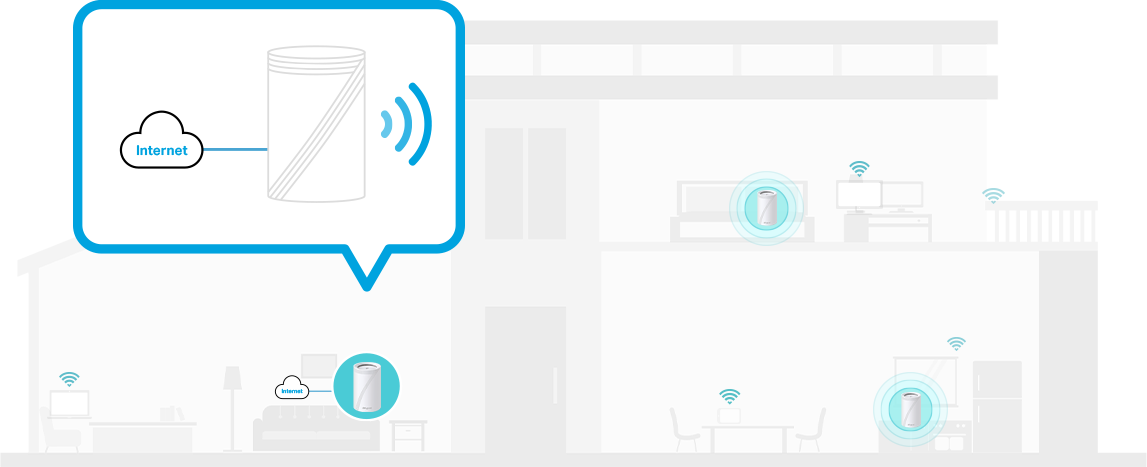

diagram of products with router mode in a house

Router Mode

Create a private wireless and wired network

diagram of products with router mode in a house

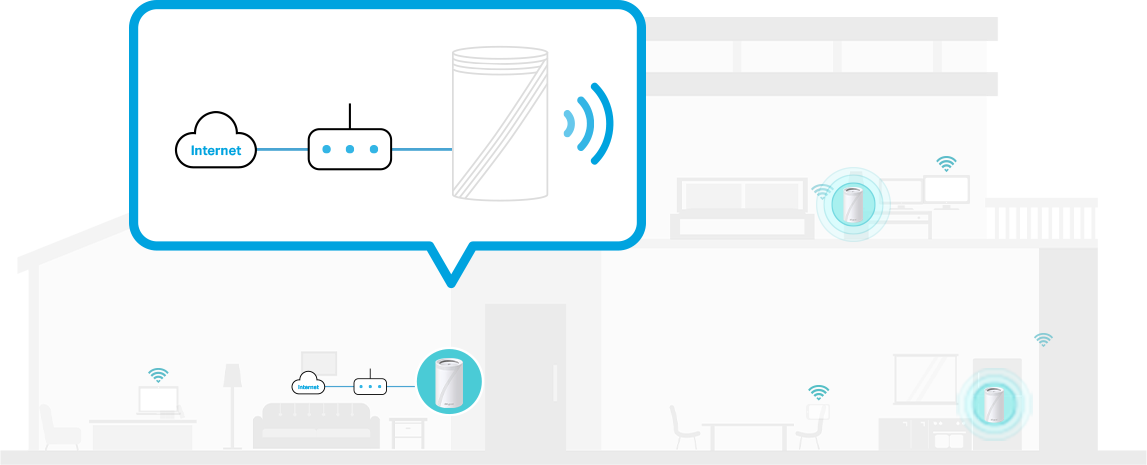

Access Point Mode

Create WiFi access for your existing wired network

Easy Management and Control via the App

The Aginet app lets you manage your network on a smartphone or tablet.

QR code
Aginet logo
Apple app store Google Play store

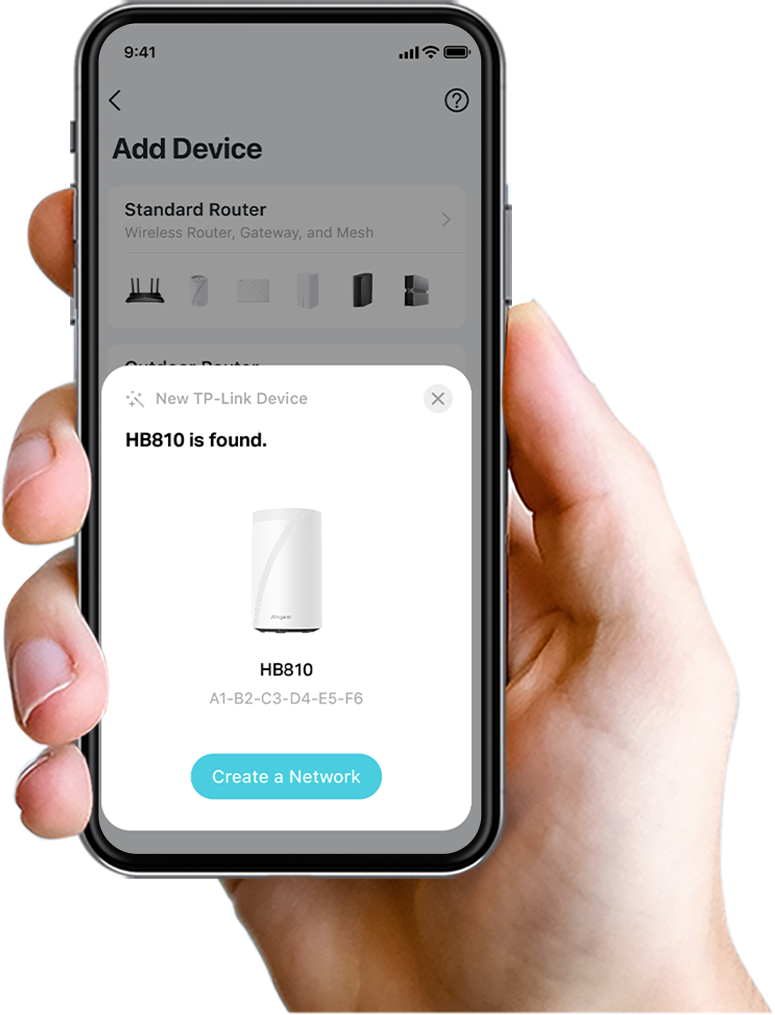

Easy Setup and Onboarding

Automatically detect new devices via Bluetooth and get online with step‑by‑step instructions.

Easy WiFi Sharing
Network Status at a glance
Remote Management

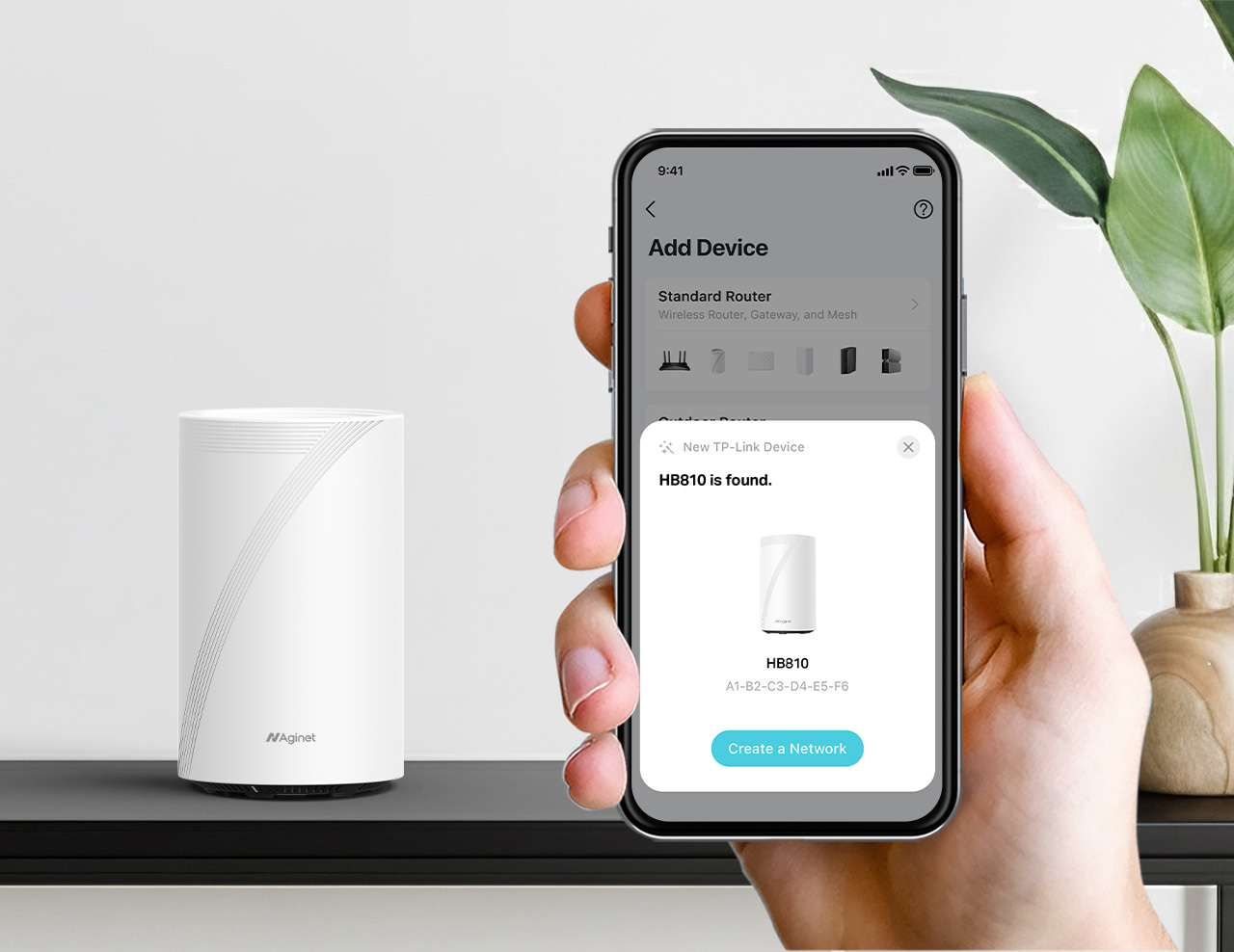

phone showing the TP-Link app finding a new device to connect

Supports TR‑069/TR‑369 Remote Management

ISPs can remotely configure and manage devices via their Auto‑Configuration Server (ACS) system or Aginet ACS. With TR‑181, TR‑111, and TR‑143 supporting high‑level operations, home users get to enjoy faster, more efficient service.

TR‑069/TR‑369

Remote Management

TR‑181

TR‑111

TR‑143

diagram of ACS system connected to an office network

Aginet Solution: An End‑to‑End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage mulitple devices for connected homes, such as dynamic service provisioning, zero‑touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn more about the Aginet Solution>
Aginet environment

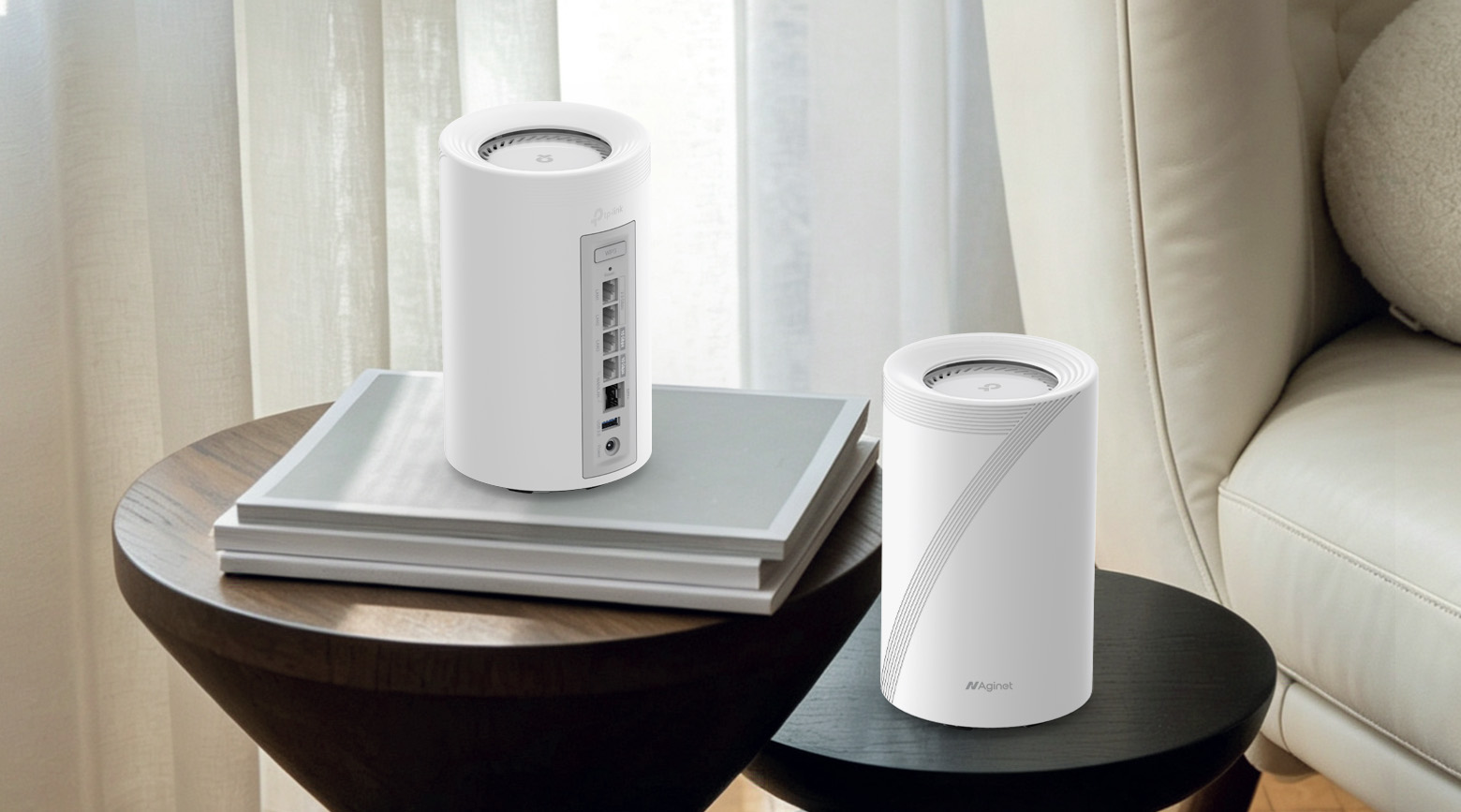

two HB810 products on a coffee table

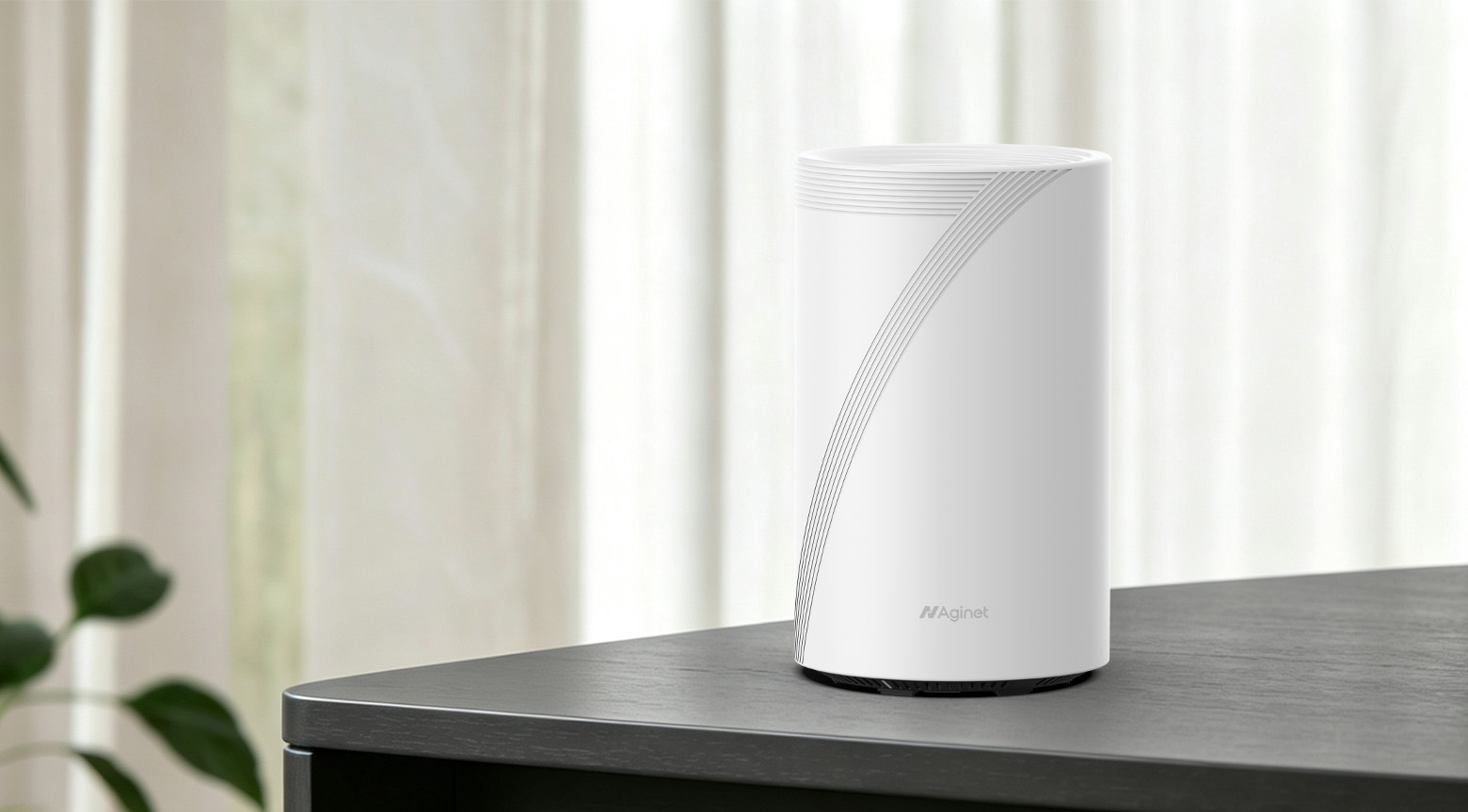

hb810 product on a table

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**This product only supports the management of Matter v1.0-compatible devices.

†Use of WiFi 7 (802.11be), WiFi 6E/WiFi6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.

‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMesh™ certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to WiFi roaming that supports the IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.

△10 Gbps or multi-gig internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

HARDWARE FEATURES
External Power Supply 12V/4.5A
Interface 1× 10 GbE/SFP+ Combo WAN/LAN Port
1× 10 GbE LAN Port
2× 2.5 GbE LAN Ports
1× USB 3.0 Port

*Per Unit
Button WPS Button
Reset Button
Dimensions ( W x D x H ) 4.65 × 4.65 × 7.80 in
(118 × 118 × 198 mm)
WIRELESS FEATURES
Frequency 2.4 GHz, 5 GHz, and 6 GHz
Signal Rate BE22000
6 GHz: Up to 11520 Mbps (EHT320)
5 GHz: Up to 8640 Mbps (EHT240)
2.4 GHz: Up to 1376 Mbps (EHT40)*
Wireless Security WPA/WPA2/WPA3-Personal
Wireless Standards IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Transmission Power FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)
<30 dBm(6 GHz)

CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
<23 dBm (6 GHz)
Multi-SSID 2× 6 GHz Multi-SSID
2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Mesh Technology EasyMesh compatible and supports 802.11k/v/r
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Quality of Service WMM
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management:
TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers
Aginet App for end users (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Advanced Features Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU, OFDMA, MU-MIMO, Beamforming, BSS Color
QoS (Quality of Service), Port Forwarding, CWMP
Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistics
Matter v1.0 compatible
Protocols IPv4
IPv6
VPN PPTP, OpenVPN, IPSec
Working Modes Router Mode
Access Point Mode
OTHERS
Package Content HB810 (1-Pack)
1× HB810 Unit
1× Power Adapter
1× RJ45 Ethernet Cable
1× Quick Installation Guide

HB810 (2-Pack)
2× HB810 Units
2× Power Adapters
1× RJ45 Ethernet Cable
1× Quick Installation Guide
Certifications CE, FCC
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
