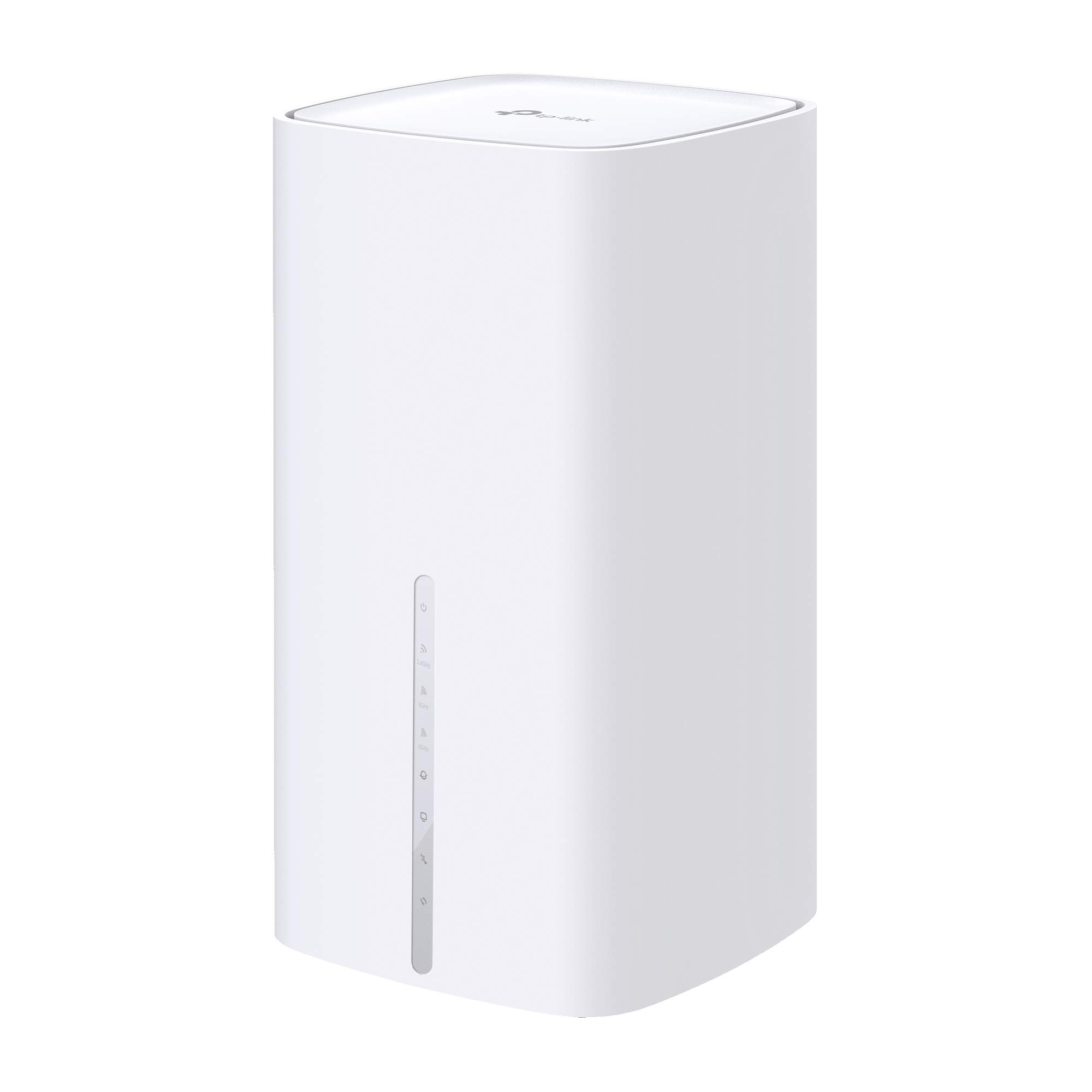

AXE7800 Tri-Band Wi-Fi 6E Router

EX920

  • AXE7800 Tri-Band Wi-Fi: 2402 Mbps (6 GHz) + 4804 Mbps (5 GHz) + 574 Mbps (2.4 GHz).*
  • Multi-Gig Connectivity: 1× 2.5GE WAN port, 1× 2.5GE LAN port, and 2× GE LAN ports provide ultra-fast speeds and flexible internet access.†
  • Works on the 6 GHz Band: Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.**
  • EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility.‡
  • Connects More Devices: Serves multiple devices at once with OFDMA and MU-MIMO. All devices receive their data faster, and Wi-Fi is used more efficiently.*
  • Enhanced Security: Safeguard your network with firewalls and the latest WPA3 encryption.**
  • Fast Media Sharing: Quickly and easily share files, photos, music, and video across your network via the USB 3.0 port.
  • Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.

FASTER. BROADER. UNSTOPPABLE.

AXE7800 Tri-Band Wi-Fi 6E Router

EX920
wifi6 icon 2.5G

2.5GE Ports + USB 3.0

160 MHz

Doubled Throughput

6X
High-Gain Antennas

EasyMesh Compatible†

TR-369/069
Remote Management

Aginet Solution

End-to-End
Management Platform

WiFi 6E: A Freer and Faster Future

With the new 6 GHz band, experience more bandwidth, faster speeds, and lower latency for AR/VR gaming and 8K streaming on your WiFi 6E devices.

Learn more about WiFi 6E >

6GHz

2402 Mbps

5GHz

4804 Mbps

2.4GHz

574 Mbps

Powerful and Exquisite

With 8 simultaneous data streams and 6 high gain antennas, EX920 opens up more bandwidth for your devices and enough coverage to fill every corner of your home.

  • Tri-Band

  • 8 Streams

  • 6 GHz

  • 5 GHz

  • 2.4 GHz

2.0GHz Quad-Core CPU for Better Processing

Every click and tap on your laptop or phone responds quicker thanks to an advanced chipset with more memory. Enjoy faster connections with minimal latency even under heavy loads.

2.5G Internet Access and Wired Connectivity

One 2.5 Gbps WAN port maximizes home internet speeds with up to 2.5x the wired speed of a typical Gigabit Ethernet port. Combining its 2.5 Gbps LAN port, 2 Gigabit LAN ports and a USB 3.0 port, EX920 is an ideal solution for future-proofing your home network.

  • IPTV

    IPTV

  • Game Console

    Game Console

  • Computer

    Computer

  • NAS

    NAS

  • Hard Disk

    Hard Disk

  • Flash Drive

    Flash Drive

1× 2.5G WAN +

1× 2.5G LAN

USB 3.0

Smart Mesh WiFi with Greater Flexibility

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.‡

  • EasyMesh Routers

  • Traditional Router with Extender

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

Easy Setup and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

QRcode
Apple Store
Google Store

Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

TR-069/TR-369

Remote Management

TR-181 TR-111 TR-143

Aginet Solution:
An End-to-End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn more about the Aginet Solution>

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of WiFi 6 (802.11ax)/WiFi 6E and other features including OFDMA, 1024-QAM, TWT, MU-MIMO, and WPA3 requires clients to also support the corresponding features. Not all 160 MHz channels may be available in the 6 GHz band in some regions/countries due to regulatory restrictions.

†Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. 2.5 Gbps internet speeds require compatible service plans and equipment.

‡This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification.

HARDWARE FEATURES
Antenna High-Performance Internal antennas
External Power Supply 12VDC/3.3A
Interface 1× 10/100/1000/2500 Mbps Ethernet WAN Port
1× 10/100/1000/2500 Mbps Ethernet LAN Port
2× 10/100/1000 Mbps Ethernet Ports
1× USB 3.0 Port
Button Power On/Off Button, Reset Button, Wi-Fi On/Off Button, WPS Button
Dimensions ( W x D x H ) 4.5 × 4.5 × 9.1 in (115 × 115 × 232 mm)
WIRELESS FEATURES
Frequency 2.4 GHz, 5 GHz, and 6 GHz
Signal Rate AXE7800
6 GHz: Up to 2402 Mbps (HE160)
5 GHz: Up to 4804 Mbps (HE160)
2.4 GHz: Up to 574 Mbps (HE40)
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics, Multi-SSID, Guest Network, TX Beamforming
Wireless Security WPA/WPA2/WPA3 Personal
Wireless Standards IEEE 802.11ax 6 GHz
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Transmission Power CE: <20 dBm (2.4 GHz); <23 dBm (5 GHz); <23 dBm (6 GHz)
FCC: <30 dBm (2.4 GHz); <30 dBm (5 GHz); <30 dBm (6 GHz)
Wireless Schedule Supports 2.4 GHz, 5 GHz, and 6 GHz Wireless Schedule
Mesh Technology EasyMesh Compatible, Seamless Roaming, Self-healing, Support 802.11k/v/r
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP/Bridge
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
VPN Pass-Through IPSec, PPTP, L2TP
Access Control Parental Controls, Local Management, Host List, White/Black List
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Management Features Local management: WebGUI management, Aginet app management
Remote management: TR-069, TR-181, TR-369, TR-111, TR-143
Cloud management: TAUC (TP-Link Aginet Unified Cloud)
Advanced Features QoS (Quality of Service), Cloud Firmware Upgrade, Network Diagnostic, Traffic Statistic, 1024-QAM, MU-MIMO, OFDMA
Protocols IPv4, IPv6
Operating Modes Router, Access Point
VPN Server PPTP, OpenVPN, IPSec
OTHERS
Package Content 1× Tri-Band Wi-Fi 6E Router EX920
1× Ethernet Cable
1× Power Adapter
1× Quick Installation Guide
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Certifications FCC
Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
