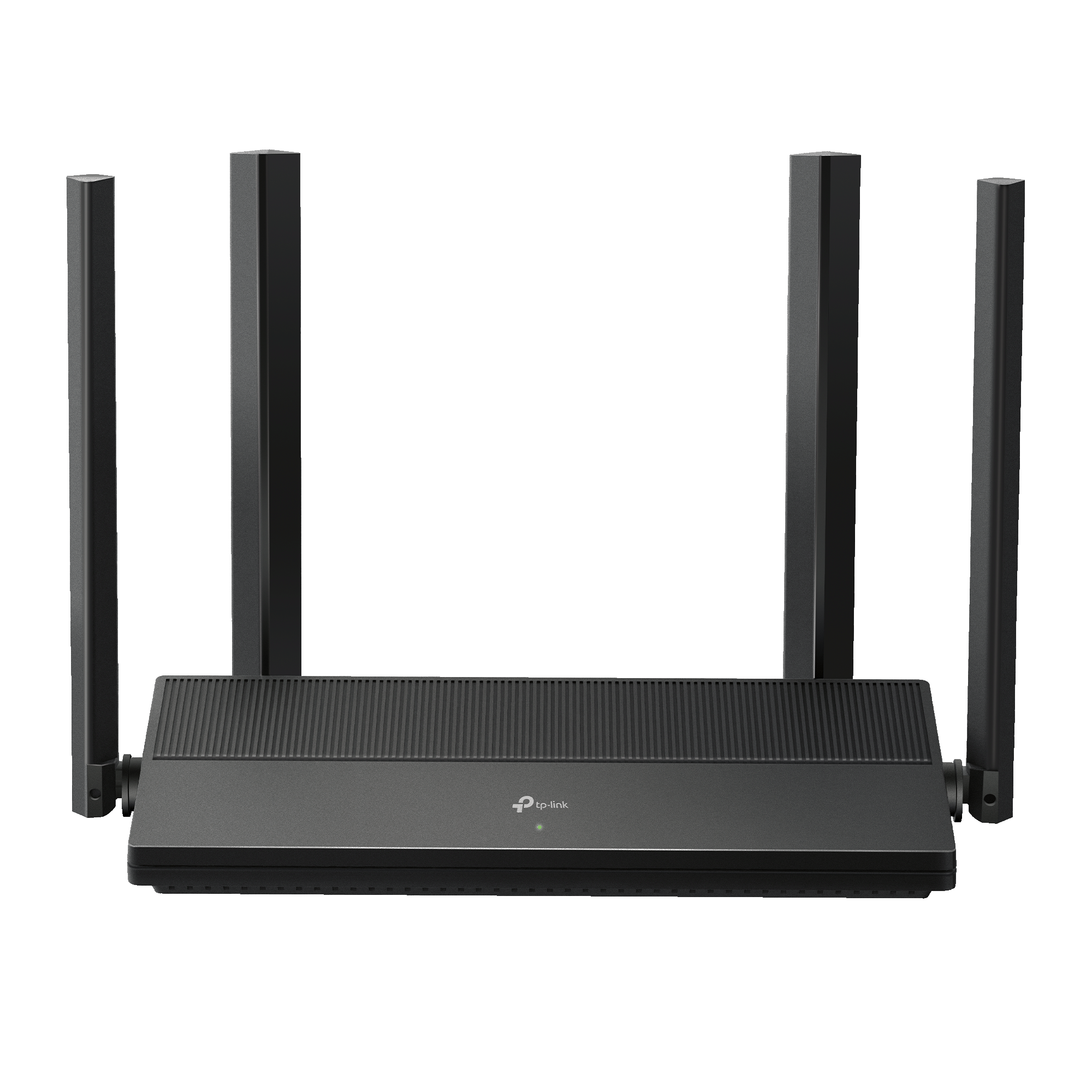

AC1200 Wireless Dual Band Gigabit Router

EC220-G5

  • Superfast dual band Wi-Fi, up to 1.2Gbps Wi-Fi speed, 300Mbps 2.4GHz, 867Mbps 5GHz
  • Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices
  • IPv6: compatible with IPv6 (Internet Protocol version 6
  • IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
  • Full Gigabit Ports, Support 1000Mbps WAN port and four 1000Mbps LAN port, for ultrafast data transfer speeds

AC1200
Wireless Dual Band Gigabit Router

EC220-G5

High-Speed Dual Band Wi-Fi for Better Connection

Blistering wireless speeds of up to 1.2Gbps at 2.4GHz & 5GHz band ensure smooth online gaming and HD streaming and rapid downloads.

300

Mbps

2.4 GHz

867

Mbps

5 GHz

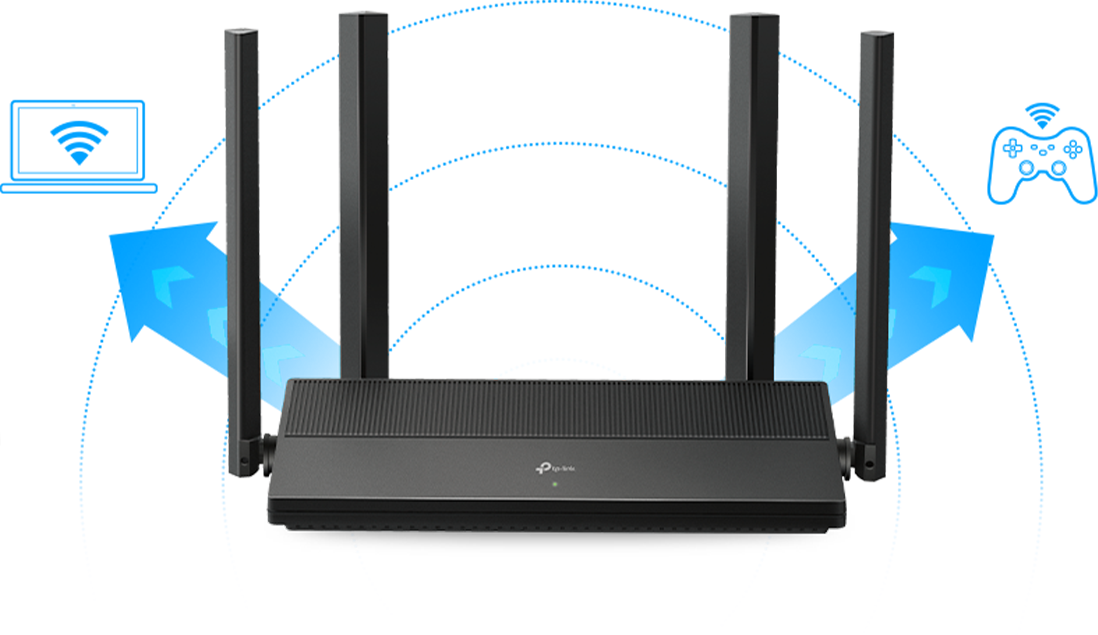

Innovative Antenna Design for Maximum Coverage

Four well-ordered antennas make all of your connections more efficient and stable. Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.

Easy Parental Control

Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.

Support Multi-SSID

Multiple SSID helps ISPs easily create separate WLAN networks for various service deployments, such as IPTV, Internet, etc.

Easy Setup and Management with the Tether APP

The free Tether app is available for both Android and iOS devices, making it easy to set up the EC220-G5 and manage your network settings.

Tether

Easy Remote Management for ISPs

Support TR-069 protocols, enabling ISPs to remotely configure and manage end-user devices. Support TR-098.

TR-069

Remote Management

TR-098

TP-Link’s Agile Solution: Greatly Reduce ISPs’ OPEX

Support Agile Config, enabling ISPs to customize default configurations according to their requirements, and keep the settings after users reset devices.

Support Agile ACS, enabling ISP to realize remote management of deployed devices and reduce on-site maintenance cost.

Agile Config for batch configuration

Agile ACS for remote management

HARDWARE FEATURES

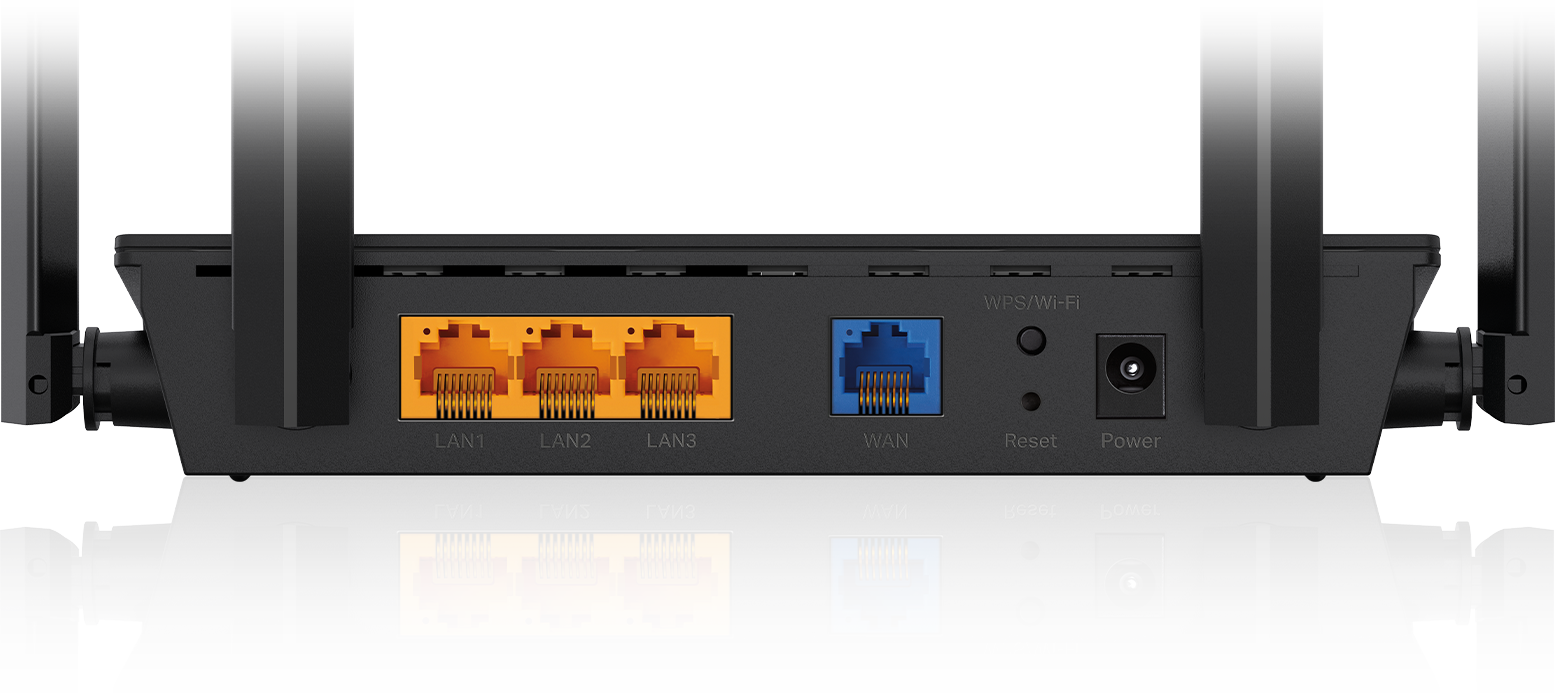

Interface

3 10/100/1000Mbps LAN Ports & 1 10/100/1000Mbps WAN port

Power Supply

12V/1.0A

Dimensions (W x D x H)

9.1 × 5.7 × 1.5 in (230.0 x 144.0 x 37.0mm)

Antenna

4 External Antennas

WIRELESS FEATURES
Wireless Standard

IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300Mbps at 2.4GHz, 867Mbps at 5GHz

Transmit Power

CE: <20dBm(2.4GHz), <23dBm(5GHz)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

SOFTWARE FEATURES
WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)

DHCP

Server, Client, DHCP Client List, Address Reservation

Quality of Service

WMM, Bandwidth Control

Port Forwarding

Vritual Server, Port Triggering, DMZ, UPnP

VPN Pass-Through

PPTP, L2TP, IPSec

Access Control

Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding

Protocols

Supports IPv4 and IPv6

Management

Access Control, Local Management, Remote Management, TR-069,TR-098,TR-111

OTHERS
Package Contents

AC1200 Wireless Dual Band Gigabit Router EC220-G5
Power Supply Unit
RJ45 Ethernet Cable
Quick Installation Guide

Certifications

CE, RoHS

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher.

Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
