5G BE7200 Wi-Fi 7 Telephony Router

NB410v

  • Unrivaled 5G Speed: Experience blazing-fast download speeds up to 4.67 Gbps with 5G technology.*

  • BE7200 Dual-Band WiFi 7: 5764 Mbps on 5GHz + 1376 Mbps on 2.4 GHz**

  • 2.5 Gbps Port for Internet access: The 2.5GE port provides outstanding speed, ensuring an enhanced networking experience.***

  • EasyMesh-Compatible - Co-work with EasyMesh products to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.†

  • Plug and Play: Plug in a SIM card to get instant internet access anywhere.

  • Remote Management: TR-069/TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.

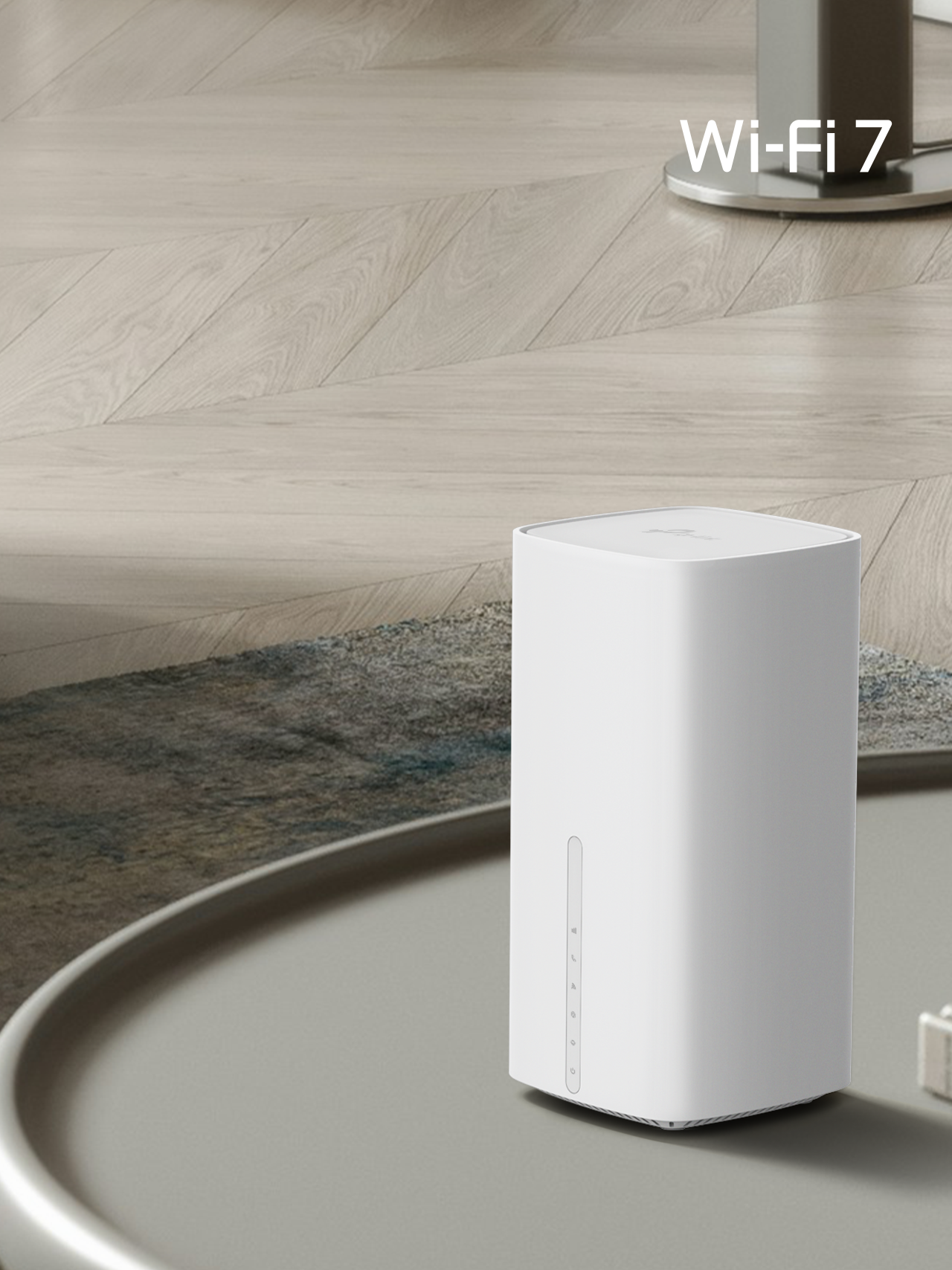

NB410v 5G router on a side table

Enjoy the
Ultimate 5G
Experience

5G BE7200 Dual-Band Wi-Fi 7 Router

NB410v
5G Release 17 EasyMesh Compatible

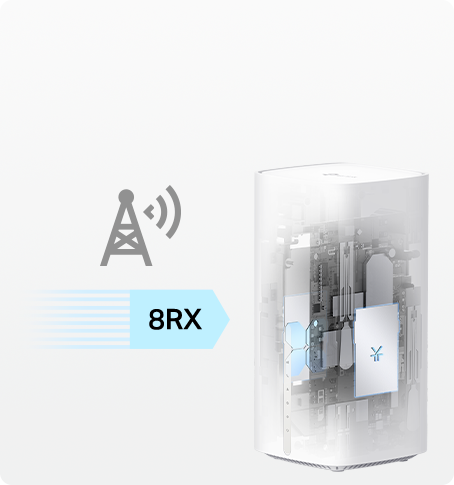

NB410v internal antennas8RX Antennas+20% throughput in
weak signal areas***
2.5GWAN/LAN
ConnectivityNB410v rear ports
Wi-Fi 7Dual-Band WiFi 7 Speeds up to7.2 Gbps†
5G R17Incredible 5G Release 17 up to4.67 Gbps
EasyMesh Compatible
VoLTE/VoNR
Plug & Play

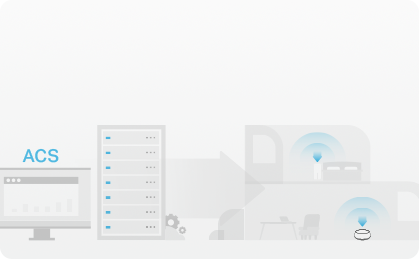

Remote management illustrationRemote ManagementTR-369/TR-069/Aginet App
Management platform illustrationEnd-to-EndManagement Platform

Share Incredible 5G Speed
with Reliable Wi-Fi 7

Powered by cutting-edge 5G Release 17 & WiFi 7 technologies, NB410v boosts up to 4.67 Gbps download speeds and delivers incredible WiFi speeds of up to 7.2Gbp.†§ Enjoy immersive live streaming, gaming, and more with NB410v's huge boost in coverage, speed, and total capacity.

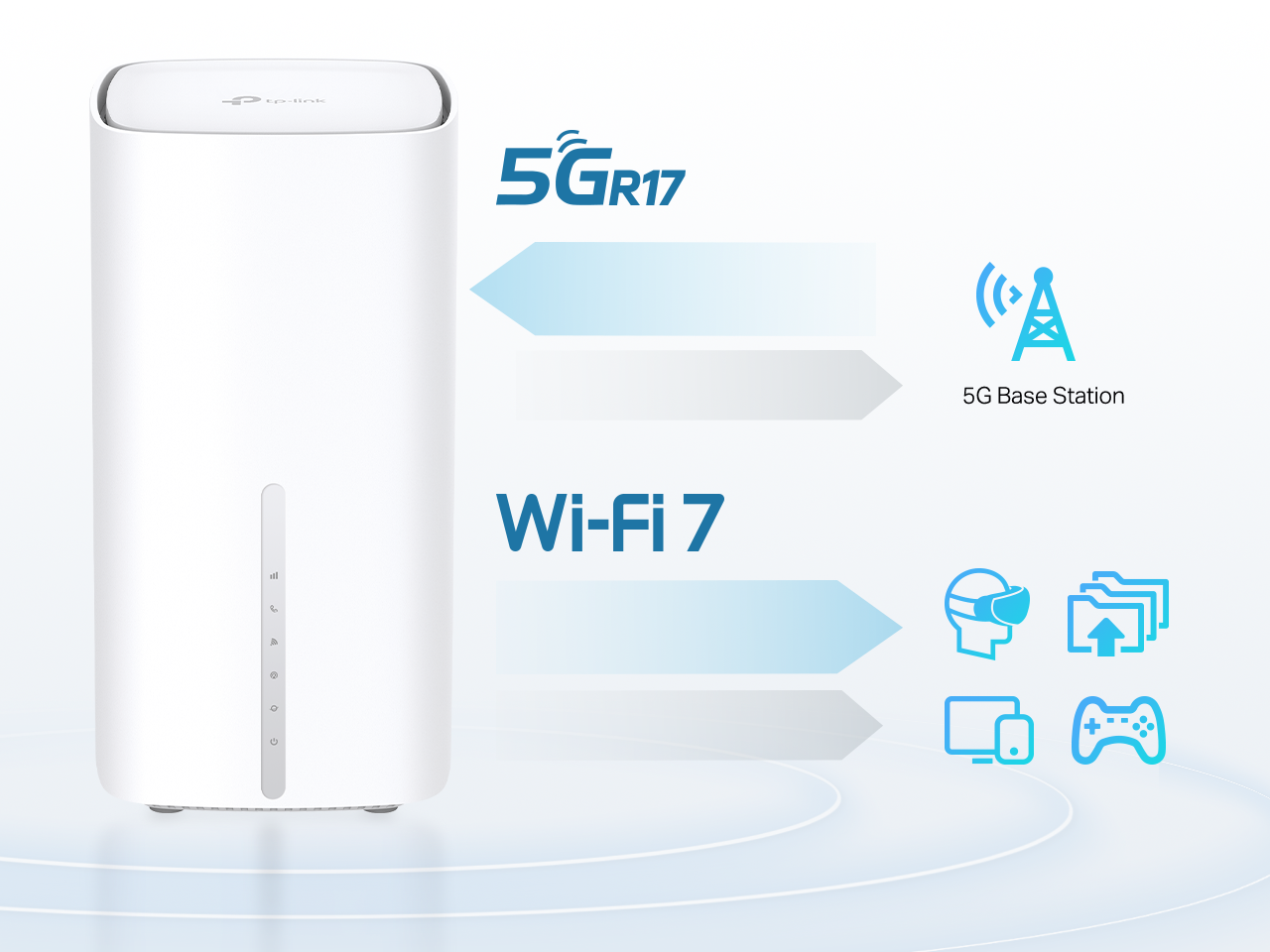

NB410v receiving 5G from a base station and sharing Wi-Fi 7 with devices4.67 Gbps (Download)1.25 Gbps (Upload)5760 Mbps (5 GHz)1376 Mbps (2.4 GHz)

Engineered for Superior Connectivity

Experience elite 5G connectivity powered by a Qualcomm 5G chipset with quad-core delivering faster processing and smoother multitasking for data-intensive applications.

Qualcomm 5G chipsetQualcomm 5G Chipset with Quad-Core CPU

Upgrade Your WiFi to 7

Powered by WiFi 7 technology, NB410v delivers an incredible wireless rate of up to 7.2 Gbps, making full use of 5G. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†

4K-QAMPacks 120% data for higher speeds
Multi-Link OperationIncreases throughput, reduces latency, and improves reliability
Multi-RUsMake full use of every resource for maximum efficiency
Zero-Wait DFSImmediately switch to clean channels without WiFi drop off
Wi-Fi 7 throughput compared with WiFi 6 and WiFi 5Extremely High Throughput

More Coverage. Stronger Signals. Higher Reliability.

NB410v features high-gain antennas with 8 receiving antennas, increasing 20% more throughput in weak signal areas.*** Combining optimized antenna design and anti-interference technology, NB410v keeps stronger, more reliable connections and maximized performance.

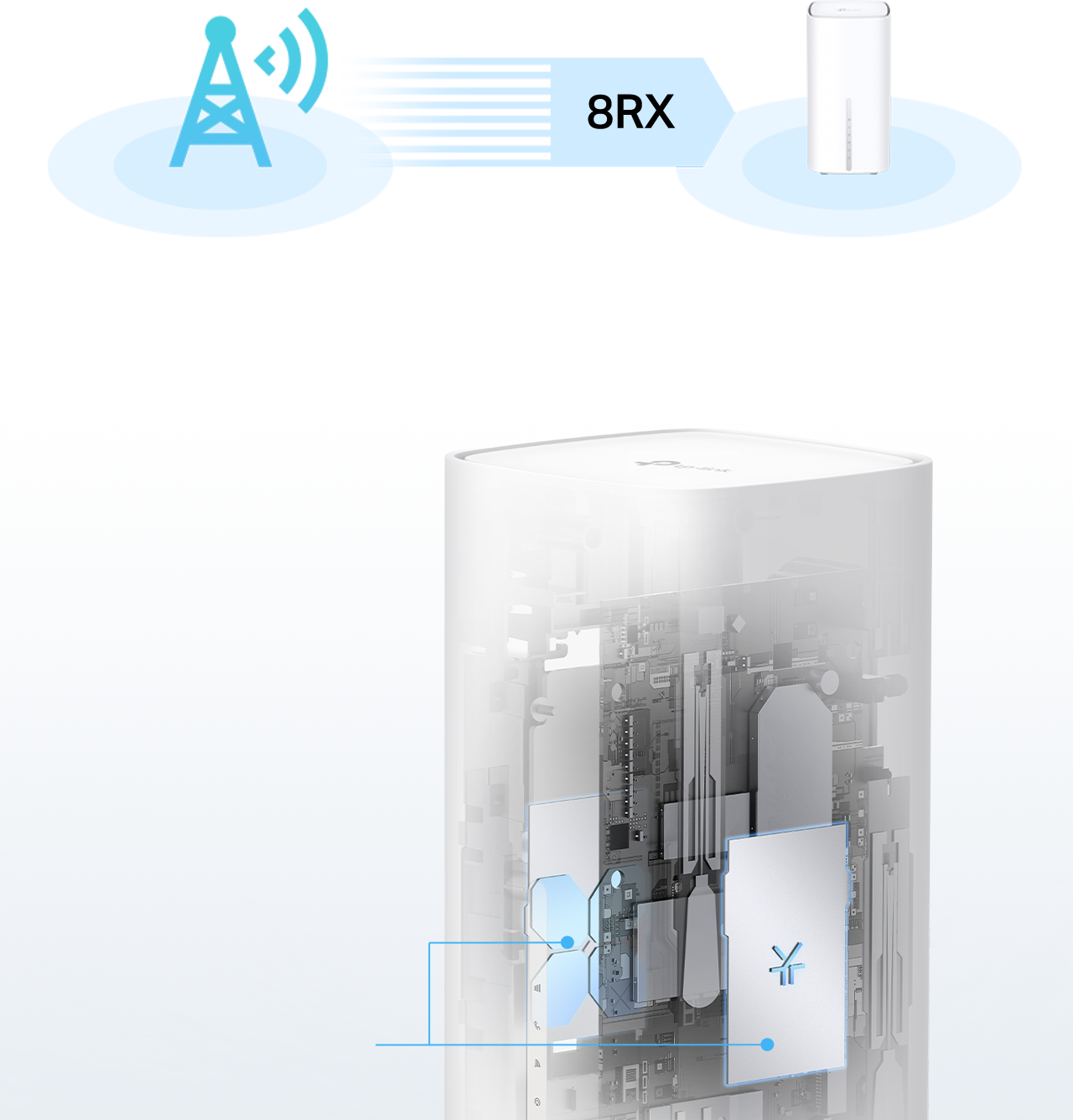

NB410v internal high-gain antennas and 8RX reception diagram
+20% throughputin weak signal areas***
High-Gain
Antennas

Plug and Play, Enjoy 5G Network Everywhere

Simple, just one SIM card

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. NB410v ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

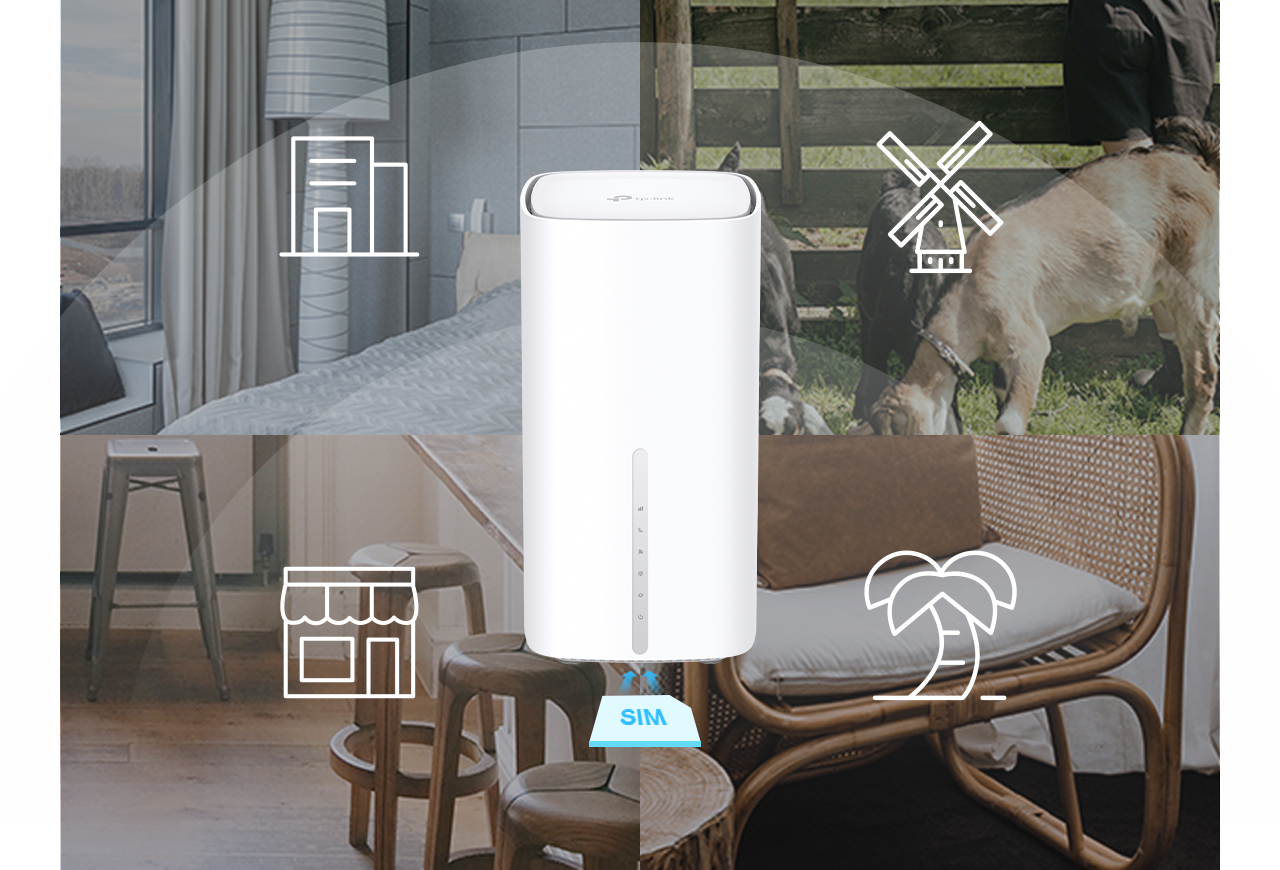

NB410v with a SIM card serving a lodging, a farm, a temporary store and a holiday homeLodgingFarm & FincaTemporary StoreHoliday Home

Multi-Gig Internet Connections

Break through the 1 Gbps bottleneck and take full advantage of your broadband plan with speeds up to 2.5 Gbps via a 2.5G WAN/LAN port. The 3× gigabit LAN ports offer you both flexibility and speeds for a lightning fast home networking.△

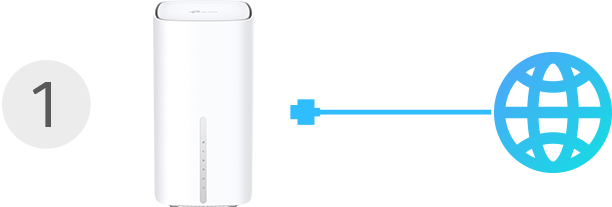

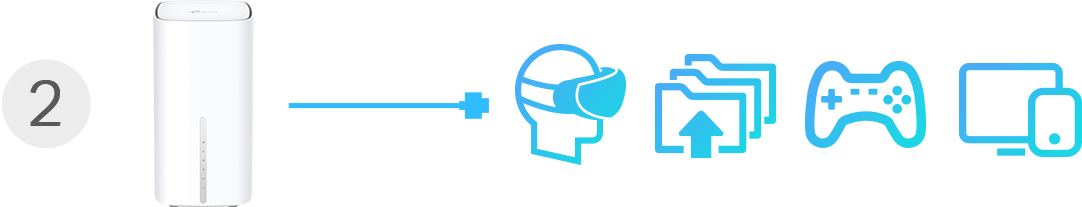

NB410v connected to the internetMulti-Gig Internet AccessNB410v connected to VR, file sharing, gaming and multi-screen devicesMulti-Gig Internet Connections

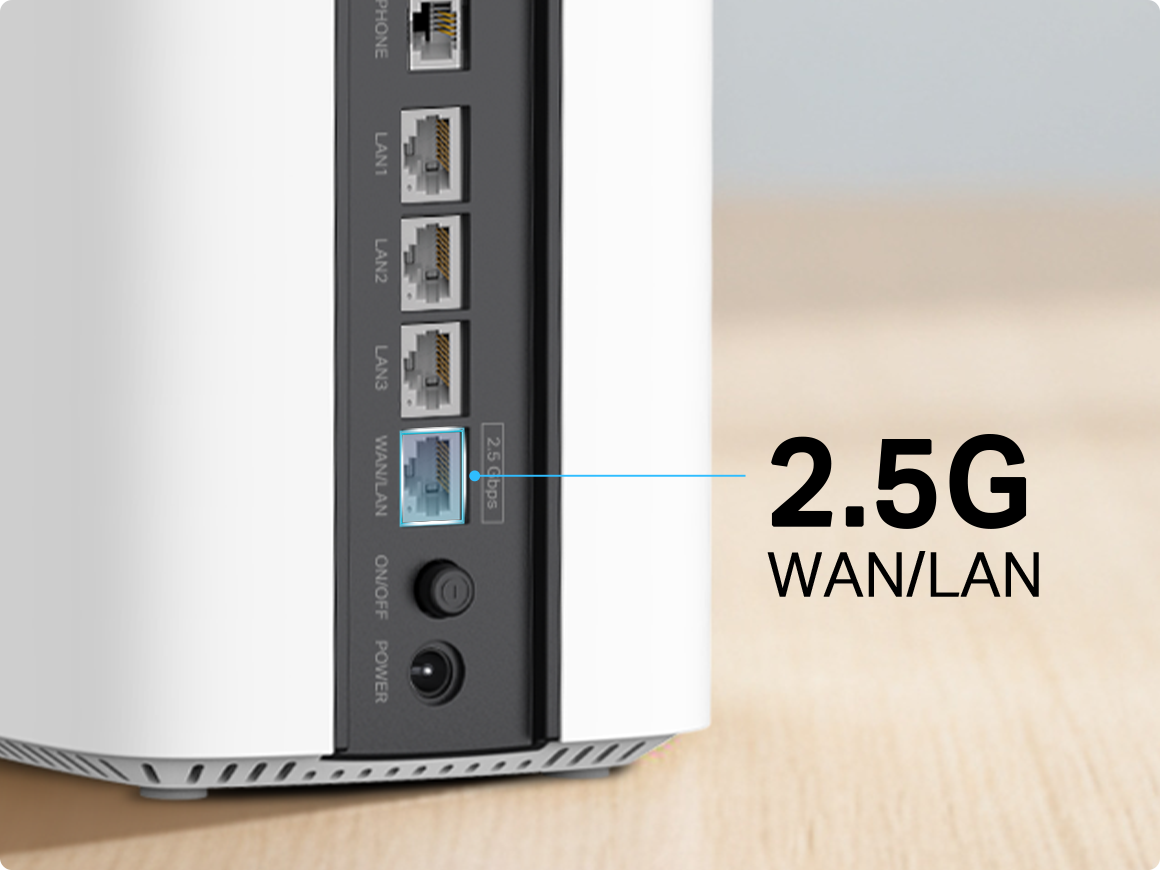

NB410v 2.5G WAN/LAN port

Create Smart Mesh WiFi with Great Flexibility

Working with other EasyMesh-compatible devices, NB410v creates a unified mesh WiFi network for seamless whole home coverage. No more searching for a stable connection.*

Enjoy WiFi and Phone Calls Simultaneously

NB410v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoNR and VoLTE. Simply enjoy a professional and high-quality voice call as you like.**

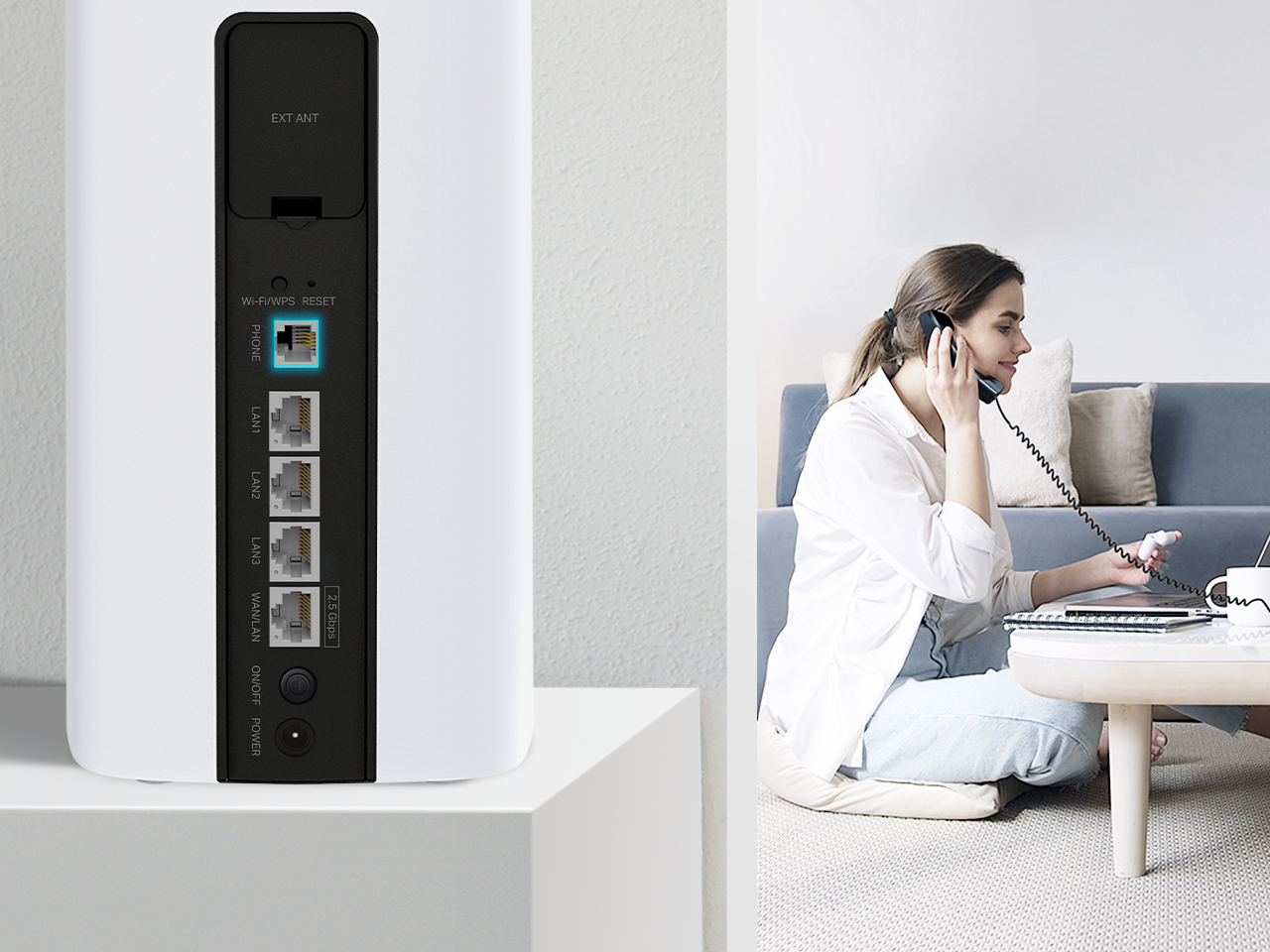

NB410v phone port beside a woman making a landline call while using a laptop

Easy Setup and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your mesh network from a smartphone or tablet.

QR code to download the Aginet appAginet app icon
Download on the App StoreGet it on Google Play

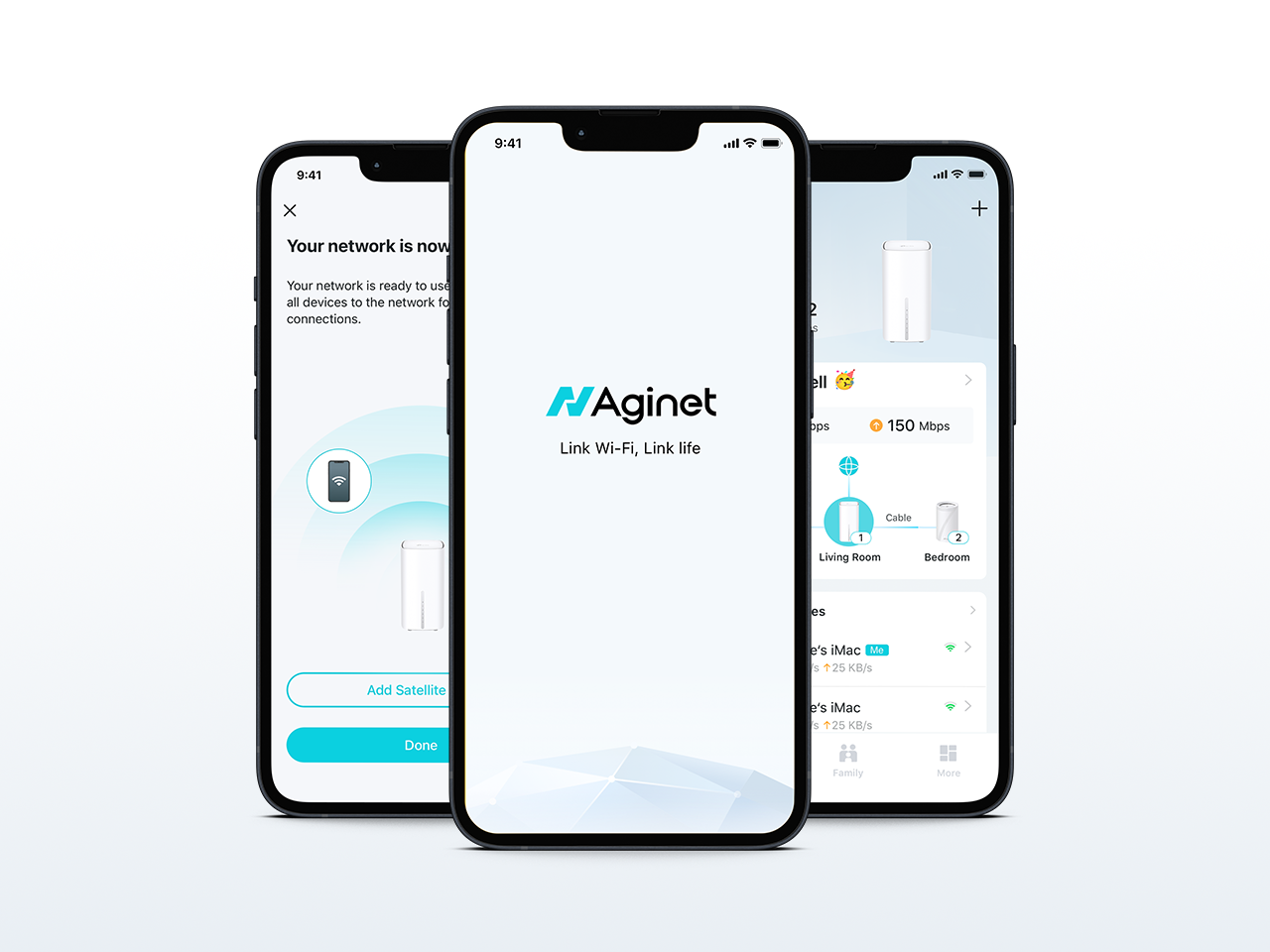

Aginet app screens on three phones

Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. More operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a more efficient service experience for home users.

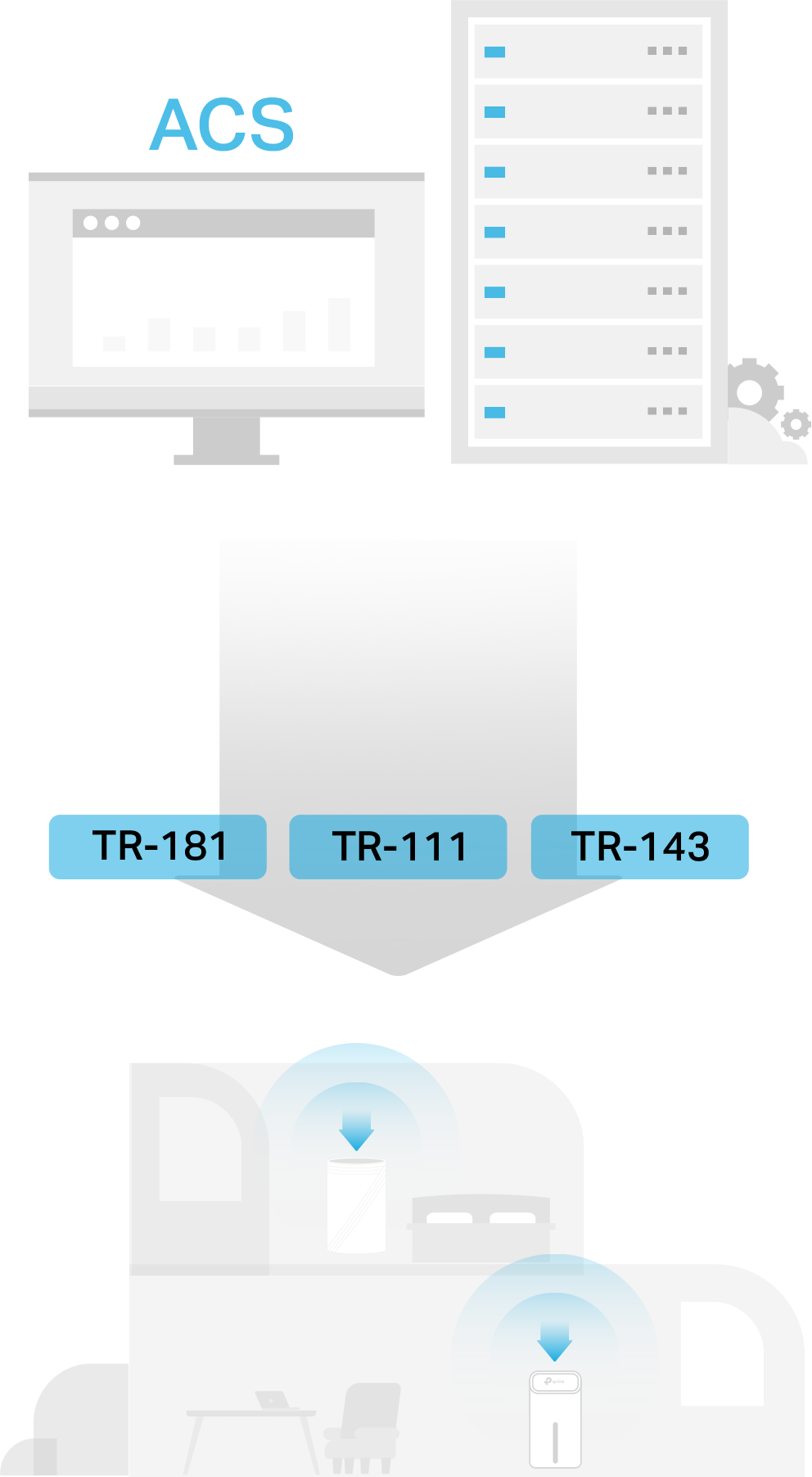

ACS server remotely managing NB410v devices over TR-069/TR-369TR-069/TR-369Remote Management

Aginet Solution: End-to-End
Management System for ISPs

The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting.

Learn More about the Aginet Solution>
Aginet logo surrounded by network management dashboards

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.

§Maximum 5G/4G download and upload speeds depend on external factors such as the local network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported 5G/4G frequency bands may vary slightly in different regions due to certification.

△Muti-Gig Gbps internet speeds require compatible service plans and equipment.

*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

**VoNR/VoLTE telephony may only be enabled for certain carriers. It also requires the user to enable the corresponding services on the service plan for the SIM card used with this device.

***Data based on laboratory test results.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.

§Maximum 5G/4G download and upload speeds depend on external factors such as the local network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported 5G/4G frequency bands may vary slightly in different regions due to certification.

△Multi-Gig Gbps internet speeds require compatible service plans and equipment.

*TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts between different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

**VoNR/VoLTE telephony may only be available with certain carriers. It also requires the user to enable the corresponding services on the service plan for the SIM card used with this device.

***Data based on laboratory test results.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

WIRELESS FEATURES
Transmission Power CE:≤20dbm(2.4GHz);≤23dbm(5G band1/band2);
≤30dbm(5G band3)
(TBD)
Frequency 2.4 GHz and 5 GHz
Signal Rate 5G: 4.67 Gbps (downstream) / 1.25 Gbps (upstream)
LTE: 2 Gbps(downstream) / 200 Mbps(upstream)
Wireless Security WPA/WPA2-PSK/WPA3 encryption
Wireless Standards IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Network Type 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78
4G:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32
TDD-LTE: B38/B40/B41/B42/B43
3G: B1/B5/B8
Mesh Technology 802.11k/v/r, support EasyMesh
HARDWARE FEATURES
Interface 1× 2.5 GE WAN/LAN port, 3× GE LAN ports
Button 1 WPS/WIFI multiplex button & 1 Reset button
Antenna Internal WiFi antennas; optional Internal/external antennas
OTHERS
Package Content 5G BE7200 Wi-Fi 7 Telephony Router NB410v
1× RJ45 Ethernet Cable
1× Power Adapter
1× RJ11 Cable
1× Quick Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
