AX3000 Whole Home Mesh WiFi 6 AP with PoE

HX510-PoE

  • Dual Band WiFi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.*
  • Multi-Gig Connections: Break through the 1 Gbps bottleneck with a 2.5 GbE WAN/LAN port for ultra-fast internet access.△
  • Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.†
  • EasyMesh Compatible: Create a unified smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.§
  • Flexible Deployment and Installation: Supports both 802.3at Power over Ethernet (PoE) and DC power supplies with multiple installation options (ceiling mountable, wall mountable, and tabletop).
  • Enhanced Security: WPA3 encryptions, multi-SSID, and parental controls combined ensure personalized and safer online experiences.†
  • Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.
  • Remote Management: TAUC (TP-Link Aginet Unified Cloud, based on TR-369), and TR-069, TR-098, TR-181, TR-111, and TR-143 protocols are supported.
wifi6 icon

Fast. Stable.
Everywhere.

AX3000 Whole Home
Mesh WiFi 6 AP with PoE

HX510-PoE

2.5Ghz wifi Power over Ethernet
Multiple Installation Options
Ceiling
Mount
Wall
Mount
Tabletop
Multi-Gig
Connectivity
PoE/DC
Power Supply
Two Modes
in One
EasyMesh-
Compatible
Seamless Roaming

3 Gbps Dual-Band Speeds

2 + 2 Simultaneous Spatial Streams

Aginet Solution

End-to-End
Management Platform
TR-069/TR-369
Remote
Management

PoE-Powered with Flexible Mounting Options

HX510-PoE supports both PoE and DC power supplies, providing flexible setup and installation options to accommodate diverse deployment needs. It’s ideal for ceiling-mount, wall-mount, or tabletop placement. PoE delivers power and data through a single Ethernet cable, eliminating the need for additional power cabling.

Ceiling Mount
Wall Mount
Tabletop
Power over Ethernet
DC Power Supply
Power
Socket
PoE+
Switch
Data
Power
2× Ports Support
802.3at PoE
Power
Power
Socket

Multi-Gig Internet Connectivity

Break through the 1 Gbps bottleneck and take full advantage of your broadband plan with speeds up to 2.5 Gbps via a 2.5G WAN/LAN port. The gigabit LAN port serves as a robust wired backhaul to ensure stronger and more stable mesh networking and enhance network flexibility at the same time.△

2.5G
Multi-Gig Connectivity
① Multi-Gig Internet Access
② Gigabit Wired Connections

Dual-Band WiFi 6 up to
3.0 Gbps

Both the 2.4 GHz and 5 GHz bands have been upgraded to WiFi 6, delivering faster speeds, reduced lag, and higher capacity. Every application feels more fluid with drastically improved WiFi performance. Perfect for streaming, online gaming, and downloading.*

  • 5 GHz 2×2 Spatial Streams 2402 Mbps
  • 2.4 GHz 2×2 Spatial Streams 574 Mbps

  • Larger Capacity

  • Lower Latency

  • 1024-QAM

  • 160MHz Channel

  • Target Wake Time

Extensive WiFi Coverage

A high-performance omnidirectional antenna array and beamforming work together to maximize and adapt WiFi coverage to fit every home and concentrate signals to every device.

Beamforming
High-Performance
Antennas

Whole Home Coverage with Seamless Roaming

Empowered by EasyMesh technology, HX510-PoE works with other EasyMesh-compatible routers or mesh APs to deliver strong WiFi signals to every corner of your home for true seamless coverage. Want more coverage? Simply add another HX510-PoE wherever you want.‡

  • Whole Home Coverage

    Eliminate weak signal areas with WiFi coverage for your entire home

  • Seamless Roaming

    Stream flawlessly while on the move

  • One WiFi Name

    No more changing WiFi networks when you move around

  • Robust Backhaul

    Supports both wireless backhaul and Ethernet backhaul

  • Web Browsing

  • Smart Home Devices

  • IP Camera Streaming

  • High-speed Downloading


  • 8K Streaming

  • Online Gaming

  • 720p Streaming

  • 1080p Streaming

  • 4K Streaming

§Testing of multiple applications and devices is conducted in TP-Link labs with one unit. Actual results may vary.

More Connections,
Less Buffering

Connect more devices at once with WiFi 6 and OFDMA, offering more efficient performance without slowdowns.†

Connects up to
250+
devices§

§Testing of multiple wireless applications and devices is conducted in the TP-Link lab with one unit. Actual results may vary.

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

2-in-1 Router and Access Point

The versatile and multi-purpose HX510-PoE functions as either a router or access point. Choose the mode that best suits your needs for flexible wireless and wired networking.

Router Mode

Create a private wireless and wired network

Access Point Mode

Create WiFi access for your existing wired network

Easy Setup and Use

Set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your mesh network from a smartphone or tablet.

Effortless Management, Smarter Operations

Integrated with the TP-Link Aginet Unified Cloud (TAUC) platform, service providers can remotely manage, configure, and monitor devices at scale, anytime, anywhere. Real-time mesh WiFi diagnostics, comprehensive network health checks, dynamic service provisioning, zero-touch firmware updates, and proactive alerts all help streamline operations, cut costs, and enhance customer satisfaction.

Learn more about the TAUC solution

Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. More operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a more efficient service experience for home users.

TR-069/TR-369

Remote Management

TR-181 TR-111 TR-143
Remote Management

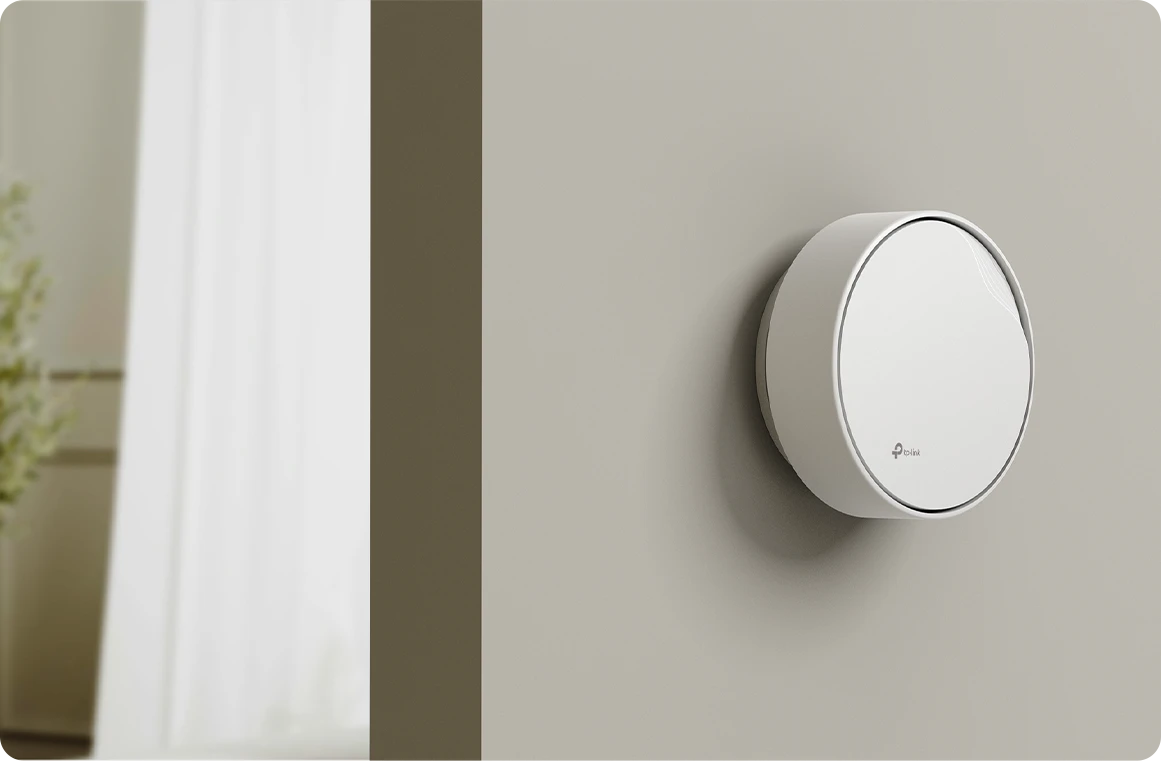

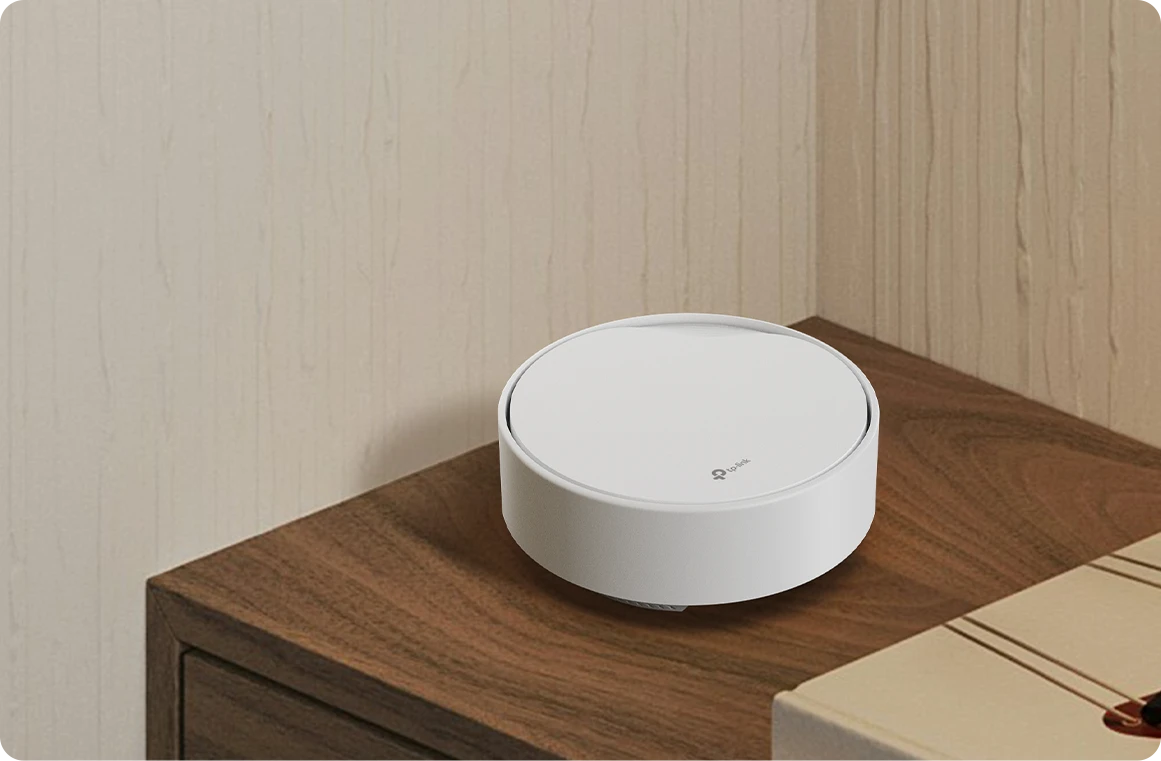

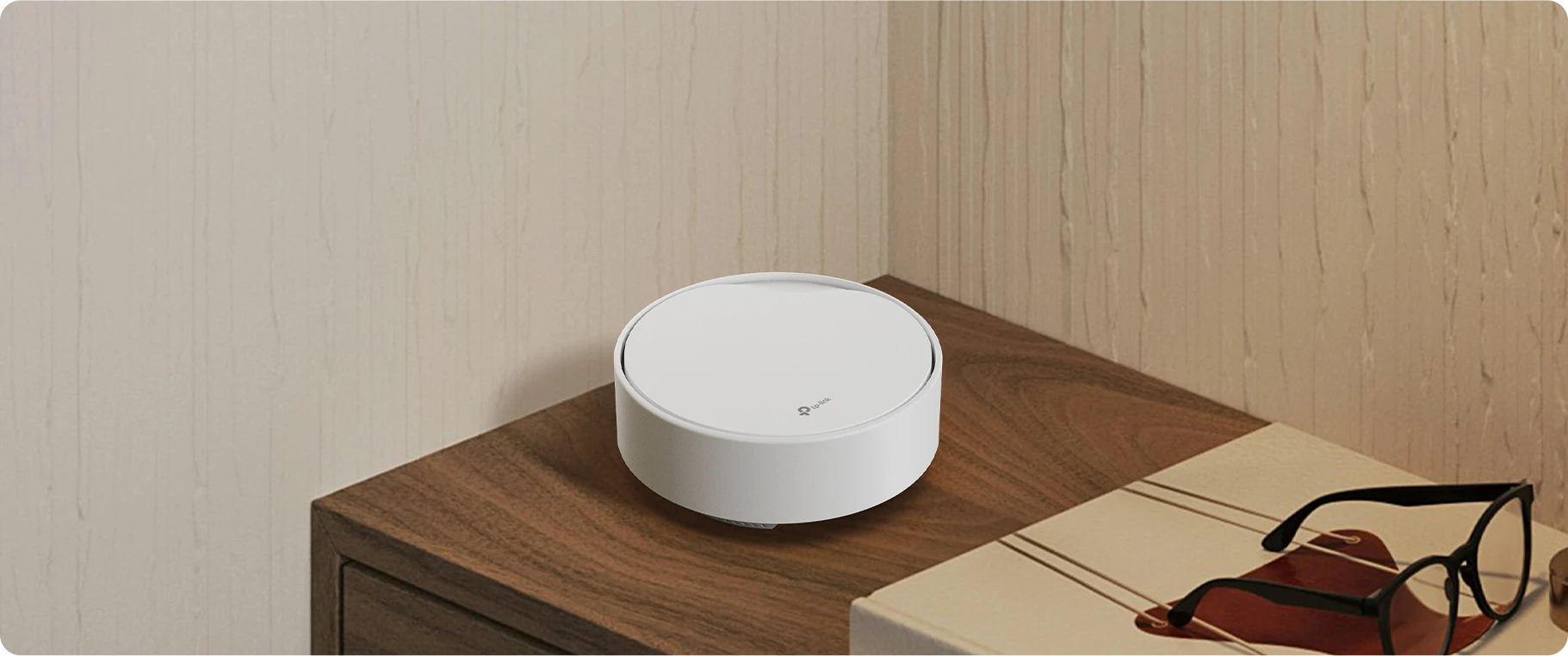

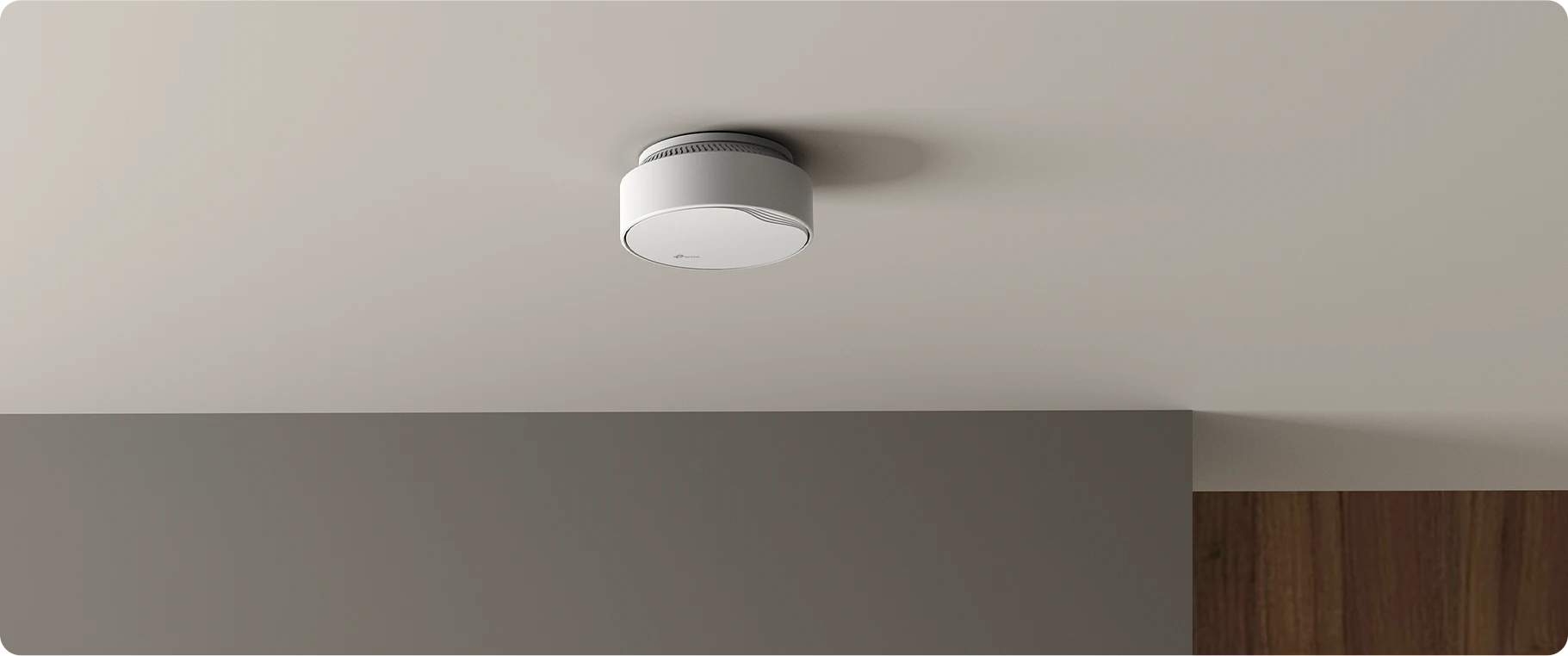

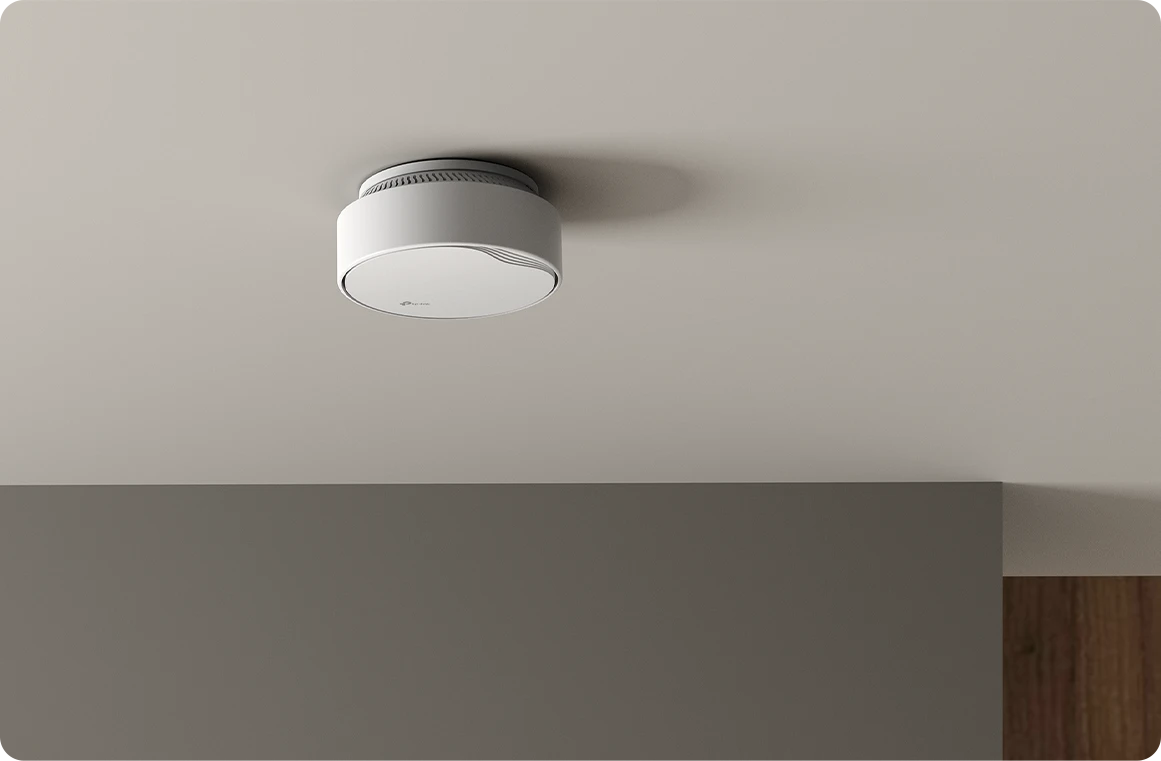

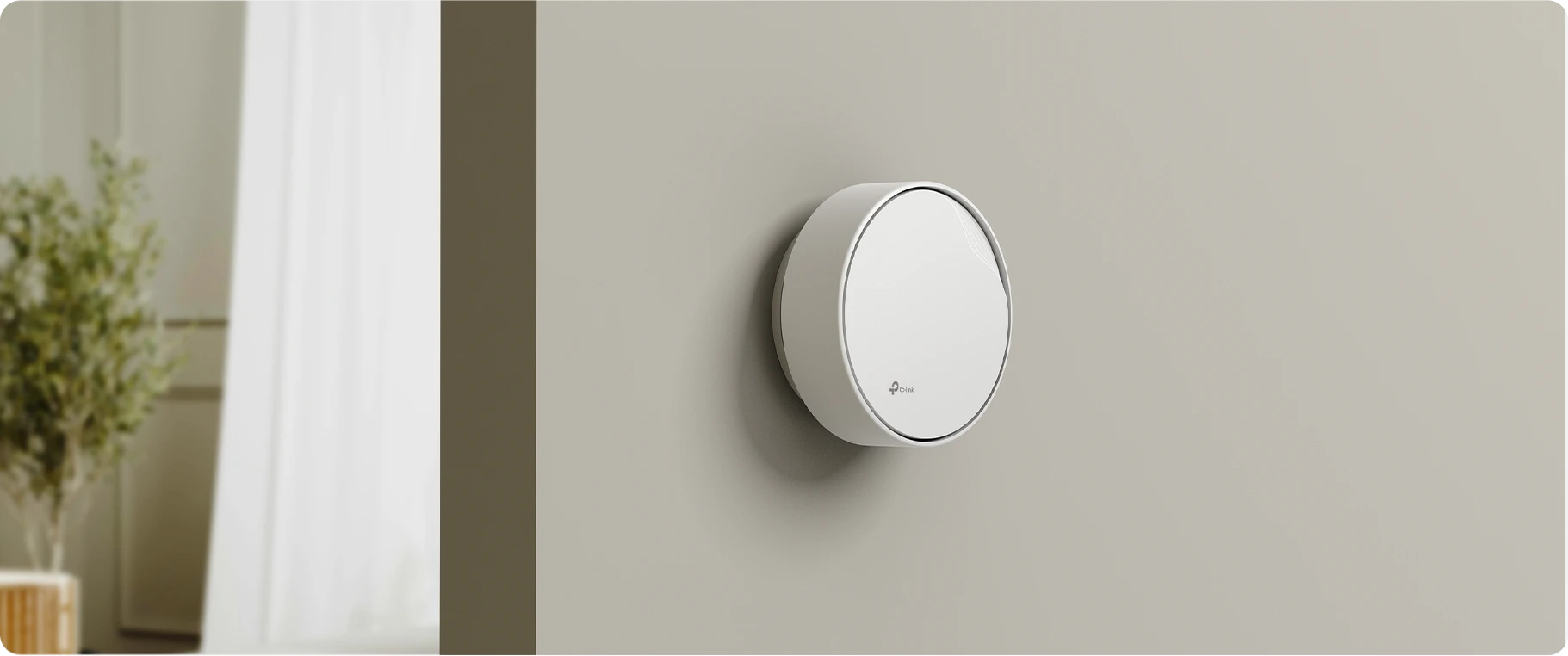

lifestyle-image-1 lifestyle-image-2 lifestyle-image-3
lifestyle-image-1 lifestyle-image-2 lifestyle-image-3

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

†Use of WiFi 6 (802.11ax), and other features including OFDMA, 1024-QAM, HE160, TWT, MU-MIMO, and WPA3 requires clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.

‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.

△Multi-gig or 2.5 Gbps internet speeds require compatible service plans and equipment.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

WIRELESS FEATURES
Transmission Power FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)

CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Frequency 2.4 GHz and 5 GHz
Signal Rate AX3000
5 GHz: Up to 2402 Mbps (HE160)
2.4 GHz: Up to 574 Mbps (HE40)
Wireless Security WPA/WPA2/WPA3-Personal
Wireless Standards Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Mesh Technology EasyMesh compatible, and support 802.11k/v/r
HARDWARE FEATURES
External Power Supply IEEE 802.3at PoE or 12V DC
Interface 1× 2.5 Gbps WAN/LAN Port
1× Gigabit LAN Port
(both support 802.3at PoE)

*Per Unit
Button Reset Button
Dimensions ( W x D x H ) 6.1 × 6.1 × 2.7 in
(154× 154 × 68.6 mm)
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE
Quality of Service WMM
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Management Features Local management: WebGUI, Aginet app (for end users)
Remote management: TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers
Aginet App for end users (need to log in wtih TP-Link ID and bind your device to it)
Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Advanced Features Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule, Wireless Statistics, Guest Network, Beamforming, MU-MIMO, Band Steering, Airtime Fairness
Protocols IPv4
IPv6
VPN PPTP, OpenVPN, IPSec
Working Modes Router Mode
Access Point Mode
OTHERS
Package Content HX510-PoE (1-Pack)
1× HX510-PoE Unit
1× RJ45 Ethernet Cable
1× Power Adapter
Ceiling/wall-mounting Kit
Quick Installation Guide
Certifications CE, FCC
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
