AC1200 Whole Home Mesh WiFi System

HC220-G5

  • Faster Connections: Speeds up to 1200 Mbps—867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.*
  • Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger WiFi signal.
  • One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
  • EasyMesh Compatible: Provides whole home WiFi coverage with standard mesh technology.
  • Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.
  • Remote Management: TAUC cloud management, TR-098, TR-181, TR-111, and TR-143 are supported.

Fast. Stable. Everywhere.

AC1200 Whole Home Mesh WiFi System

HC220-G5

MU-MIMO

Whole Home Coverage

Parental Controls

Seamless Roaming

Two Modes in One

EasyMesh Compatible

Refined Password Security

Aginet Solution

Connect More Devices

Whole Home Coverage

Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.**

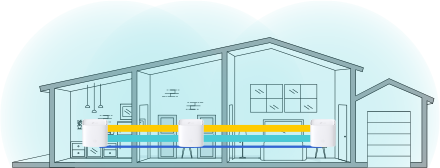

  • Ranch-Style Home
    Ranch-Style Home

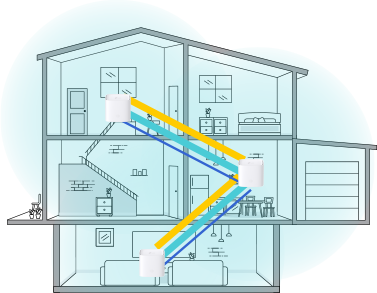

  • Multi-Story Home
    Multi-Story Home

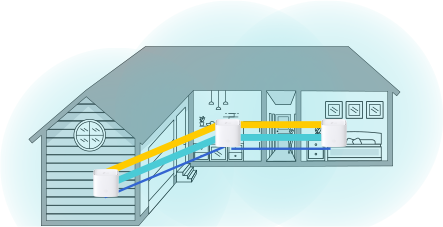

  • L-Shaped Home
    L-Shaped Home
2.4 GHz wireless connection 5 GHz wireless connection Optional Gigabit Ethernet Backhaul

Seamless Roaming with One Wi-Fi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.***

  • Mesh System

  • Traditional Router with Extender

Stable Connections, No More Buffering

HC220-G5 provides lag-free WiFi connections. Fast networking experience are guaranteed for all devices, and all applications from surfing, downloading, streaming to gaming.

Dual Band Speeds up to 1200 Mbps

5 GHz 867 Mbps
2.4 GHz 300 Mbps

Web Browsing

720P Streaming

Smart Home Devices

1080P Streaming

IP Camera Streaming

4K Streaming

High-speed Downloading

2-in-1 Router and
Access Point Modes

Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

  • Router

    Instantly generate a private wireless network.

  • Access Point

    Create Wi-Fi access for any existing wired network.

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against brute-force attacks

  • Multi-SSID

    Create guest networks for visitors and keep your main network secure

  • Parental Controls

    Block inappropriate content and restrict time spent online

Easy to Set Up and Use

You can set up your device in minutes, whether you prefer
the intuitive Aginet app or the powerful web interface. The
Aginet app allows you to manage network settings from
your smart phone or tablet.

QRcode
Apple Store
Google Store

Support TR-069 Remote Management

ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

TR-069

Remote Management

TR-181 TR-111 TR-143

TR-069

Aginet Solution:
End-to-End Management System for ISPs

Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.

Learn More about Aginet Solution

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Some features will require two or more units.

***Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v/r protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v/r and may require additional setup. Performance may vary depending on the client device.

HARDWARE FEATURES
External Power Supply 12 V ⎓ 1.0 A
Interface 3× Gigabit Ports

*Per Unit
1 Port supports WAN/LAN auto-sensing
Button Reset Button
WPS Button
Dimensions ( W x D x H ) 3.9 x 3.9 x 3.5 in
(100 x 100 x 89.5 mm)
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
Wireless Security WPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Wireless Standards Wi-Fi 5
IEEE 802.11 a/n/ac 5 GHz
IEEE 802.11 b/g/n 2.4 GHz
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Transmission Power FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE
Quality of Service WMM
Firewall Security SPI Firewall
Management Features Local Management, TAUC Cloud Management, TR-069(TR-098/TR-181), TR-111, TR-143
Advanced Features Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
Protocols IPv4
IPv6
Working Modes Router Mode
Access Point Mode
OTHERS
Package Content HC220-G5 (2-pack)
2 HC220-G5 Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide

HC220-G5 (1-pack)
1 HC220-G5 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
Certifications CE, FCC, Wi-Fi CERTIFIED™, Wi-Fi CERTIFIED EasyMesh™
Environment Operating Temperature: 0℃–40℃ (32℉ –104℉)
Storage Temperature: -40℃–60℃ (-40℉ –140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Smartphone/Tablet Requirements Android 4.4 or later
iOS 9.0 or later
