BE11000 Whole Home Mesh WiFi 7 AP

HB615

  • 11 Gbps Tri-Band WiFi 7: 6-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
  • 5G Multi-Gig Connectivity: Unlock speeds up to 5 Gbps and future-proof your home network for the ultra-fast internet era.△
  • Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.†
  • Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.†
  • Works on the 6 GHz Band: Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
  • Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.†
  • Enhanced Security: WPA3 encryption, multi-SSID, and parental controls provide a personalized and safer online experience.†
  • Easy Setup and Use: Set up and manageyour mesh network in minutes with the powerful Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Super Mesh-Powered WiFi 7

BE11000 Whole Home Mesh WiFi 7 AP

HB615

wifi7

11 Gbps Tri-Band Speeds
6 Simultaneous Spatial Streams

320 MHz
Channels

4K-QAM

Multi-Link Operation

EasyMesh-Compatible

Seamless Roaming

5G
Multi-Gig Connectivity

Parental Controls

Enhanced Security

Aginet Solution
End-to-End
Management Platform

TR-069/TR-369 Remote Management

Wi-Fi 7 — Revolutionize Your WiFi Experience

WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.†

  • Extremely High Throughput

    tag-wifi7-black
  • Wi-Fi 6
  • Wi-Fi 5

  • 320 MHz

    Doubles the bandwidth, doubles the speed

  • 4K-QAM

    Packs 120% data for higher speeds

  • Multi-Link Operation

    Increases throughput, reduces latency, and improves reliability

  • Multi-RUs

    Make full use of every resource for maximum efficiency

11 Gbps Tri-Band WiFi Speeds

Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands enhance WiFi speeds and efficiency significantly, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.*

6 GHz
2×2 Spatial Streams
5760 Mbps
6 GHz
2×2 Spatial Streams
4320 Mbps
2.4 GHz
2×2 Spatial Streams
688 Mbps

Multi-Gig Internet Connections

Unlock your broadband plan with speeds of up to 5 Gbps, enabling high-speed home networking through a 5 GbE WAN/LAN port. The 5 GbE LAN and 2.5 GbE LAN ports provide robust backhauls, ensuring a stronger and more stable mesh network while simultaneously enhancing overall flexibility. Additionally, the USB port allows for the high-speed sharing of files, music, and videos within your network.△

5 Gbps Connectivity
Fast Media Sharing
① Multi-Gig Internet Access
② Multi-Gig Wired Connections
③ High-Speed Media Sharing

Extensive WiFi Coverage

High-performance antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

m-icon Beamforming

4× High-Gain Antennas

The optimally positioned antenna array ensures balanced WiFi coverage with high isolation and less interference

Whole Home Coverage Backed by Robust Backhual

Empowered by EasyMesh technology, HB615 delivers strong WiFi signals to every corner of your home. Wireless backhaul or Ethernet backhaul links each unit, providing faster network speeds and truly seamless coverage.Want more coverage? Simply add another HB615 unit wherever you want.‡

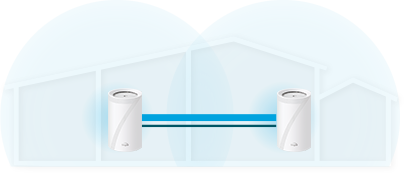

  • Ranch-Style Home
    Ranch-Style Home

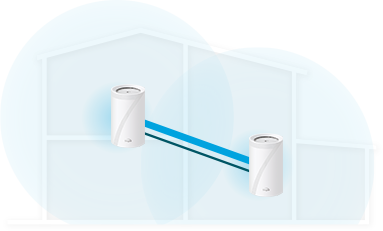

  • Multi-Story Home
    Multi-Story Home

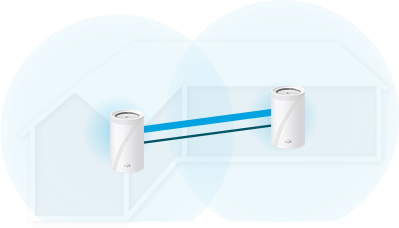

  • L-Shaped Home
    L-Shaped Home

Ethernet Backhaul

Up to 5 Gbps connections

Wireless Backhaul

Across 2.4 GHz, 5 GHz, and 6 GHz

Seamless Roaming with One WiFi Name

All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience. ‡

  • Mesh System

  • Traditional Router with Extender

  • Web Browsing

  • Smart Home Devices

  • IP Camera Streaming

  • High-speed Downloading


  • Online Gaming

  • 720p Streaming

  • 1080p Streaming

  • 4K Streaming

  • 8K Streaming

*Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.

More Connections, No More Buffering

Enhanced by WiFi 7 and featuring OFDMA, Multi-link operation (MLO), and MU-MIMO, you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.†

Connects
200+
devices*

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against brute-force attacks†

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

2-in-1 Router and
Access Point

The versatile and multi-purpose HB615 features options to serve as either a router or access point. Select the mode that suits your requirements for adaptable wireless and wired networking.

  • Router Mode

    Create a private wireless and wired network

  • Access Point Mode

    Create WiFi access for your existing wired network

Easy to Set Up and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

agient app qrcode
Apple Store
Google Store

Effortless Management, Smarter Operations

Integrated with the TP-Link Aginet Unified Cloud (TAUC) platform, service providers can remotely manage, configure, and monitor devices at scale—anytime, anywhere. Real-time mesh WiFi diagnostics, comprehensive network health check, dynamic service provisioning, zero-touch firmware updates, and proactive alerts all help streamline operations, cut costs, and enhance customer satisfaction.

Learn more about the TAUC solution>

Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. More operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a more efficient service experience for home users.

TR-069/TR-369

Remote Management

TR-181 TR-111 TR-143

TR-069/TR-369

lifestyle-image-2 lifestyle-image-1
lifestyle-image-2 lifestyle-image-1

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

†Use of WiFi 7 (802.11be), WiFi 6E/WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.

‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.

△5 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN port will operate as either a WAN or LAN port. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

HARDWARE FEATURES
External Power Supply 12V/3.3A
Interface 1× 5 GbE WAN/LAN Port
1× 5 GbE LAN Port
1× 2.5 GbE LAN Port
1× USB 2.0 Port

*Per Unit
Button WPS Button
Reset Button
Dimensions ( W x D x H ) 4.23 × 4.23 × 6.93 in
(107.5 × 107.5 × 176 mm)
WIRELESS FEATURES
Frequency 2.4 GHz, 5 GHz, and 6 GHz
Signal Rate BE11000
6 GHz: Up to 5760 Mbps (EHT320)
5 GHz: Up to 4320 Mbps (EHT240)
2.4 GHz: Up to 688 Mbps (EHT40)*
Wireless Security WPA/WPA2/WPA3-Personal
Wireless Standards IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Transmission Power FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)
<30 dBm(6 GHz)

CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
<23 dBm (6 GHz)
Multi-SSID 2× 6 GHz Multi-SSID
2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Mesh Technology EasyMesh compatible and supports 802.11k/v/r
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Quality of Service WMM
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management:
TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providers
Aginet App for end users (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Advanced Features Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS Color
QoS (Quality of Service), Port Forwarding, CWMP
Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic
Protocols IPv4
IPv6
VPN PPTP, OpenVPN, IPSec
Working Modes Router Mode
Access Point Mode
OTHERS
Package Content HB615 (1-Pack)
1× HB615 Unit
1× Power Adapter
1× RJ45 Ethernet Cable
1× Quick Installation Guide
Certifications CE, FCC
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
