AX3000 Dual-Band WiFi 6 XPON Router

XX530

  • Dual-Band WiFi 6: Enjoy smooth streaming, gaming, and fast downloading all at the same time with WiFi speeds up to 3 Gbps across two bands.*
  • XPON Dual Modes: Supports GPON and EPON dual modes for flexible fiber internet access.
  • Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.**
  • EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.†
  • Gigabit Wired Connectivity: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.**
  • Easy Setup and Use: Simplifies network and WiFi control and management via the powerful Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Next Wave of WiFi 6 for Upgraded Home Connectivity

AX3000 Dual-Band WiFi 6 XPON Router

XX530 wifi6 icon

3 Gbps Dual-Band Speeds

2+2 Simultaneous Spatial Streams

GPON + EPON Dual Mode

Gigabit Connectivity

TR-369/TR-069/OMCI Remote Management

Aginet Solution

End-to-End Management Platform

EasyMesh- Compatible

MU-MIMO

Parental Controls

Enhanced Security

Dual-Band WiFi 6 Up to 3.0 Gbps

WiFi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the WiFi 6 generation—perfect for 4K/8K streaming, online gaming, and fast downloading.*

  • 5 GHz

    2×2 Spatial Streams

    2402 Mbps

  • 2.4 GHz

    2×2 Spatial Streams

    574 Mbps

  • Larger Capacity

  • Lower Latency

  • 1024-QAM

  • 160MHz Channel

  • Target Wake Time

More Connections at High Speed

Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.**

OFDMA

OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.

MU-MIMO

Simultaneously transfers data to multiple devices for 2× faster performance.

  • Connects

    120+

    devices§

§Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.

Extensive WiFi Coverage

High-performance antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Beamforming
Other Router without Beamforming
2× External Dual-Band Antennas + 1× Extra 5G Internal Antenna
XX530

Smart Mesh WiFi with Greater Flexibility

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.†

  • Whole Home Coverage

    Eliminate weak signal areas with WiFi coverage for your entire home

  • Seamless Roaming

    Uninterrupted streaming when moving around your home

  • One WiFi Name

    No more switching WiFi network names when you walk around

  • Robust Backhaul

    Supports both wireless backhaul and Ethernet backhaul

  • EasyMesh Routers

  • Traditional Router with Extender

Gig+ Fiber Access with Gigabit Wired Connectivity

The XX530 features a dual-mode GPON + EPON PON port that provides up to 2.5 Gbps internet access through GPON for high-speed home networking, while EPON mode enhances flexibility. Its Gigabit Ethernet WAN/LAN port acts as a backup for a modem or switch via Ethernet cabling, and the Gigabit LAN ports deliver ultrafast, stable wired connections for PCs, game consoles, and more.‡

Scenario 1: Fiber Access

GPON up to 2.488 Gbps Downlink/1.244 Gbps Uplink EPON up to 1.25 Gbps Downlink/Uplink

Scenario 2: Ethernet Access

Up to 1 Gbps Downlink/Uplink

IPTV

Modem/Switch

Ethernet Cable

Game Console

Computer

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

Easy to Set Up and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

QRcode
Apple Store Google Store

Centralized Remote Management

Service providers can remotely configure and manage devices through their ACS (Auto-Configuration Server, based on TR-369/069) system or via the OLT (Optical Line Terminal) using the OMCI (ONU Management Control Interface) protocol. More operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a more efficient service experience for home users.

ACS
OSS/BSS
Service Servers
TR-369/TR-069
OLT
TR-369/TR-069
OMCI

Aginet Solution: End-to-End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn More about the Aginet Solution

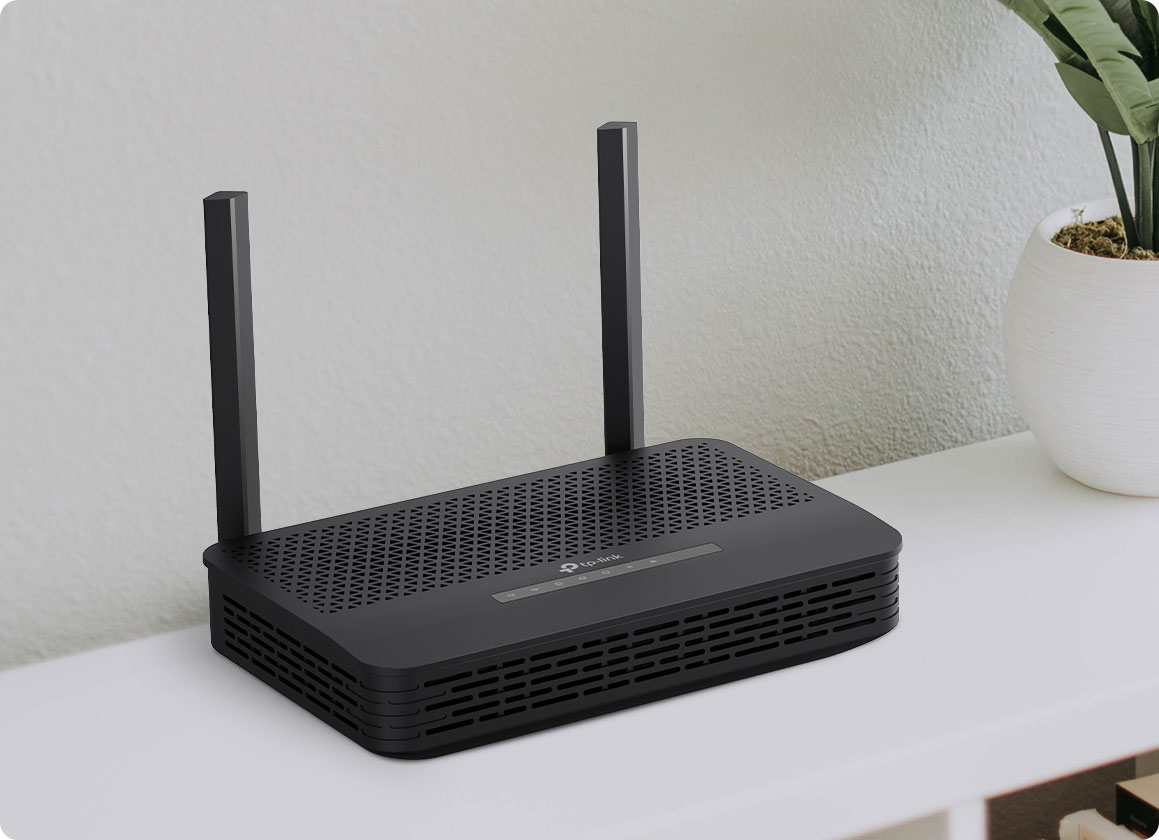

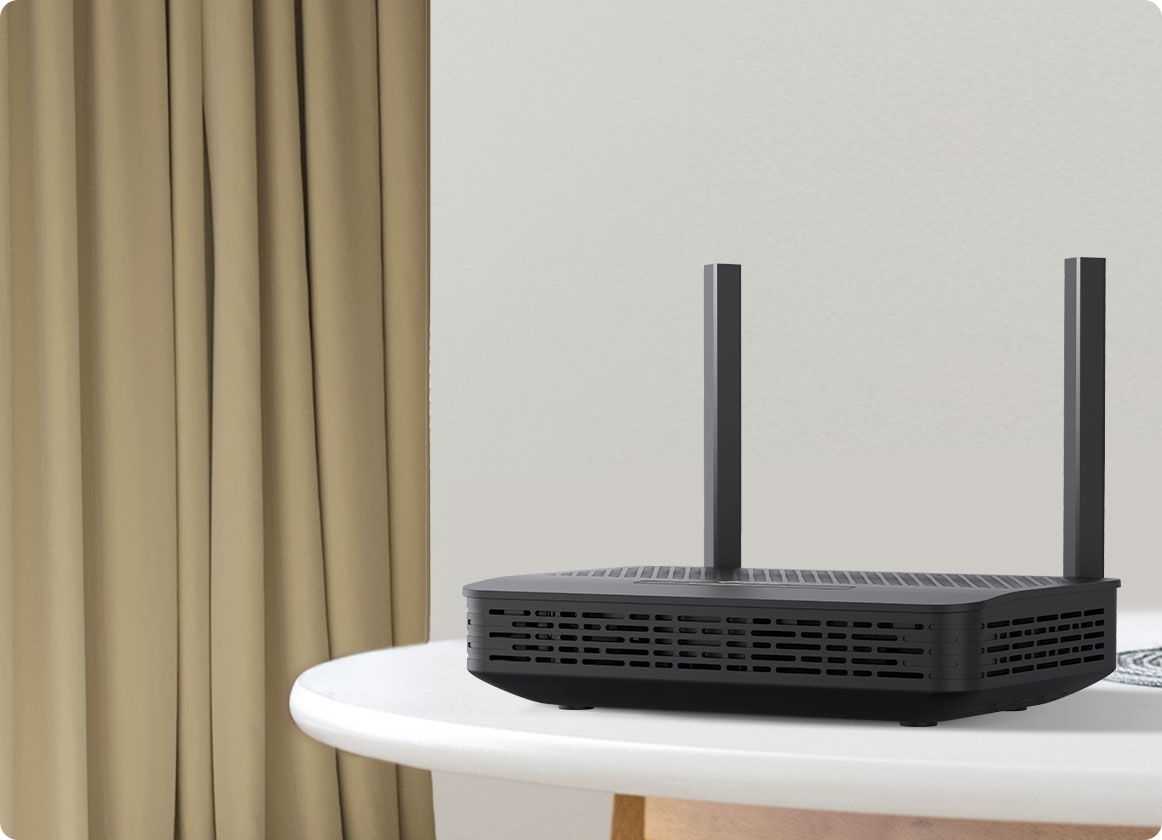

lifestyle-image-1 lifestyle-image-2

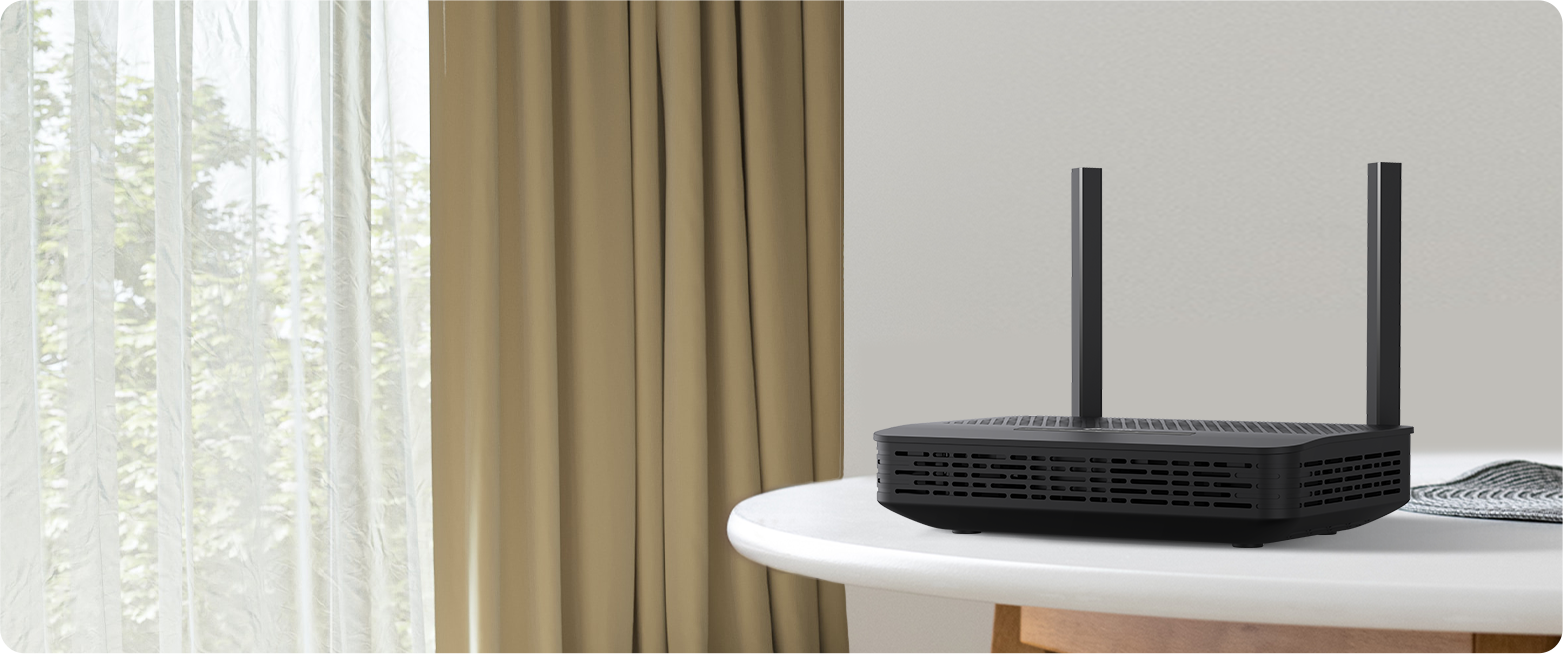

lifestyle-image-1 lifestyle-image-2

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of Wi-Fi 6 (802.11ax), and features including OFDMA, DL/UL MU-MIMO, 1024-QAM, HE160, and WPA3 requires clients to also support the corresponding features. Not all 160 MHz channels may be available in some regions/countries due to regulatory restrictions.

†A mesh network requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It functions solely as a controller and supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v/r protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v/r and may require additional setup. Performance may vary depending on the client device.

‡Multi-gig or 1000 Mbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

HARDWARE FEATURES
External Power Supply 12V/1.5A
Interface 1× PON Port
1× Gigabit Ethernet WAN/LAN Port
3× Gigabit Ethernet LAN Ports
Button WPS/Wi-Fi Button
Reset Button
Power On/Off Button
Antenna 2× External Dual-Band Antennas + 1× Internal 5G Antenna
Dimensions ( W x D x H ) 7.99 × 5.49 × 1.8 in (203 × 139.4 × 45.7 mm)
Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)‡
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)‡
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate AX3000
5 GHz: Up to 2402 Mbps (HE160)
2.4 GHz: Up to 574 Mbps (HE40)*
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 Encryptions
Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology EasyMesh Compatible, and support 802.11k/v/r
SOFTWARE FEATURES
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Quality of Service Hardware QoS, Flow Classification
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providers
Aginet APP for end user (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death"
Advanced Features Parental Controls, Guest Network, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Protocols IPv4, IPv6
VPN Server PPTP VPN, IPSec VPN , OpenVPN
OTHERS
Package Content XPON Router XX530
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
