AX1800 Wireless XPON Router with CATV

XX231v

  • 1.8 Gbps Dual-Band Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds up to 1.8 Gbps across two bands.*
  • Boosted Coverage: Four high-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.**
  • EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.†
  • XPON Dual Modes: Supports GPON and EPON dual modes with automatic switch for flexible fiber internet access.
  • Versatile Internet Access: Supports direct fiber access, Ethernet connections via modem, and 3G/4G internet services through the USB port.
  • CATV + IPTV Access: Convenient television access with stable and optimized performance.
  • VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
  • Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.
  • Enhanced Security: WPA3 encryption, multi-SSID, and parental controls offer personalized and safer online experiences.**
  • Easy Setup and Use: Simplifies network and WiFi control and management via the robust Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Supercharge Your Network and TV with Fiber Access

AX1800 Wireless XPON Router with CATV

XX231v
Wi-Fi 6 CATV

1.8 Gbps Dual-Band Speeds

2+2 Simultaneous Spatial Streams

GPON + EPON Dual Mode

Uniform Gigbit Ports

3G/4G Backup

TR-369/TR-069/OMCI Remote Management

Aginet Solution

End-to-End
Management Platform

EasyMesh- Compatible

MU-MIMO

Parental Controls

Enhanced Security

VoIP Calls

Media Sharing

CATV Access Ready

Dual-Band WiFi 6 Up to 1.8 Gbps

WiFi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the WiFi 6 generation—perfect for 4K streaming, online gaming, and fast downloading.*

  • 5 GHz

    1201 Mbps

  • 2.4 GHz

    574 Mbps

  • Larger Capacity

  • Lower Latency

  • 1024-QAM

  • Target Wake Time

More Connections at High Speed

Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.**

OFDMA

OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.

MU-MIMO

Simultaneously transfers data to multiple devices for 2× faster performance.

  • OFDMA

  • MU-MIMO

§Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.

Extensive WiFi Coverage

High-performance dual-band antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Beamforming
Other Router without Beamforming

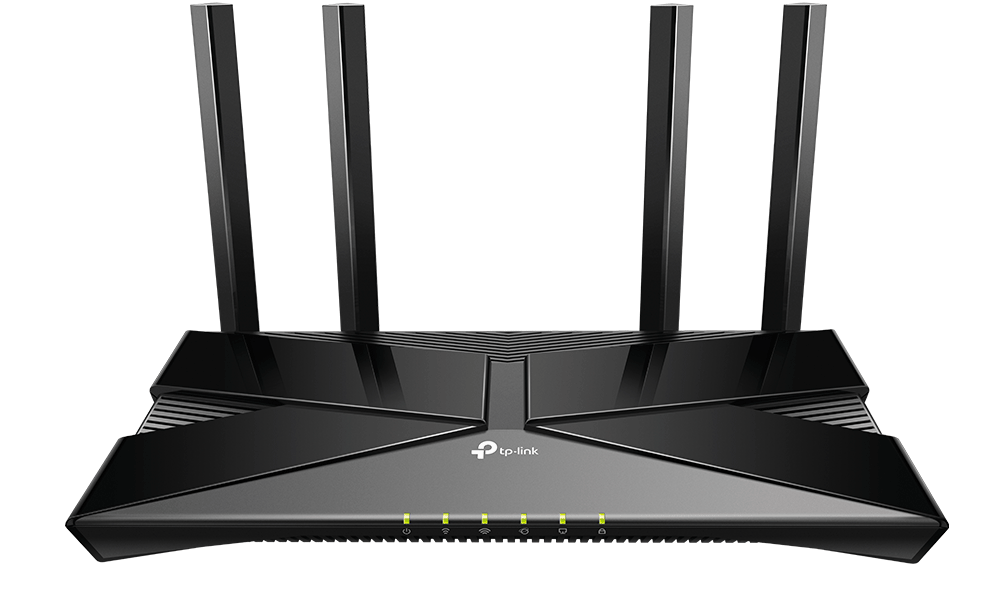

4× High-Performance Antennas
XX231v

Smart Mesh WiFi with Greater Flexibility

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.†

  • Whole Home Coverage

    Eliminate weak signal areas with WiFi coverage for your entire home

  • Seamless Roaming

    Uninterrupted streaming when moving around your home

  • One WiFi Name

    No more switching WiFi network names when you walk around

  • Robust Backhaul

    Supports both wireless backhaul and Ethernet backhaul

  • EasyMesh Routers

  • Traditional Router with Extender

All-in-One Connectivity for Every Need

All-in-One Connectivity for Every Need

Versatile Internet Access

With multiple connection ports, XX231v provides you with a variety of internet connection options. The PON port delivers up to 2.5 Gbps internet access, catering to your high-speed home. The Ethernet WAN/LAN port supports wired connections to modems or switches via Ethernet cabling. A 3G/4G dongle can be attached to the USB port as a backup to always stay connected.‡

Scenario 1: Fiber Access

GPON up to 2.488 Gbps Downlink/1.244 Gbps Uplink

EPON up to 1.25 Gbps Downlink/Uplink

Scenario 2: Ethernet Access

Up to 1 Gbps Downlink/Uplink

Scenario 3: 3G/4G Backup

3G/4G Dongle

Modem/Switch

Ethernet Cable

All-in-One Connectivity for Every Need

Cable TV Access Ready

Built with a CATV port, you can always enjoy stable and reliable high-definition (HD) TV programs by directly connecting your cable TV to the router.

All-in-One Connectivity for Every Need

Convenient VoIP Calls

XX231v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

  • Analog Phone

  • VoIP Calls

  • Voicemail Storage§

§This feature becomes available once you inserted a USB storage device to the USB port.

All-in-One Connectivity for Every Need

Gigabit Connections and Media Sharing

The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the Gigabit Ethernet LAN ports (including the WAN/LAN port) for reliable wired connections. The USB port can be used to share files, music, and videos within your network at high speeds.‡

IPTV

Game Console

Computer

Printer

Hard Disk

Flash Drive

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

Easy to Set Up and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

QRcode
Apple Store
Google Store

Centralized Remote Management

Service providers can remotely configure and manage devices through their ACS (Auto-Configuration Server, based on TR-369/069) system or via the OLT (Optical Line Terminal) using the OMCI (ONU Management Control Interface) protocol. High-level operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a smoother and more efficient service experience for home users.

ACS
OSS/BSS
Service Servers
TR-369/TR-069
OLT
TR-369/TR-069
OMCI
TR-369/TR-069

Aginet Solution:
End-to-End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn More about the Aginet Solution

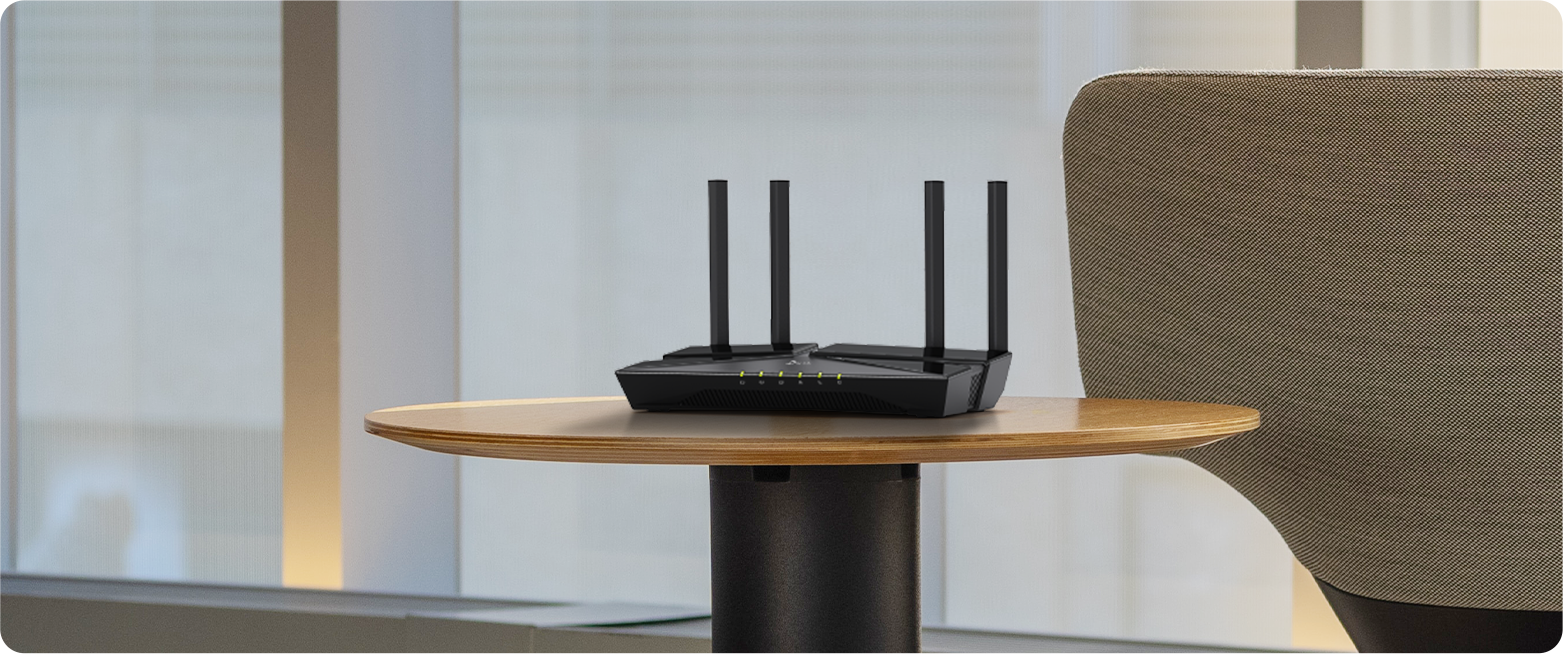

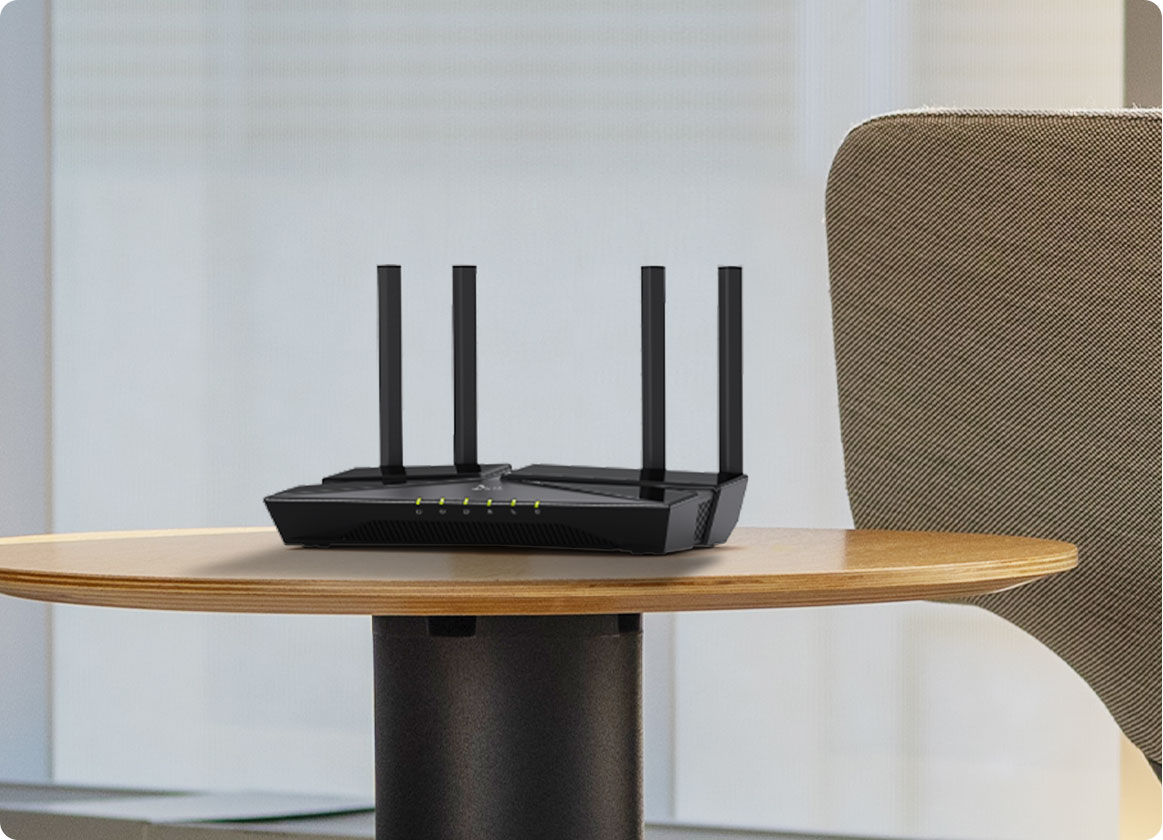

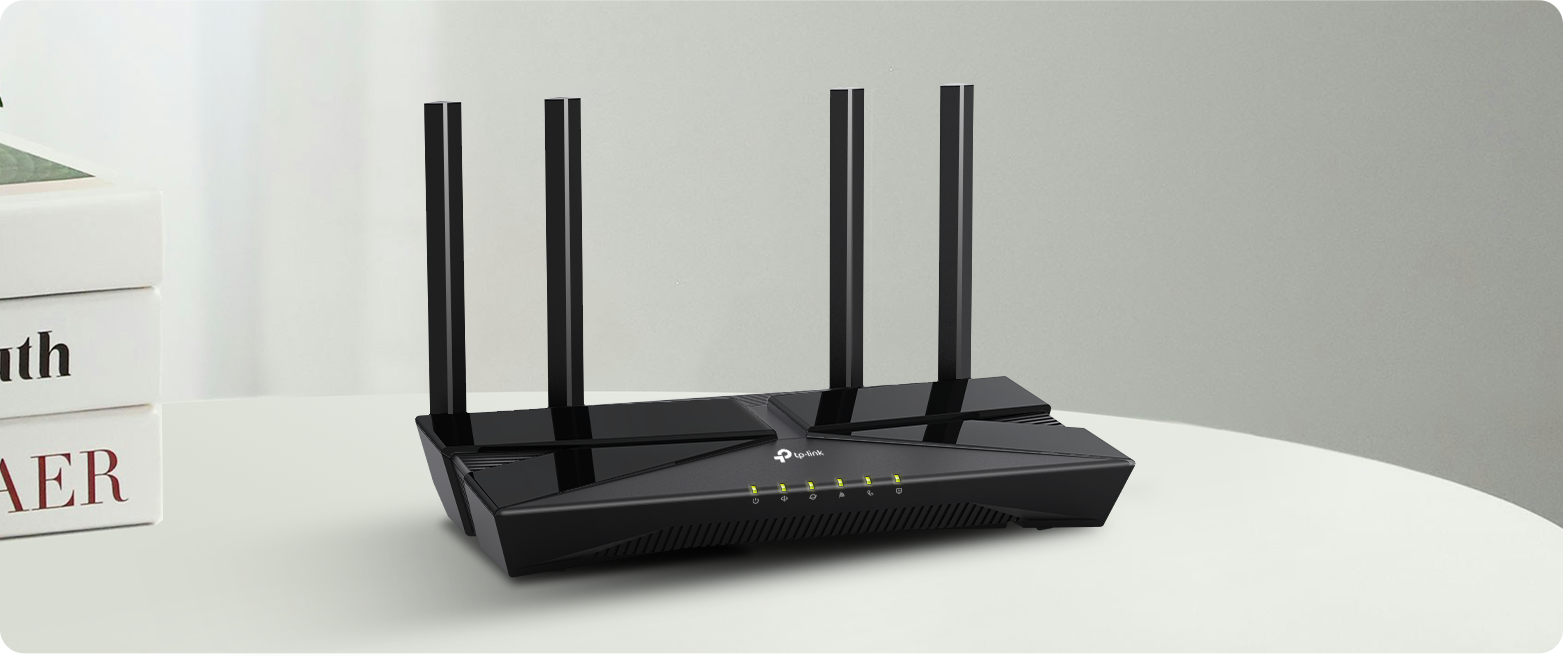

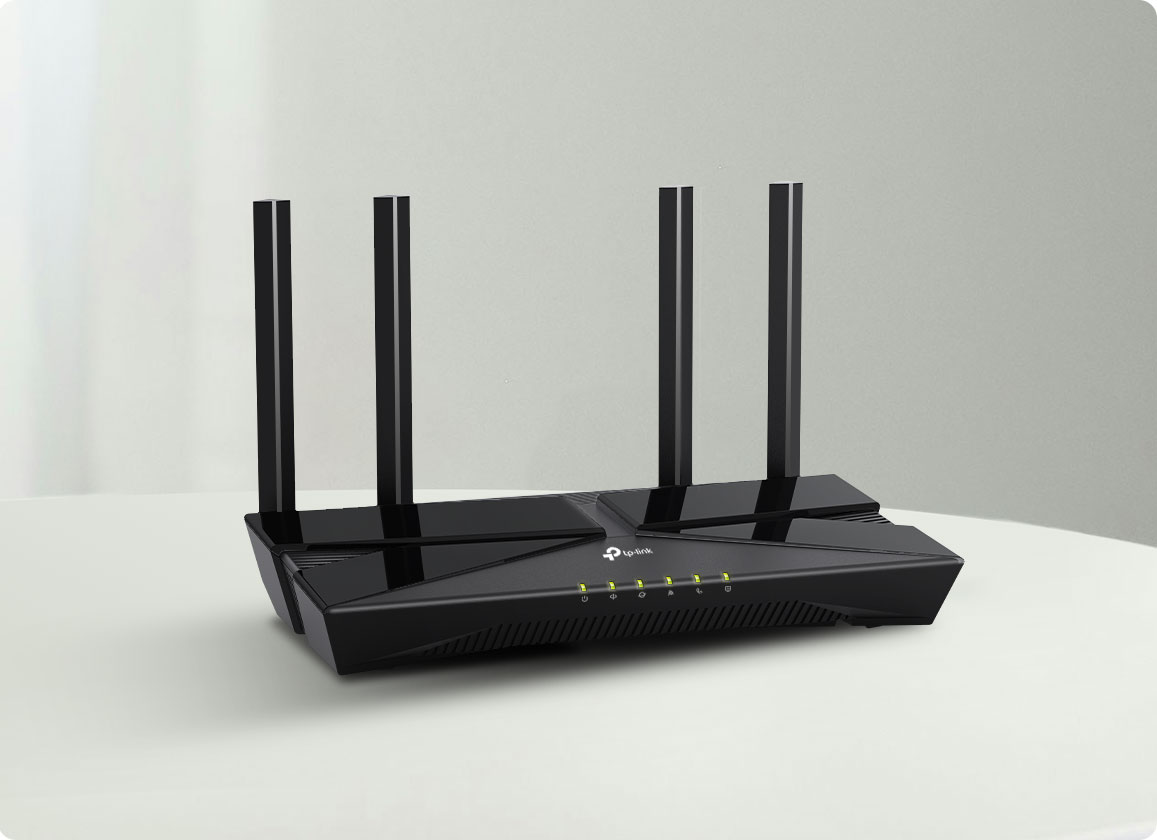

lifestyle-image-1 lifestyle-image-2
lifestyle-image-1 lifestyle-image-2

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of WiFi 6 (802.11ax) and features including OFDMA, DL/UL MU-MIMO, 1024-QAM, and WPA3 requires clients to also support the corresponding features.

†A mesh network requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It functions solely as a controller and supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v/r protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v/r and may require additional setup. Performance may vary depending on the client device.

‡Multi-gig or 1000 Mbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

HARDWARE FEATURES
External Power Supply 12V/1.5A
Interface 1× PON Port
1× 10/100/1000 Mbps WAN/LAN Port
3× 10/100/1000 Mbps LAN Ports
1× CATV Port
1× Phone Port
1× USB 2.0 Port
Button WPS/Wi-Fi Button
Reset Button
Power On/Off Button
Antenna 4× External Antennas
Dimensions ( W x D x H ) 10.2 × 5.3 × 1.9 in (260.2 × 135.0 × 49 mm)
Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)‡
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)‡
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate AX1800
5 GHz: Up to 1201 Mbps (HE80)
2.4 GHz: Up to 574 Mbps (HE40)*
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 Encryptions
Wireless Standards IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology EasyMesh compatible, and support 802.11k/v/r
SOFTWARE FEATURES
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Quality of Service Hardware QoS, Flow Classification
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providers
Aginet APP for end user (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death"
Advanced Features Parental Controls, Guest Network, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Protocols IPv4, IPv6
VPN Server PPTP VPN, IPSec VPN , OpenVPN
OTHERS
Package Content XPON Router XX231v
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
