300 Mbps Wireless N Gigabit XPON Router
XN020-G3 V3
- High Speed WiFi: Up to 300 Mbps WiFi speeds on the 2.4 GHz band.*
- XPON Dual Modes: Supports both GPON and EPON dual modes with automatic switching for flexible fiber internet access.
- Gigabit Wired Connectivity: One Gigabit Ethernet LAN port offers fast wired internet access.
- Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- Enhanced Security: Multi-SSID and parental controls provide personalized and safer online experiences.

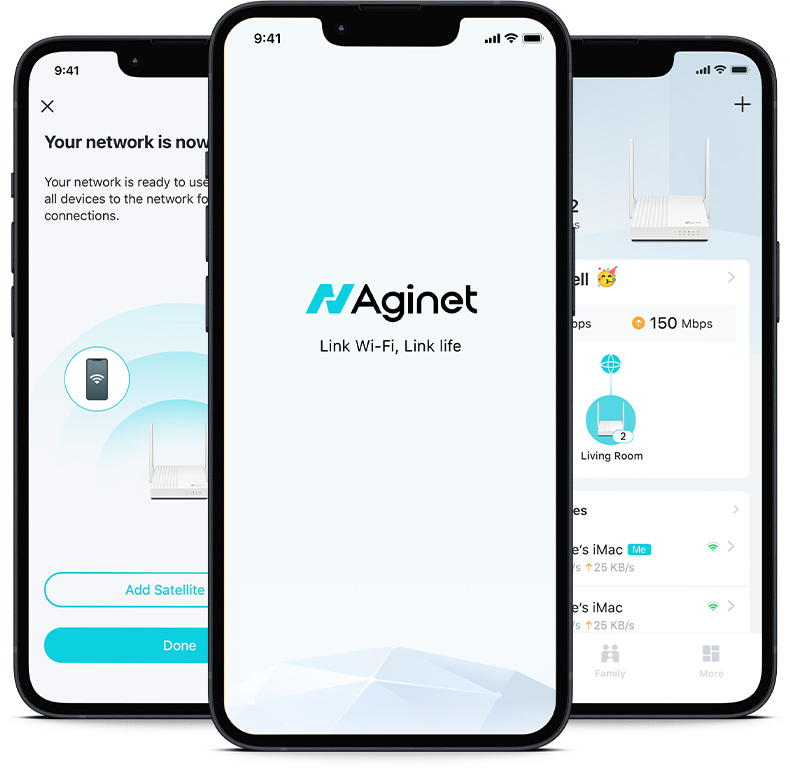

- Easy Setup and Use: Simplifies network and WiFi control and management via the robust Aginet app.
- Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.
Upgrade Your Home
Entertainment300 Mbps Wireless N Gigabit XPON Router
XN020-G3
300 Mbps WiFi Speeds
2x2 Simultaneous Spatial StreamsMulti-SSID
Parental
ControlsGPON + EPON
Fiber AccessGigabit Wired
ConnectivityAginet Solution
End-to-End
Management PlatformTR-069/OMCI

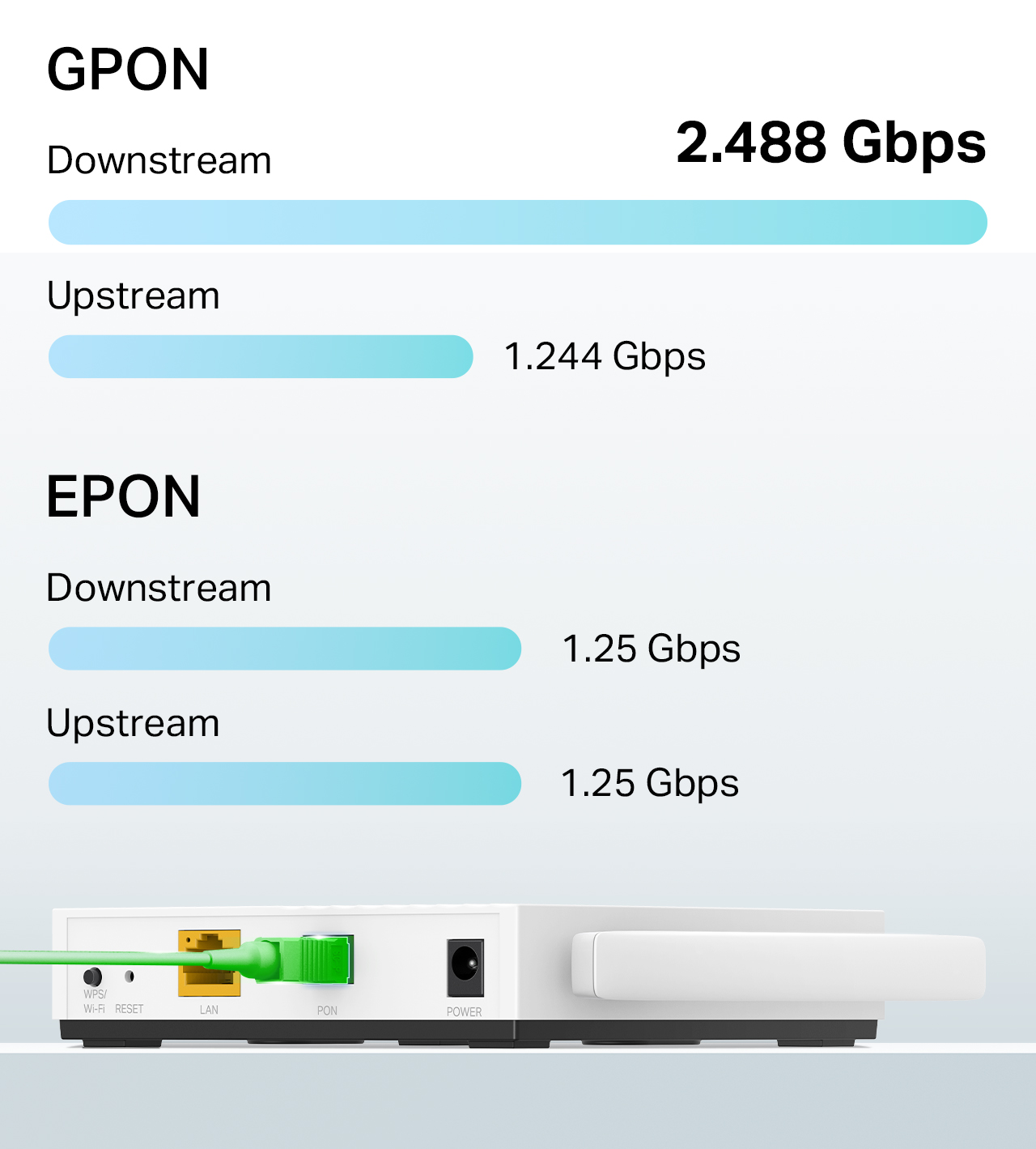

Remote ManagementGig+ Fiber Access with Gigabit
Wired ConnectivityEquipped with a GPON + EPON dual-mode PON port, XN020-G3 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility. The Gigabit Ethernet LAN port provides your PCs, game consoles, and more with ultrafast and stable wired networking.†
WiFi Speeds up to 300 Mbps
With 2T2R MIMO technology, XN020-G3 enables you to connect multiple devices and stream at speeds of up to 300 Mbps on the
2.4 GHz band, making it ideal for both bandwidth-intensive applications and everyday simple tasks.*

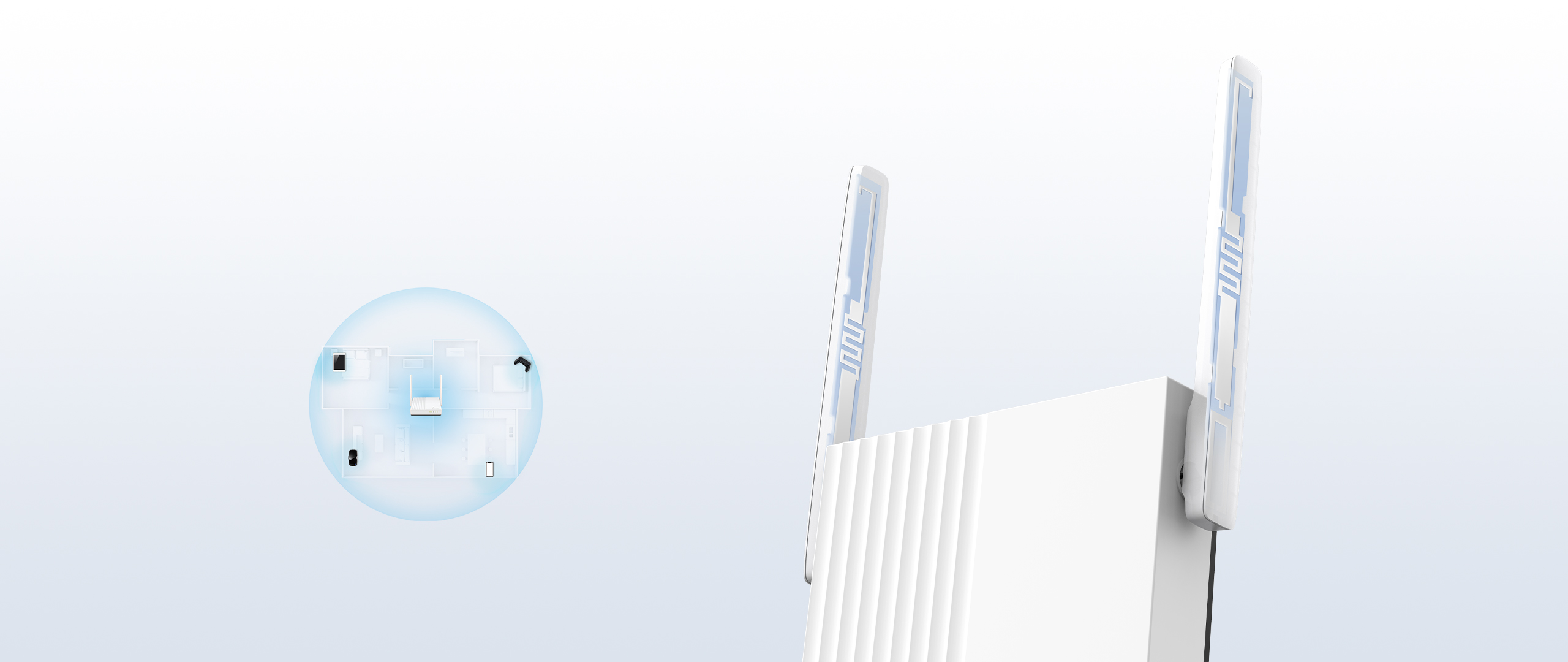

Stable Omnidirectional Signal
and Superior CoverageWith two well-tuned antennas, XN020-G3 enhances wireless signal
transmission and reception, ensuring all your connections are more
efficient and stable, with exceptional wireless coverage and reliability.Enhanced Network Protection
Parental Controls
Block inappropriate content and restrict time spent online
Multi-SSID

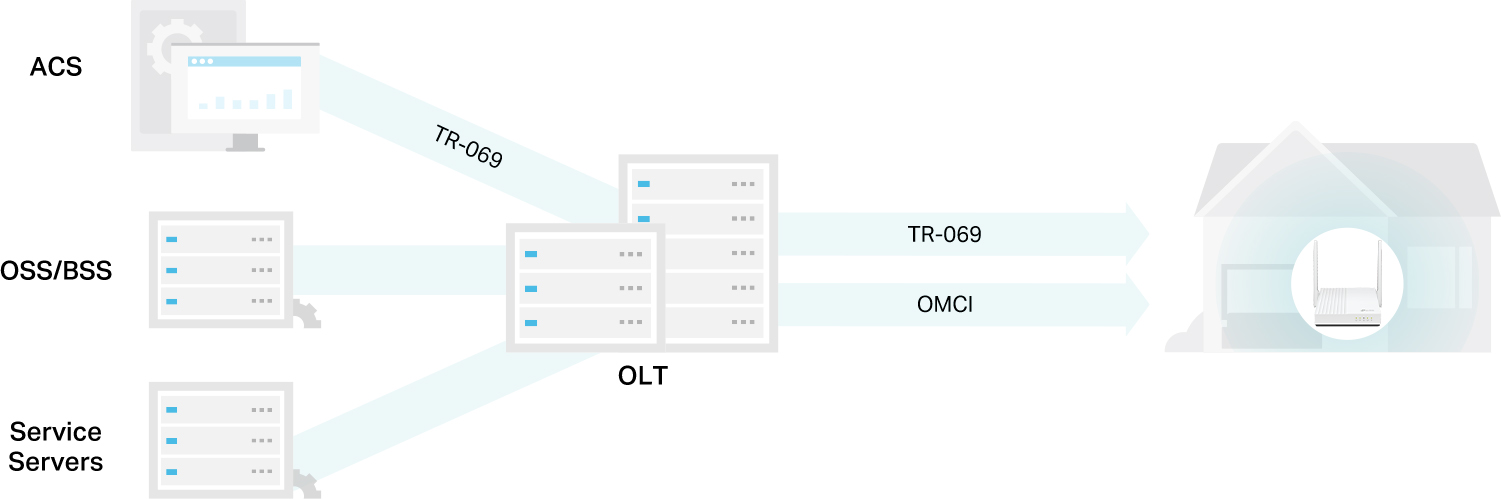

Create separate networks for visitors and keep your main network secureCentralized Remote
ManagementService providers can remotely configure and manage devices using the Auto Configuration Server (ACS), which is based on the
TR-069 standard, or the ONU Management Control Interface (OMCI) protocol. Compatibility with TR-098 and TR-143 facilitates
advanced operations, enhancing service efficiency while simultaneously improving the customer experience for home users.
Aginet Solution:
An End-to-End Management
Platform for ISPsThe Aginet Solution offers ISPs powerful and flexible platforms to
Learn more about the Aginet Solution>
manage multiple devices for connected homes, such as dynamic
service provisioning, remote firmware upgrading, and
troubleshooting.*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Multi-gig or 1000 Mbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.
HARDWARE FEATURES External Power Supply 12V/0.6A Wireless Standards IEEE 802.11g, 802.11b,802.11n Interface 1× SC/APC PON Port 1× GbE LAN Port Button Reset Button Antenna 2× External Dimensions ( W x D x H ) 4.5 × 4.2 × 1.0 in. (115 × 106.7 × 24.3mm) IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)† GPON Standards ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4, ITU G.988 WIRELESS FEATURES Frequency 2.4GHz Signal Rate 300 Mbps on 2.4 GHz Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Wireless Standards IEEE 802.11g, 802.11b,802.11n Transmission Power <20dBm (2.4GHz) Wireless Schedule Support 2.4GHz Schedule SOFTWARE FEATURES DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding Virtual Server, DMZ, ALG, UPnP Quality of Service ATM QoS, QoS Dynamic DNS DynDns, NO-IP Management Features Local management: WebGUI management, Aginet app management (for end user)Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-143 for service providersAginet APP for end user (need to log in with TP-Link ID and bind your device to it) Security NAT Firewall, SPI Firewall, Access Control, MAC/URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding Advanced Features SN, Password, SN + Password Authentication Mode, Upstream and Downstream FEC, AES encryption, Dynamic Bandwidth, Allocation(DBA) support NSR/SR, 802.1Q VLAN, Static Routing, IGMP v1/v2/v3, 16 T-CONTs, 256 GEM Ports Protocols Supports IPv4 and IPv6 OTHERS Certification CE Package Content XN020-G3 UnitRJ45 Ethernet CableQuick Installation GuidePower Adapter Environment Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing
