Revolutionary Home Connectivity
BE19000 Tri-Band WiFi 7
XGS-PON Router
XGB835v
-
Products
BE19000 Tri-Band WiFi 7 XGS-PON Router
XGB835v
- 19 Gbps Tri-Band WiFi 7: 12-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
- Symmetrical 10G Connectivity: XGS-PON technology delivers up to 10 Gbps of upstream and downstream transmissions simultaneously.△
- Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
- Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.†
- Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.†
- Versatile Internet Access: Supports direct fiber access, Ethernet connections via modem, and 3G/4G internet services through the USB port.
- More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.†
- EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
- VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
- Enhanced Security: WPA3 encryption, multi-SSID, and parental controls provide personalized and safer online experiences.†
- Easy Setup and Use: Simplifies network and WiFi control and management via the Aginet app.
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.
BE19000 Tri-Band WiFi 7
19 Gbps Tri-Band WiFi Speeds
4 + 4 + 4 Simultaneous Spatial StreamsMulti-Link Operation
4K-QAM
Zero-Wait DFS
EasyMesh-Compatible
Enhanced Security
10G
WAN/LAN
Connectivity 10G
Symmetrical Fiber AccessParental Controls
Optional Wall Mounting
Aginet Solution
End-to-End
Management PlatformTR-069/TR-369/OMCI Remote Management
Revolutionize Your WiFi Experience with WiFi 7
WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi. †
-
320 MHz
Doubles the width,
doubles the speed -
Multi-Link Operation
Increases throughput, reduces latency, and improves reliability
-
4K-QAM
Packs 120% data for
higher speeds -
Multi-RUs
Make full use of every resource
for maximum efficiency -
Zero-Wait DFS
Immediately switch to clean channels without WiFi drop off
-
Extremely High Throughput
-
WiFi 6
-
WiFi 5
19 Gbps Tri-Band WiFi Speeds
Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands enhance WiFi speeds and efficiency significantly, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.*
-
6 GHz
4×4 Spatial Streams11520 Mbps -
5 GHz
4×4 Spatial Streams8640 Mbps -
2.4 GHz
4×4 Spatial Streams1376 Mbps
10G Symmetrical Internet and Wired Connectivity
XGB835v features an XGS-PON port and a 10 GbE WAN port, delivering up to 10 Gbps for both fiber and Ethernet connections—designed for bandwidth-intensive homes and future-proof networks. The 10 GbE LAN port, along with multiple 2.5 GbE LAN ports, provides flexible high-speed connectivity, while the USB port enables fast file and media sharing or serves as a backup for 3G/4G dongles—ensuring you stay connected at all times.△
- ① Multi-Gig Fiber/Ethernet Internet Access
- ② Multi-Gig Wired Connections
- ③ 3G/4G Dongle Backup & Superfast Media Sharing
10GLAN Connectivity10GWAN Connectivity3G/4GDongle Backup10GSymmetrical Fiber AccessExtensive WiFi Coverage and Stronger Signals
Beamforming Technology
Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.
4T5R Antenna Architecture for Optimized Connections
Engineered with a 4T5R (4 transmitters + 5 receivers) antenna architecture, XGB835v delivers stronger signals and higher throughput on the 6 GHz band with high sensitivity.§
Beamforming
Beamforming
Throughput (Gbps)
XGB835v
Throughput (Gbps)
Regular Router
§The comparison test was conducted at mid-to-long distances in a controlled environment at the TP-Link lab.
1×
Extra 6G
Receiver Antenna4×
High-performance
6G Antennas1×
2.4G + 5G
DFS Antenna4×
High-performance
2.4G + 5G Antennas-
Web Browsing
-
Smart Home Devices
-
IP Camera Streaming
-
High-speed Downloading
-
8K Streaming
-
Online Gaming
-
720P Streaming
-
1080P Streaming
-
4K Streaming
§Testing of multiple applications and devices is conducted in TP-Link labs.
Actual results may vary.More Connections,
No More BufferingEnhanced by WiFi 7 and featuring OFDMA, Multi-Link Operation (MLO), and MU-MIMO, you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.†
Connects
devices§§Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.
Smart Mesh WiFi with Greater Flexibility
Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.‡
Whole Home Coverage
Eliminate weak signal areas with WiFi coverage for your entire home
Seamless Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names when you walk around
Robust Backhaul
Supports both wireless backhaul and Ethernet backhaul
-
EasyMesh Routers
-
Traditional Router with Extender
Convenient VoIP Calls over the Internet
XGB835v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding, and call forwarding to surpass traditional landlines.
-
Analog Phone
-
VoIP Calls
-
Voicemail Storage§
§This feature becomes available once you inserted a USB storage device to the USB port.
Optional Wall Mounting
With a sleek, flat design, this router can be wall-mounted in your home office, living room, or hallway to suit your needs, whether to save space or fit your décor.§
Recommended screws:5 < D < 9 mm
H < 3.5 mm
L > 8 mm§The wall mount bracket is optional and may not be available for all product versions.ΦDHLRecommended screws:5 < D < 9 mm
H < 3.5 mm

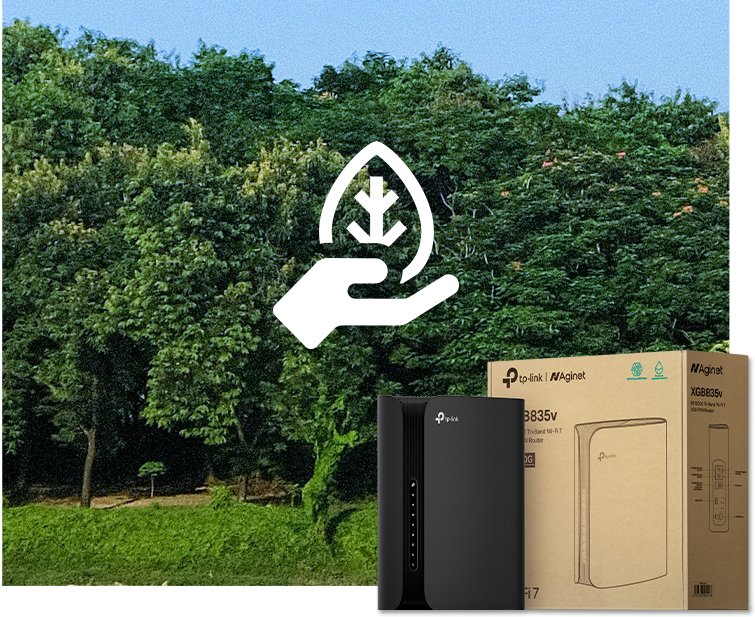

L > 8 mm§The wall mount bracket is optional and may not be available for all product versions.ΦDHLCrafted with Care for the Planet We All Share
Designed with sustainability at its core, XGB835v reduces its carbon footprint by using 100% recyclable plastics for its housing, fully recyclable paper, and vegetable-based ink for packaging.
Robust Network Protection
-
WPA3 Security
Higher password safety and enhanced protection against attacks†
-
Parental Controls
Block inappropriate content and restrict time spent online
-
Multi-SSID
Create separate networks for visitors and keep your main network secure
Easy Setup and Use
You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
Effortless Management, Smarter Operations
Integrated with the TP-Link Aginet Unified Cloud (TAUC) platform, service providers can remotely manage, configure, and monitor devices at scale—anytime, anywhere. Real-time mesh WiFi diagnostics, comprehensive network health check, dynamic service provisioning, zero-touch firmware updates, and proactive alerts all help streamline operations, cut costs, and enhance customer satisfaction.
Centralized Remote Management
Service providers can remotely configure and manage devices through their ACS (Auto-Configuration Server, based on TR-369/069) system or via the OLT (Optical Line Terminal) using the OMCI (ONU Management Control Interface) protocol. More operations are supported with compatibility for TR-181, TR-111, and TR-143, ensuring a more efficient service experience for home users.
ACSOSS/BSSService ServersTR-369/TR-069OLTOMCI
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Use of WiFi 7 (802.11be), WiFi 6E/WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz bandwidth or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 router.
‡A mesh network requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It functions solely as a controller and supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.
△10 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN ports will operate as either a WAN or LAN port. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
HARDWARE FEATURES External Power Supply 12V/4.5A Interface 1× XGS-PON Port1× 10 GbE WAN Port1× 10 GbE LAN Port3× 2.5 GbE LAN Ports1× Phone Port1× USB 3.0 Port (Type-A) Button WPS ButtonReset Button Antenna 4× Internal 2.4G & 5G Antennas4× Internal 6G Antennas1× Internal 6G Receiver Antenna1× Internal 2.4G & 5G DFS Antenna Dimensions ( W x D x H ) 7.8 × 3.1 × 9.4 in (198 × 80 × 238.2 mm) Data Rates Downstream Speeds: 9.953 Gbps (XGS-PON)Upstream Speeds: 9.953 Gbps (XGS-PON)‡ WIRELESS FEATURES Frequency 2.4 GHz, 5 GHz, and 6 GHz Signal Rate BE190006 GHz: Up to 11520 Mbps (EHT320)5 GHz: Up to 5760 Mbps (EHT160)2.4 GHz: Up to 1376 Mbps (EHT40)* Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics Wireless Security WPA/WPA2/WPA3 Encryptions Wireless Standards IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/g/b 2.4 GHz Transmission Power FCC:<30 dBm (2.4 GHz)<30 dBm(5 GHz)<30 dBm(6 GHz) Multi-SSID 2× 6 GHz Multi-SSID2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID Wireless Schedule Support 2.4 GHz, 5 GHz and 6 GHz Wireless Schedule Mesh Technology EasyMesh Compatible, and support 802.11k/v/r SOFTWARE FEATURES DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP Quality of Service Hardware QoS, Flow Classification Dynamic DNS DynDns, NO-IP VPN Pass-Through PPTP, L2TP, IPSec Pass-through Management Features Local management: WebGUI, Aginet app (for end users) Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providersAginet APP for end user (need to log in with TP-Link ID and bind your device to it)Cloud management: TP-Link Aginet Unified Cloud (TAUC) Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death" Advanced Features Multi-Link Operation (MLO), Zero-Wait DFS, 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS ColorNetwork Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic Protocols IPv4, IPv6 VPN Server PPTP VPN, IPSec VPN , OpenVPN OTHERS Package Content XGB835v UnitRJ45 Ethernet CablePower AdapterFiber LockQuick Installation Guide Environment Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing
