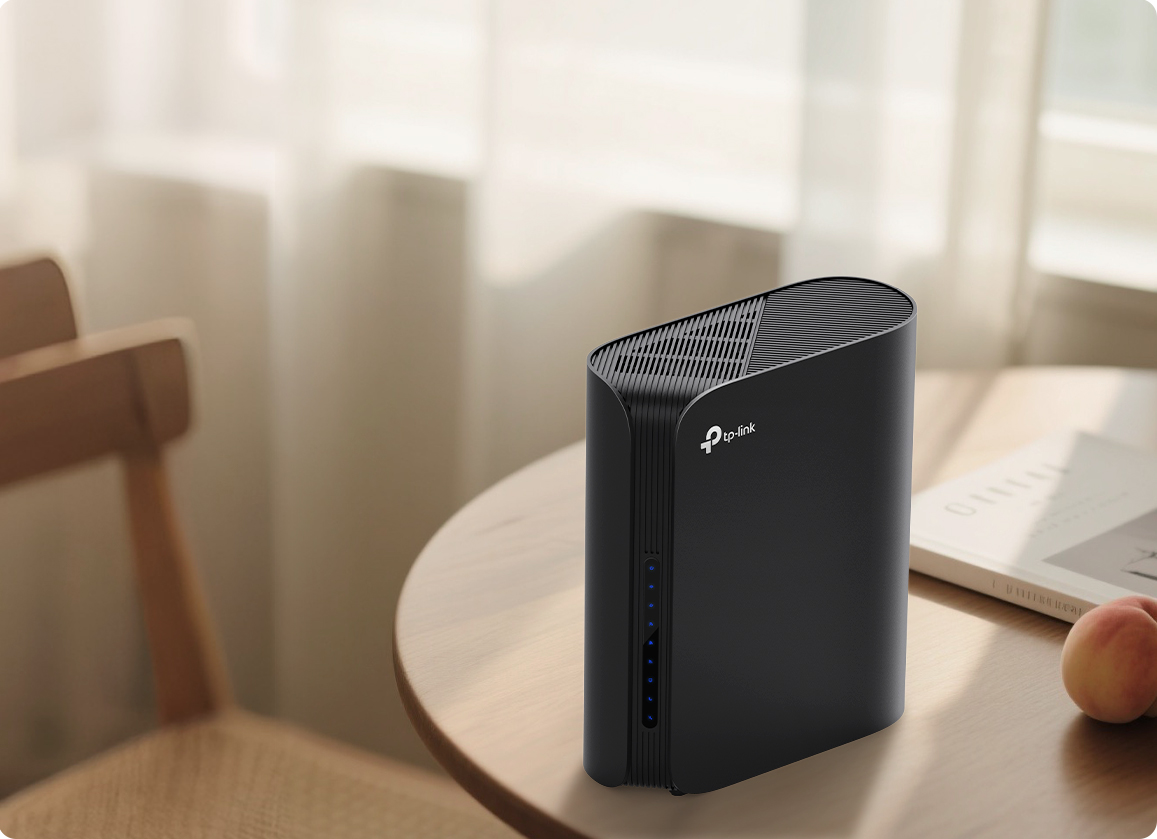

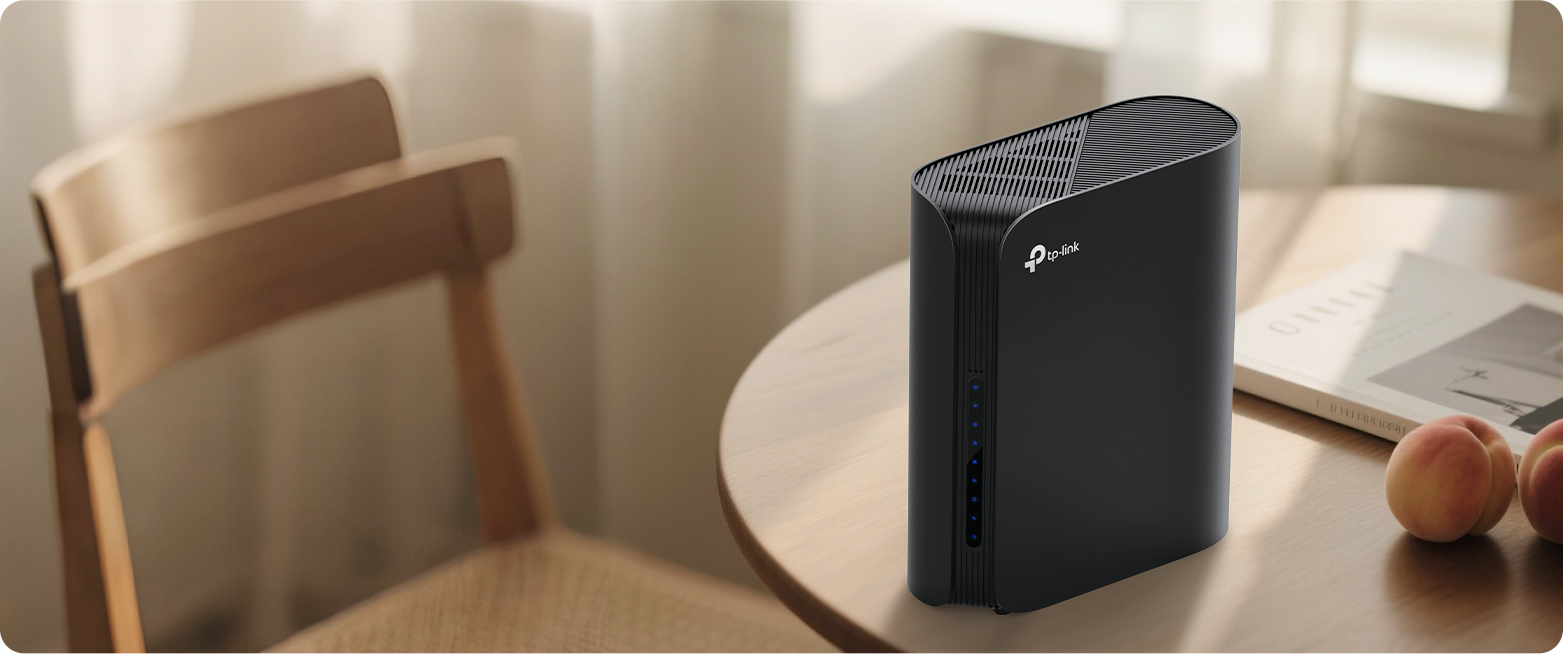

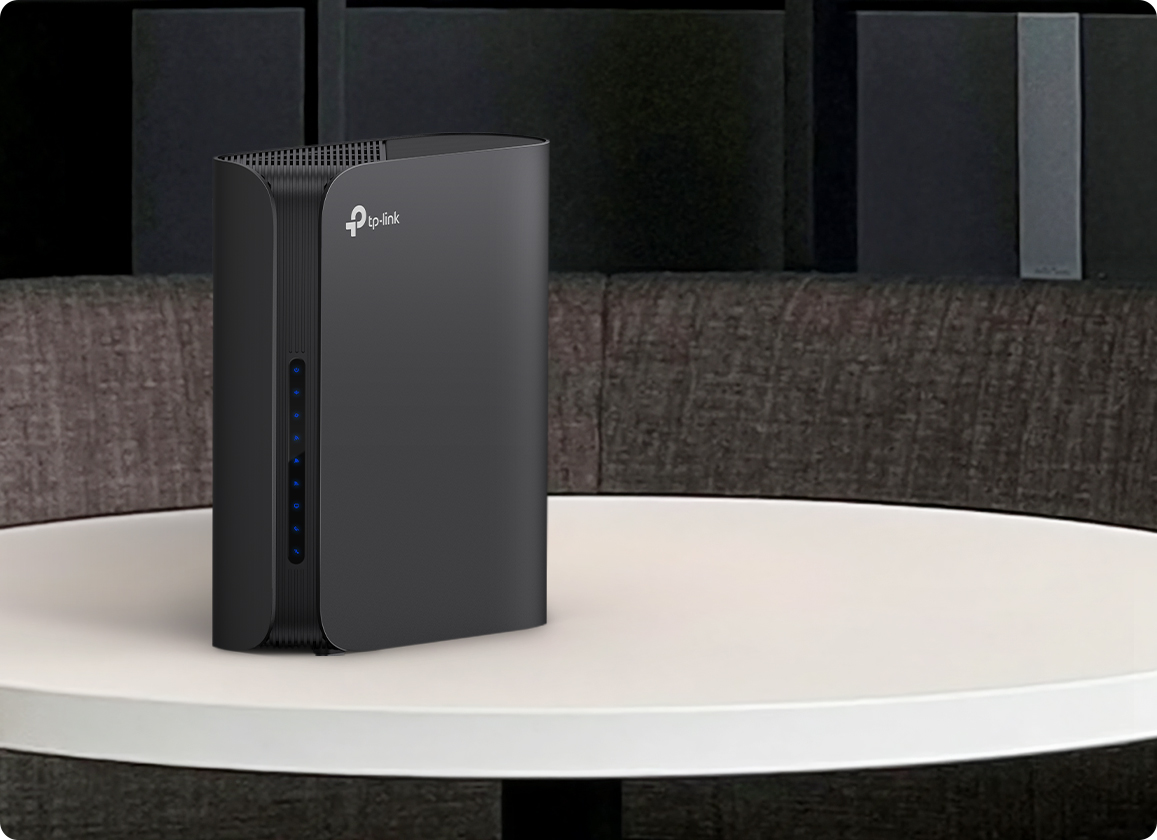

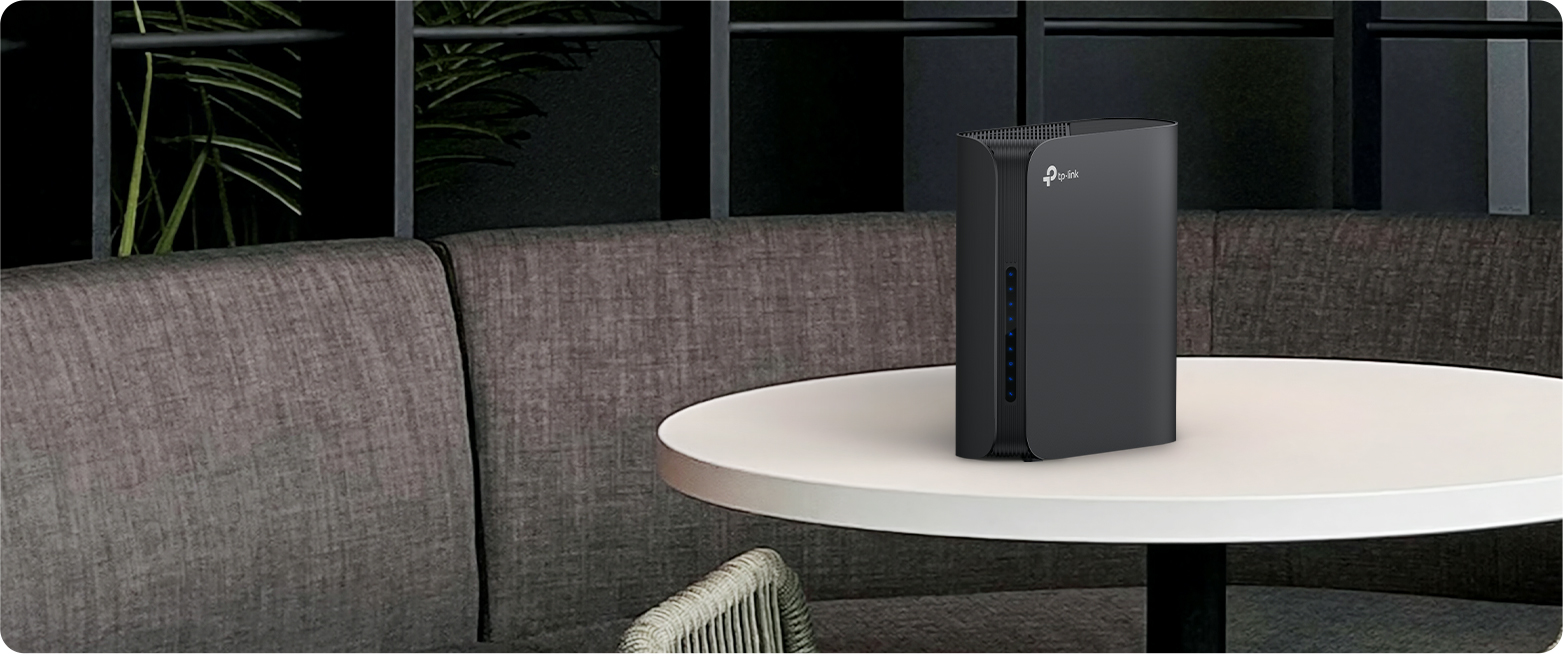

BE19000 Tri-Band WiFi 7 XGS-PON Router

XGB830v

  • 19 Gbps Tri-Band WiFi 7: 12-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
  • Symmetrical 10G Connectivity: XGS-PON technology delivers up to 10 Gbps of upstream and downstream transmissions simultaneously.
  • Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.
  • Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.
  • Versatile Internet Access: Supports direct fiber access, Ethernet connections via modem, and 3G/4G internet services through the USB port.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
  • EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
  • VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
  • Enhanced Security: WPA3 encryption, multi-SSID, and parental controls provide personalized and safer online experiences.
  • Easy Setup and Use: Simplifies network and WiFi control and management via the Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Revolutionary Home Connectivity

BE19000 Tri-Band WiFi 7
XGS-PON Router

XGB830v

2.5g

19 Gbps Tri-Band WiFi Speeds
4 + 4 + 4 Simultaneous Spatial Streams

Multi-Link Operation

4K-QAM

Zero-Wait DFS

EasyMesh-Compatible

Enhanced Security

10G
WAN/LAN
Connectivity
10G
Symmetrical Fiber Access

Parental Controls

Optional Wall Mounting

Aginet Solution
End-to-End
Management Platform

TR-069/TR-369/OMCI Remote Management

Revolutionize Your WiFi Experience with WiFi 7

WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

  • 320 MHz

    Doubles the width,
    doubles the speed

  • Multi-Link Operation

    Increases throughput, reduces latency, and improves reliability

  • 4K-QAM

    Packs 120% data for
    higher speeds

  • Multi-RUs

    Make full use of every resource
    for maximum efficiency

  • Zero-Wait DFS

    Immediately switch to clean channels without WiFi drop off

  • Extremely High Throughput

    wifi7
  • WiFi 6
  • WiFi 5

19 Gbps Tri-Band WiFi Speeds

Next-gen 2.4 GHz, 5 GHz, and 6 GHz bands enhance WiFi speeds and efficiency significantly, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive AR/VR, online gaming, and blazing-fast downloads.*

19 Gbps Tri-Band WiFi Speeds
  • 6 GHz

    4×4 Spatial Streams
    11520 Mbps
  • 5 GHz

    4×4 Spatial Streams
    8640 Mbps
  • 2.4 GHz

    4×4 Spatial Streams
    1376 Mbps

10G Symmetrical Internet and Wired Connectivity

XGB830v features an XGS-PON port and a 10 GbE WAN/LAN port, delivering up to 10 Gbps for both fiber and Ethernet connections—designed for bandwidth-intensive homes and future-proof networks. The multiple 2.5 GbE LAN ports provides flexible high-speed connectivity, while the USB ports enable fast file sharing or serves as a backup for 3G/4G dongles—ensuring you stay connected at all times.

  • ① Multi-Gig Fiber/Ethernet Internet Access
Access Way 1
  • ② Multi-Gig Wired Connections
Access Way 2
  • ③ 3G/4G Dongle Backup & Superfast Media Sharing
Access Way 3
10G
WAN/LAN Connectivity
3G/4G
Dongle Backup
10G
Symmetrical Fiber Access

Extensive WiFi Coverage and Stronger Signals

Beamforming Technology

Beamforming technology and high-performance antenna array combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

Beamforming

4T5R Antenna Architecture for Optimized Connections

Engineered with a 4T5R (4 transmitters + 5 receivers) antenna architecture, XGB830v delivers stronger signals and higher throughput on the 6 GHz band with high sensitivity.§

Beamforming

Beamforming

Beamforming

Throughput (Gbps)

XGB830v

XGB830v

Throughput (Gbps)

XGB830v

Regular Router

§The comparison test was conducted at mid-to-long distances in a controlled environment at the TP-Link lab.


Extra 6G
Receiver Antenna


High-performance
6G Antennas


2.4G + 5G
DFS Antenna


High-performance
2.4G + 5G Antennas

  • Web Browsing

  • Smart Home Devices

  • IP Camera Streaming

  • High-speed Downloading


  • 8K Streaming

  • Online Gaming

  • 720P Streaming

  • 1080P Streaming

  • 4K Streaming

§Testing of multiple applications and devices is conducted in TP-Link labs.
Actual results may vary.

More Connections,
No More Buffering

Enhanced by WiFi 7 and featuring OFDMA, Multi-Link Operation (MLO), and MU-MIMO, you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.

Connects
200+
devices§

§Testing of multiple applications and devices is conducted in TP-Link labs. Actual results may vary.

Smart Mesh WiFi with Greater Flexibility

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.

  • Whole Home Coverage

    Eliminate weak signal areas with WiFi coverage for your entire home

  • Seamless Roaming

    Uninterrupted streaming when moving around your home

  • One WiFi Name

    No more switching WiFi network names when you walk around

  • Robust Backhaul

    Supports both wireless backhaul and Ethernet backhaul

  • EasyMesh Routers

  • Traditional Router with Extender

Convenient VoIP Calls over the Internet

XGB830v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

  • Analog Phone

  • VoIP Calls

  • Voicemail Storage§

§This feature becomes available once you inserted a USB storage device to the USB port.

Optional Wall Mounting

With a sleek, flat design, this router can be wall-mounted in your home office, living room, or hallway to suit your needs, whether to save space or fit your décor.§

Recommended screws
Recommended screws:
5 < D < 9 mm
H < 3.5 mm
L > 8 mm
§The wall mount bracket is optional and may not be available for all product versions.
ΦD
H
L
Recommended screws
Recommended screws:
5 < D < 9 mm
H < 3.5 mm
L > 8 mm
§The wall mount bracket is optional and may not be available for all product versions.
ΦD
H
L

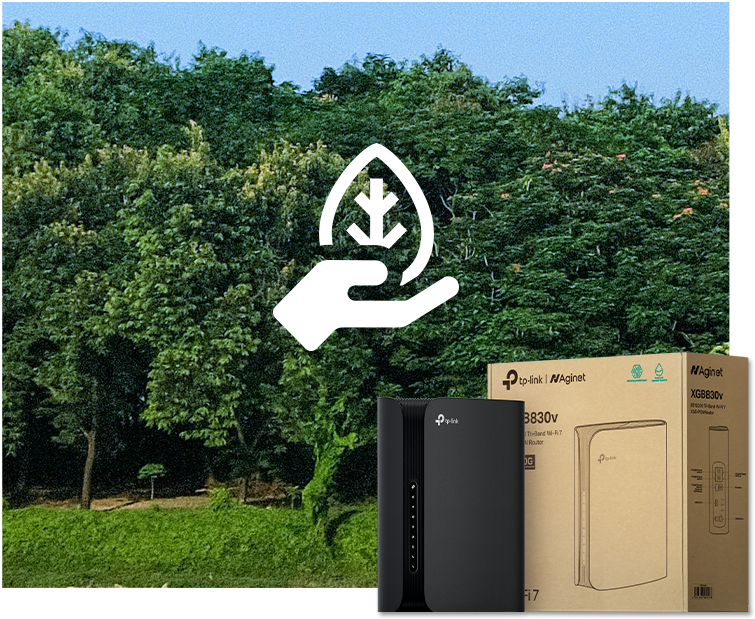

Crafted with Care for the Planet We All Share

Designed with sustainability at its core, XGB830v reduces its carbon footprint by using 100% recyclable plastics for its housing, fully recyclable paper, and vegetable-based ink for packaging.

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

Easy Setup and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Centralized Remote Management

Service provider can remotely configure and manage devices via their ACS (Auto-Configuration Server, based on TR-369/069) system or the OMCI (ONU Management Control Interface) protocol. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.

ACS
OSS/BSS
Service Servers
TR-369/TR-069
OLT
OMCI

Aginet Solution:
An End-to-End Management
Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn More about the Aginet Solution

lifestyle-image-1 lifestyle-image-2
lifestyle-image-1 lifestyle-image-2

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of WiFi 7 (802.11be), WiFi 6E/WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz bandwidth or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 router.

A mesh network requires two or more devices.This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMesh™ certification. It functions solely as a controller and supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds.Clients need to support 802.11 k/v and may require additional setup.Performance may vary depending on the client device.

10 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN ports will operate as either a WAN or LAN port. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

HARDWARE FEATURES
External Power Supply 12V/4A
Interface 1× XGS-PON Port
1× 10 GbE WAN/LAN Port
3× 2.5 GbE LAN Ports
2× Phone Ports
1× USB 3.0 Port (Type-C)
1× USB 2.0 Port (Type-A)
Button Wi-Fi Button
WPS Button
Reset Button
Power On/Off Button
Antenna 4× Internal 2.4G & 5G Antennas
4× Internal 6G Antennas
1× Internal 6G Receiver Antenna
1× Internal 2.4G & 5G DFS Antenna
Dimensions ( W x D x H ) 7.8 × 3.1 × 9.4 in (198 × 80 × 238.2 mm)
Data Rates Downstream Speeds: 9.953 Gbps (XGS-PON)
Upstream Speeds: 9.953 Gbps (XGS-PON)
WIRELESS FEATURES
Frequency 2.4 GHz, 5 GHz, and 6 GHz
Signal Rate BE19000
6 GHz: Up to 11520 Mbps (EHT320)
5 GHz: Up to 5760 Mbps (EHT160)
2.4 GHz: Up to 1376 Mbps (EHT40)*
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 Encryptions
Wireless Standards IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Transmission Power CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
<23 dBm (6 GHz)
Multi-SSID 2× 6 GHz Multi-SSID
2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Wireless Schedule Support 2.4 GHz, 5 GHz and 6 GHz Wireless Schedule
Mesh Technology EasyMesh Compatible, and support 802.11k/v/r
SOFTWARE FEATURES
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Quality of Service Hardware QoS, Flow Classification
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providers
Aginet APP for end user (need to log in with TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death"
Advanced Features Multi-Link Operation (MLO), Zero-Wait DFS, 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS Color
Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic
Protocols IPv4, IPv6
VPN Server PPTP VPN, IPSec VPN , OpenVPN
OTHERS
Package Content XGB830v Unit
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
