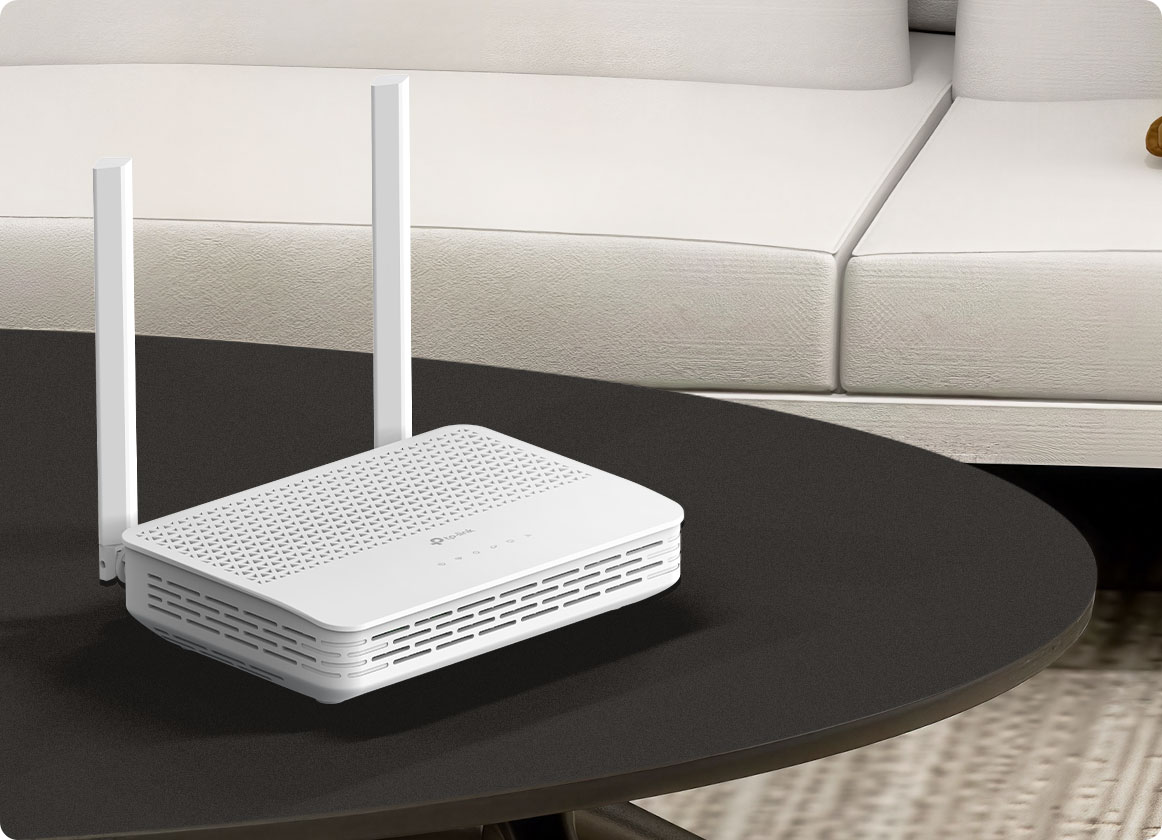

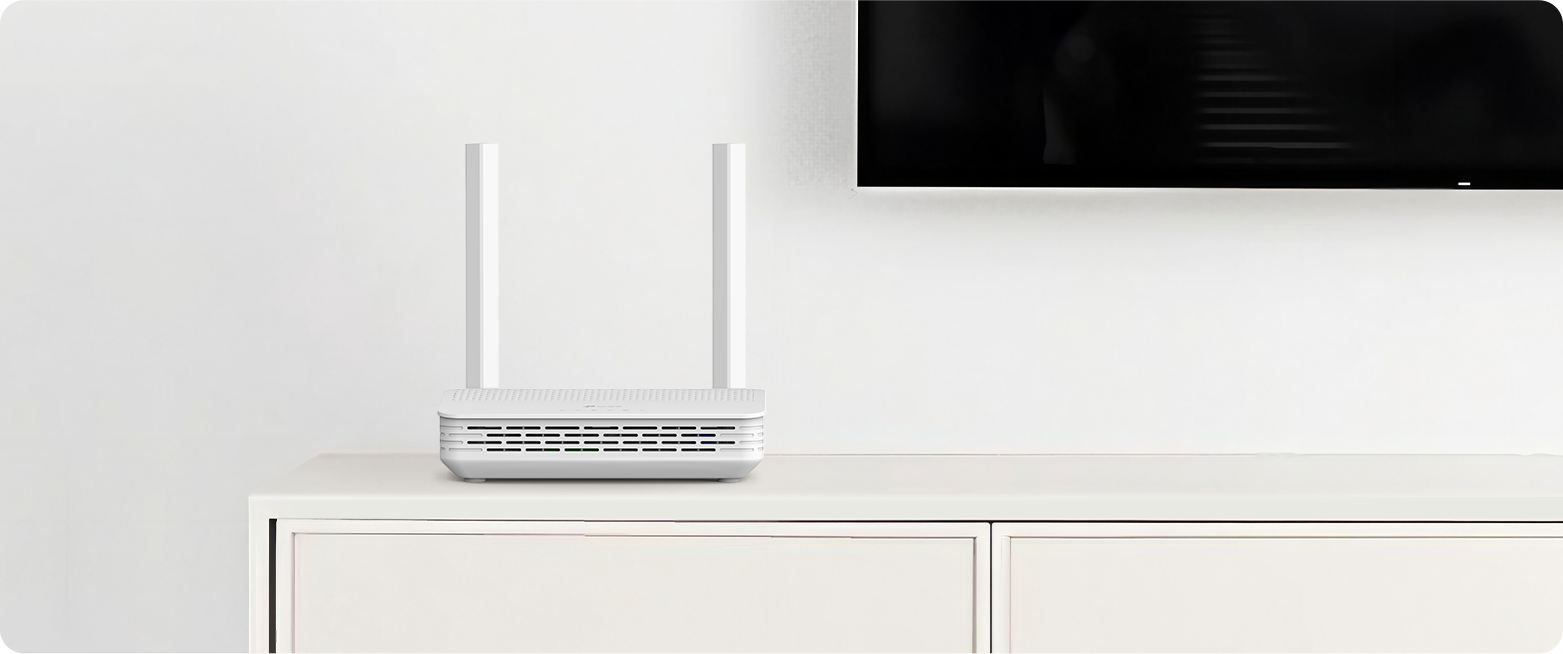

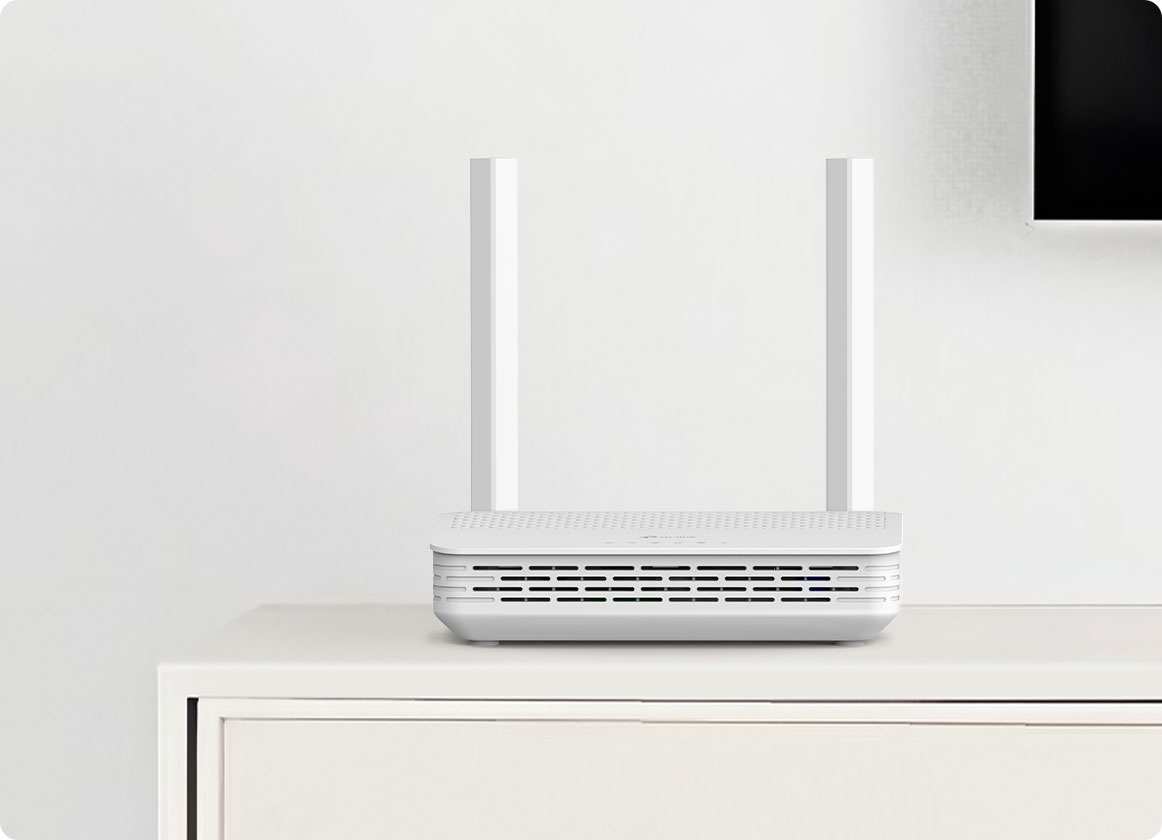

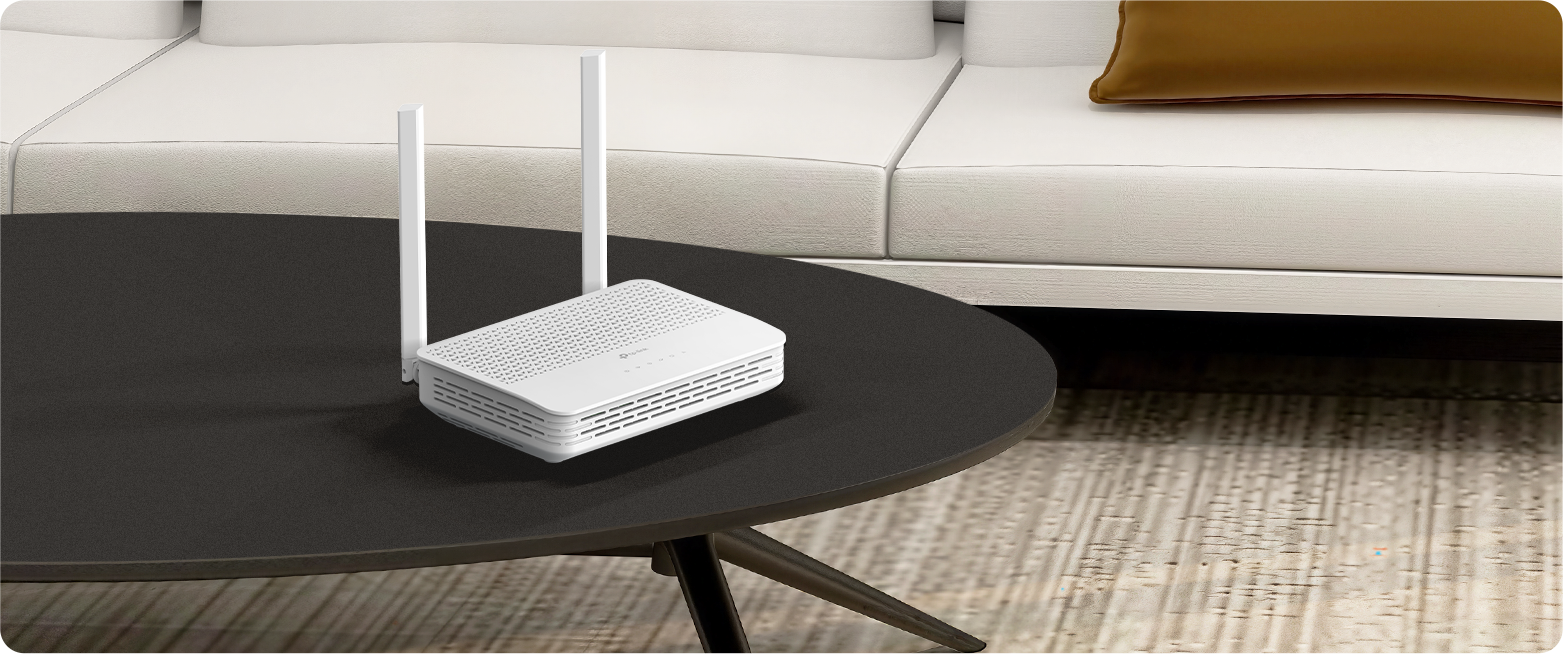

AC1200 Wireless XPON Router

XC220-G3

  • ​​​​​​Superfast Dual Band WiFi: Up to 1.2 Gbps WiFi speeds, 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz, *
  • XPON Dual Modes: Supports GPON and EPON dual modes with automatic switch for flexible fiber internet access.
  • Gigabit Wired Connectivity: 2× Gigabit Ethernet LAN ports offer flexible and fast internet access.
  • EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.§
  • Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls offer personalized and safer online experiences.**
  • Compact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.
  • Easy Setup and Use: Simplifies network and WiFi control and management via the robust Aginet app.
  • Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of MU-MIMO and WPA3 requires clients to also support the corresponding features.

§Mesh network requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.

†Multi-gig or 1000 Mbps internet speeds require compatible service plans and equipment. Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

SOFTWARE FEATURES
Advanced Features Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Quality of Service Hardware QoS
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
Management Features Local management: WebGUI management, Aginet app management
Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181,TR-111,TR-143
Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death”
Protocols IPv4, IPv6
WIRELESS FEATURES
Transmission Power 2.4 GHz: 26 dBm(EIRP), 5GHz: 28dBm (EIRP)
Frequency 2.4 GHz and 5 GHz
Signal Rate 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 encryptions
Wireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology EasyMesh Compatible, and support 802.11k/v/r
HARDWARE FEATURES
External Power Supply 12V/1.0A
Interface 2 10/100/1000 Mbps RJ45 LAN Ports
1 PON Port
Button WPS/Wi-Fi Button, RESET Button
Antenna 2 External Dual Band Antennas
Data Rates Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)§
OTHERS
Package Content AC1200 Wireless XPON Router XC220-G3
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
