BE3600 Dual Band WiFi 7 GPON Router

XB230v

  • 3.6 Gbps Dual Band WiFi 7: 4-stream dual band WiFi enables gaming, streaming, and high-speed downloading on multiple devices—all at the same time.*
  • Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across two bands.**
  • Superior Coverage: High-performance antenna array and beamforming technology combine to extend strong, reliable WiFi throughout your home.
  • More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.**
  • EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.†
  • Versatile Internet Access: Supports direct GPON fiber access, Ethernet connections via modem/switch, and 3G/4G internet services through the USB port.
  • Gigabit Wired Connections: 1× GbE WAN/LAN port and 2× GbE LAN ports provide fast and flexible internet access.
  • VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.**
  • Easy Setup and Use: Simplifies network and WiFi control and management via the powerful Aginet app.
  • Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Elevate Your
Home Connectivity

BE3600 Dual-Band WiFi 7 GPON
Router

XB230v

WiFi 7

3.6 Gbps
Dual Band WiFi

2 + 2
Simultaneous Spatial Streams

Multi-Link Operation

4K-QAM

Zero-Wait DFS

EasyMesh-Compatible

Enhanced Security

2.5G
GPON Fiber Access Gigabit Wired
Connectivity 3G/4G Backup

Parental Controls

VoIP Calls

Aginet Solution
End-to-End
Management Platform

TR-069/TR-369/OMCI
Remote Management

Media Sharing

Revolutionize Your WiFi
Experience with WiFi 7

WiFi 7 has arrived with unprecedented
performance—offering accelerated
throughput, lower latency, stronger
anti-jamming, and higher
efficiency. Join the
league of pros and experience the sheer
performance of the next generation of WiFi.†

  • Extremely High Throughput

  • WiFi 6
  • WiFi 5

  • 4K-QAM

    Packs 120% data for
    higher speeds

  • Multi-Link Operation

    Increases throughput, reduces
    latency,
    and improves reliability

  • Multi-RUs

    Make full use of every resource
    for
    maximum efficiency

  • Zero-Wait DFS

    Immediately switch to clean
    channels
    without WiFi drop off

3.6 Gbps Dual Band WiFi 7

Both 2.4GHz and 5GHz bands are upgraded to the latest WiFi 7 technology with faster speeds and higher efficiency, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive gaming, and blazing-fast downloads.*

5 GHz
2×2 Spatial Streams
2880 Mbps
2.4 GHz
2×2 Spatial Streams
688 Mbps

All-in-One Connectivity

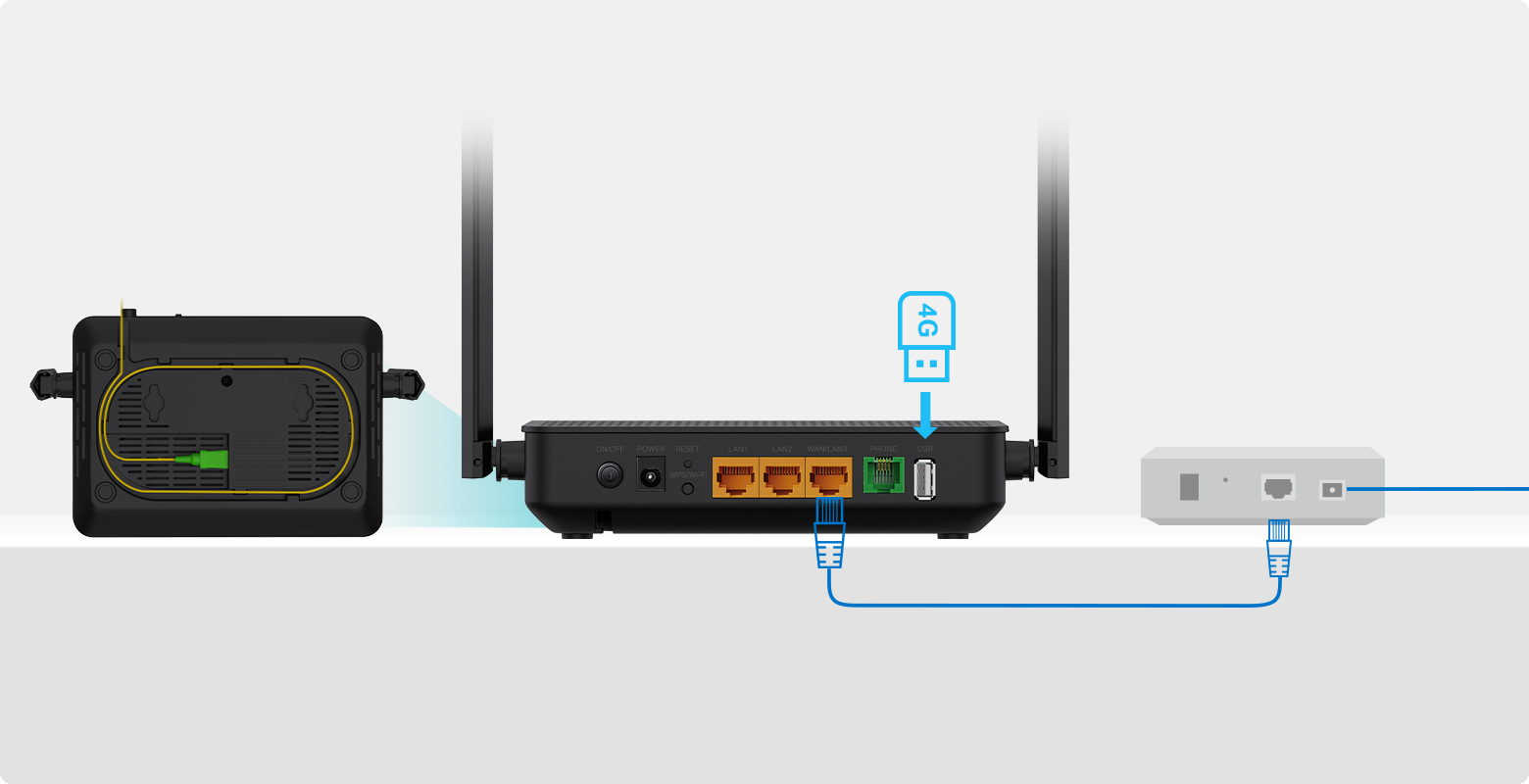

2.5G Multi-Gig Internet Access

Scenario 1: Fiber Access

GPON up to 2.5 Gbps Downlink/1.25 Gbps Uplink

Ethernet Cable

Modem/Switch

Scenario 2: Ethernet Access

Up to 1 Gbps Downlink/Uplink

Scenario 3: 3G/4G Backup

3G/4G Dongle

Multi-Gig Wired Connectivity

IPTV

Game Console

Computer

Printer

Hard Disk

Flash Drive

VoIP Calls

Analog Phone

VoIP Calls

Voicemail Storage§

§The Voicemail feature becomes available
once you inserted a USB storage device to
the USB port.

2.5G Multi-Gig Internet Access

Break through the 1 Gbps bottleneck and maximize your broadband plan with speeds up to 2.5 Gbps through direct fiber connection. It's Gigabit Ethernet WAN/LAN port serves as a backup connection through Ethernet cabling to modem or switch, while a 3G/4G dongle can be attached to the USB port as a backup to always stay connected.△

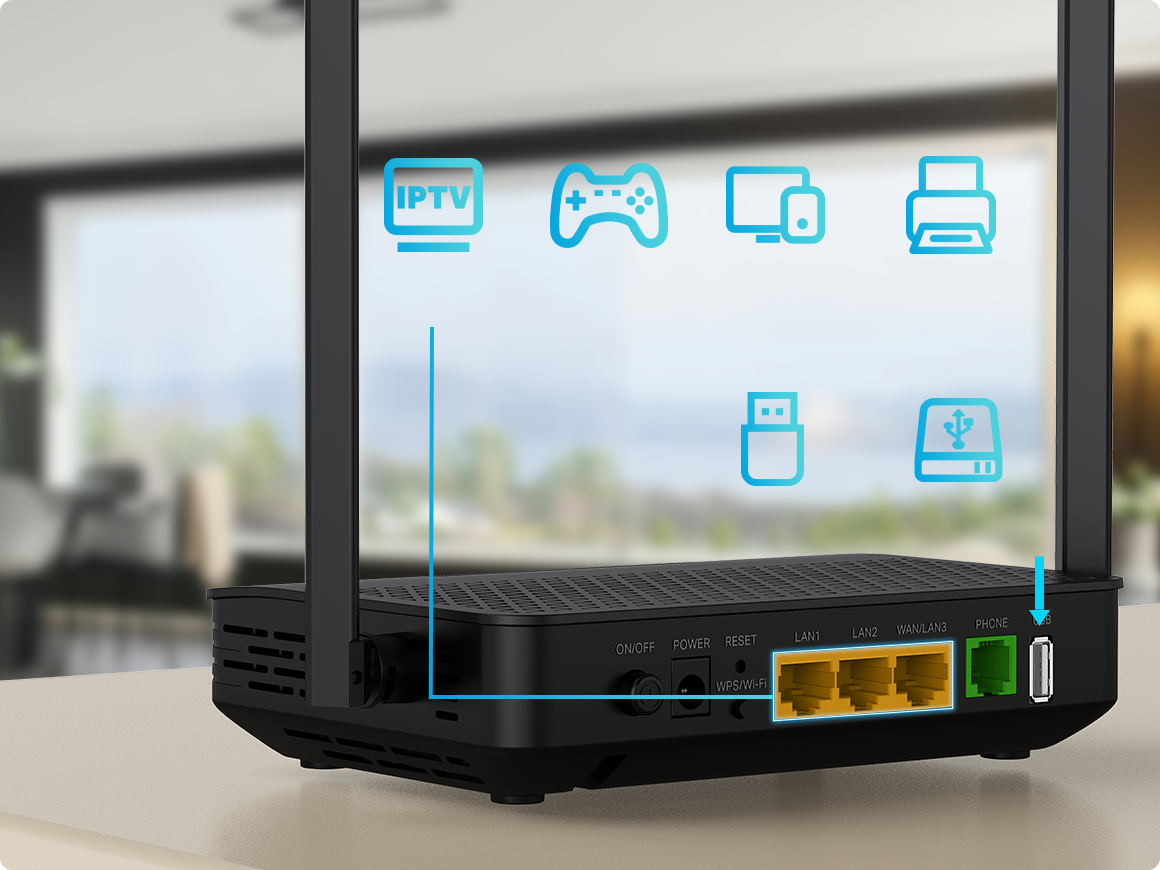

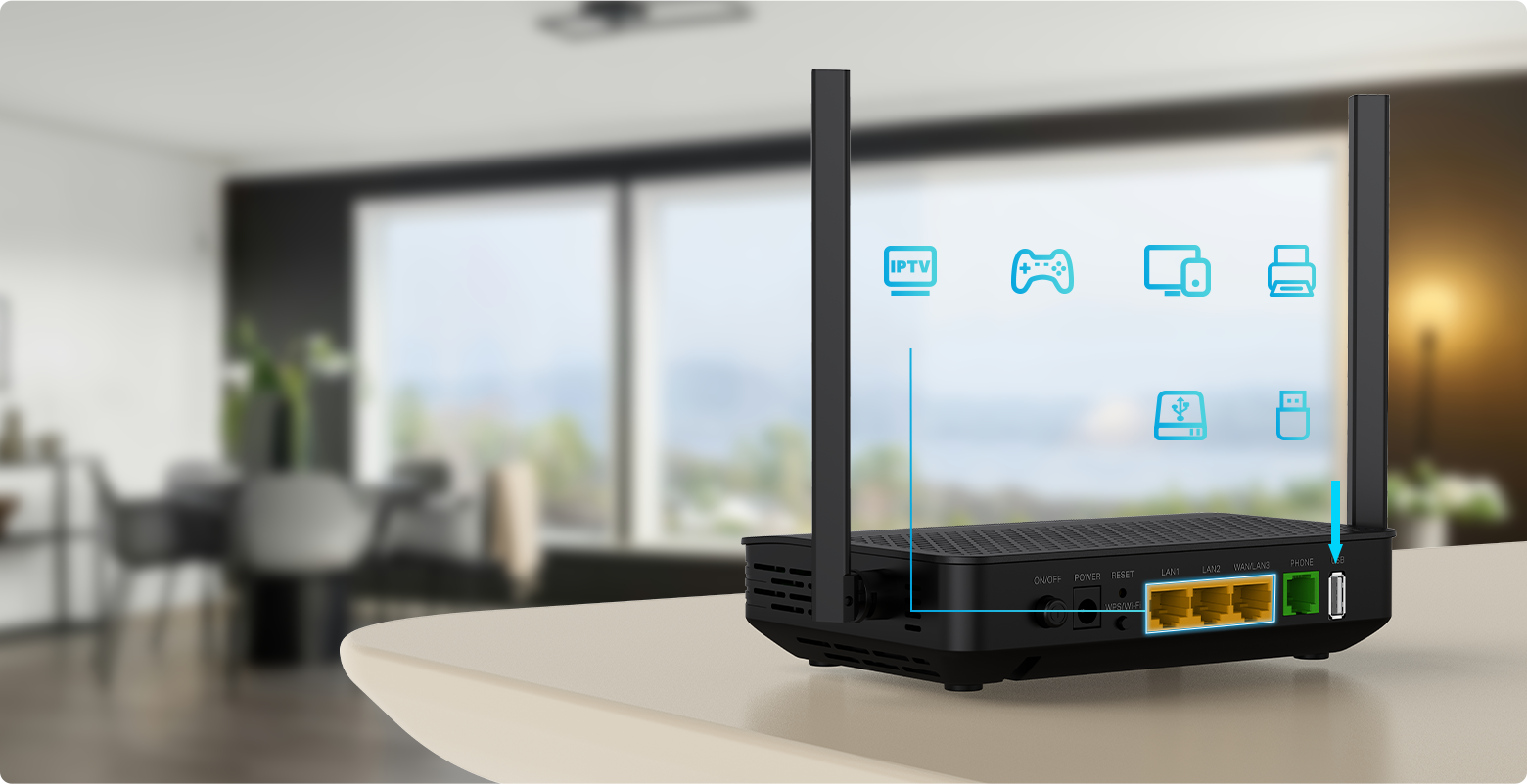

Gigabit Wired Connectivity and Media Sharing

The multiple Ethernet ports enhance both flexibility and speed for your home networking. Connect your PCs, smart TVs, and game consoles to one of the Gigabit Ethernet LAN ports (including the WAN/LAN port) for reliable wired connections. The USB port allows you to share files, music, and videos across your network at high speeds.△

Convenient VoIP Calls

XB230v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

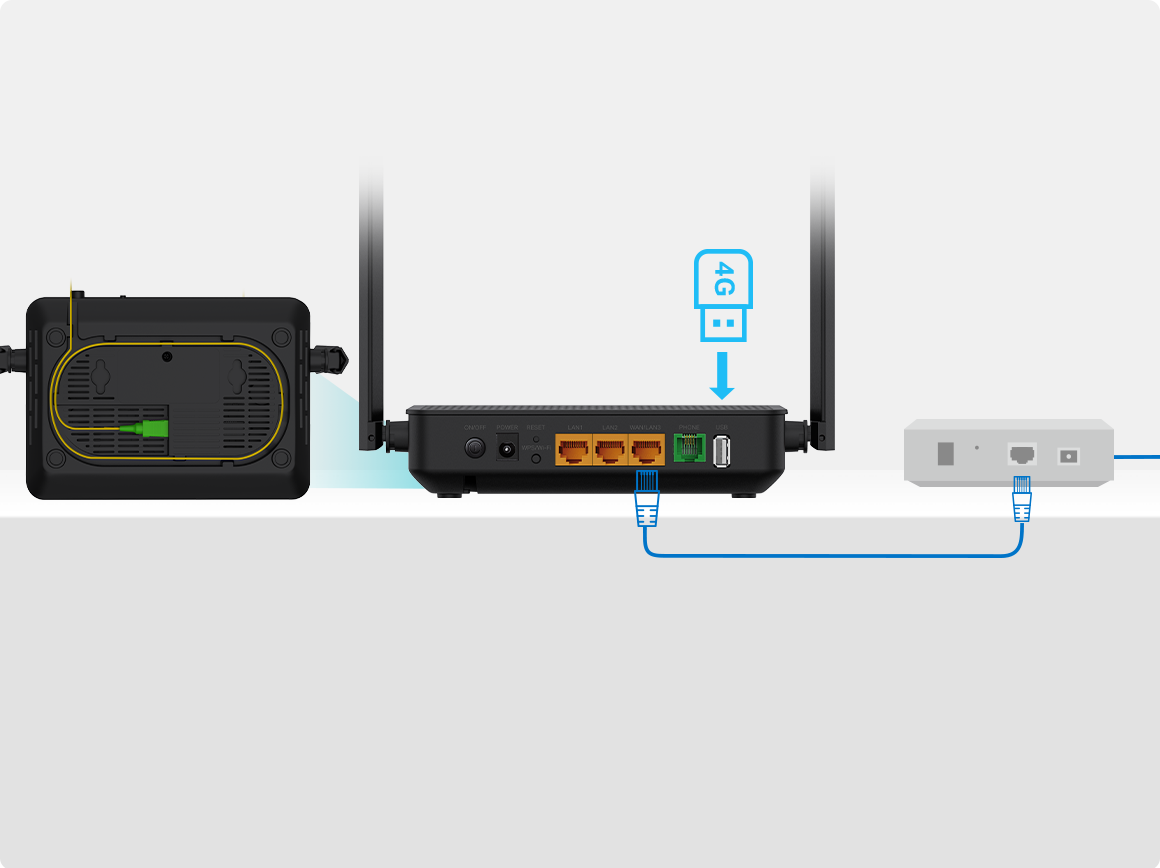

2.5G Multi-Gig Internet Access

Scenario 1:
Fiber Access

GPON up to 2.5 Gbps Downlink/1.25 Gbps Uplink

Ethernet Cable

Modem/
Switch

Scenario 2:
Ethernet Access

Up to 1 Gbps Downlink/Uplink

Scenario 3:
3G/4G Backup

3G/4G Dongle

2.5G Multi-Gig Internet Access

Break through the 1 Gbps bottleneck and maximize your broadband plan with speeds up to 2.5 Gbps through direct fiber connection. Its Gigabit Ethernet WAN/LAN port serves as a backup connection through Ethernet cabling to a modem or switch, while a 3G/4G dongle can be attached to the USB port as a backup to always stay connected.△

Multi-Gig Wired Connectivity

IPTV

Game
Console

Computer

Printer

Hard Disk

Flash Drive

Gigabit Wired Connectivity and
Media Sharing

The multiple Ethernet ports enhance both flexibility and speed for your home networking. Connect your PCs, smart TVs, and game consoles to one of the Gigabit Ethernet LAN ports (including the WAN/LAN port) for reliable wired connections. The USB port allows you to share files, music, and videos across your network at high speeds.Δ

VoIP Calls

Analog Phone

VoIP Calls

Voicemail
Storage§

§ The Voicemail feature
becomes available
once you inserted a
USB storage device to
the USB port.

Convenient VoIP Calls

XB230v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

Extensive WiFi Coverage and
Optimized Connections

High-performance antenna array and beamforming technology work together to enhance Wi-Fi coverage, perfectly adapting to your home and directing signal strength toward every device.

Beamforming

Other Router without Beamforming

XB230v

2×

High-performance
External Dual-band
Antennas with DFS

1×

Extra Internal 5G
Antennas with DFS

Beamforming Coverage
Beamforming

Other Router without
Beamforming

XB230v

2×

High-performance
External Dual-band
Antennas with DFS

1×

Extra Internal
5G Antennas
with DFS

More Connections, Less
Buffering

Enhanced by WiFi 7 and featuring OFDMA,
Multi-Link Operation (MLO), and MU-MIMO, you
can connect up to 250 devices
simultaneously
to build a fully connected home. Enjoy a more
efficient network that loads faster without
dragging down performance.**

  • Web
    Browsing

  • Smart Home
    Devices

  • IP Camera
    Streaming

  • High-speed
    Downloading

  • 8K
    Streaming

  • Online
    Gaming

  • 720p
    Streaming

  • 1080p
    Streaming

  • 4K
    Streaming

Connects up to
250
devices§

§Testing of multiple
applications and devices is
conducted in TP-Link labs.
Actual results may vary.

Smart Mesh WiFi with Greater Flexibility

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.†

  • Whole Home Coverage

    Eliminate weak WiFi coverage areas throughout your home

    Eliminate weak signal areas with WiFi coverage for your entire home

  • Seamless Roaming

    Seamless streaming while on the move

    Uninterrupted streaming when moving around your home

  • One WiFi Name

    No more changing WiFi networks while you move around

    No more switching WiFi network names when you walk around

  • Robust Backhaul

    Supports both wireless backhaul and Ethernet backhaul

  • EasyMesh Routers

  • Traditional Router with Extender

Crafted with Care for the Planet We All Share

Designed with sustainability at its core, XB230v reduces its carbon footprint by using 100% recyclable plastics for its housing, fully recyclable paper, and vegetable-based ink for packaging.

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

Easy Setup Easy Setup

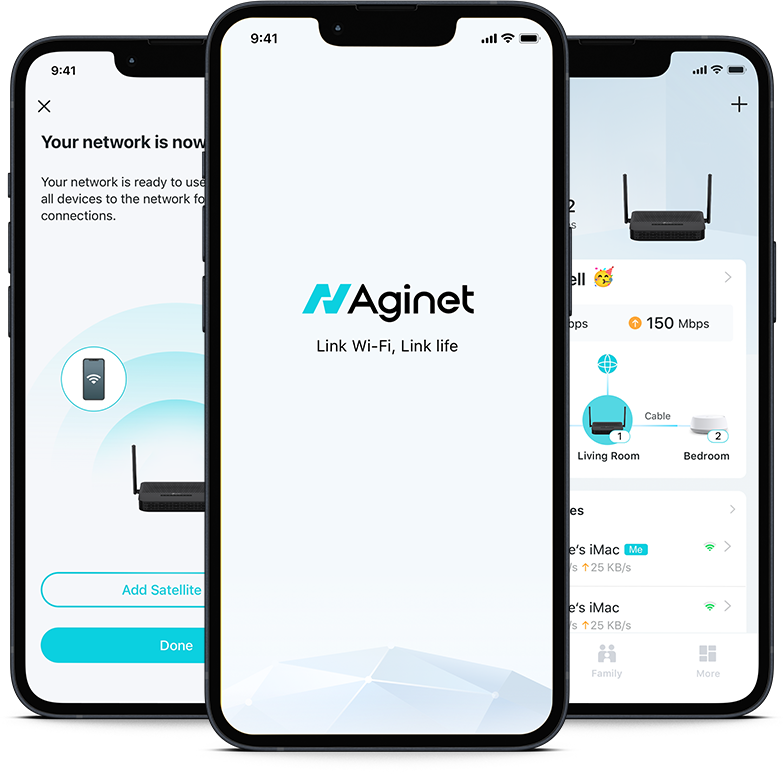

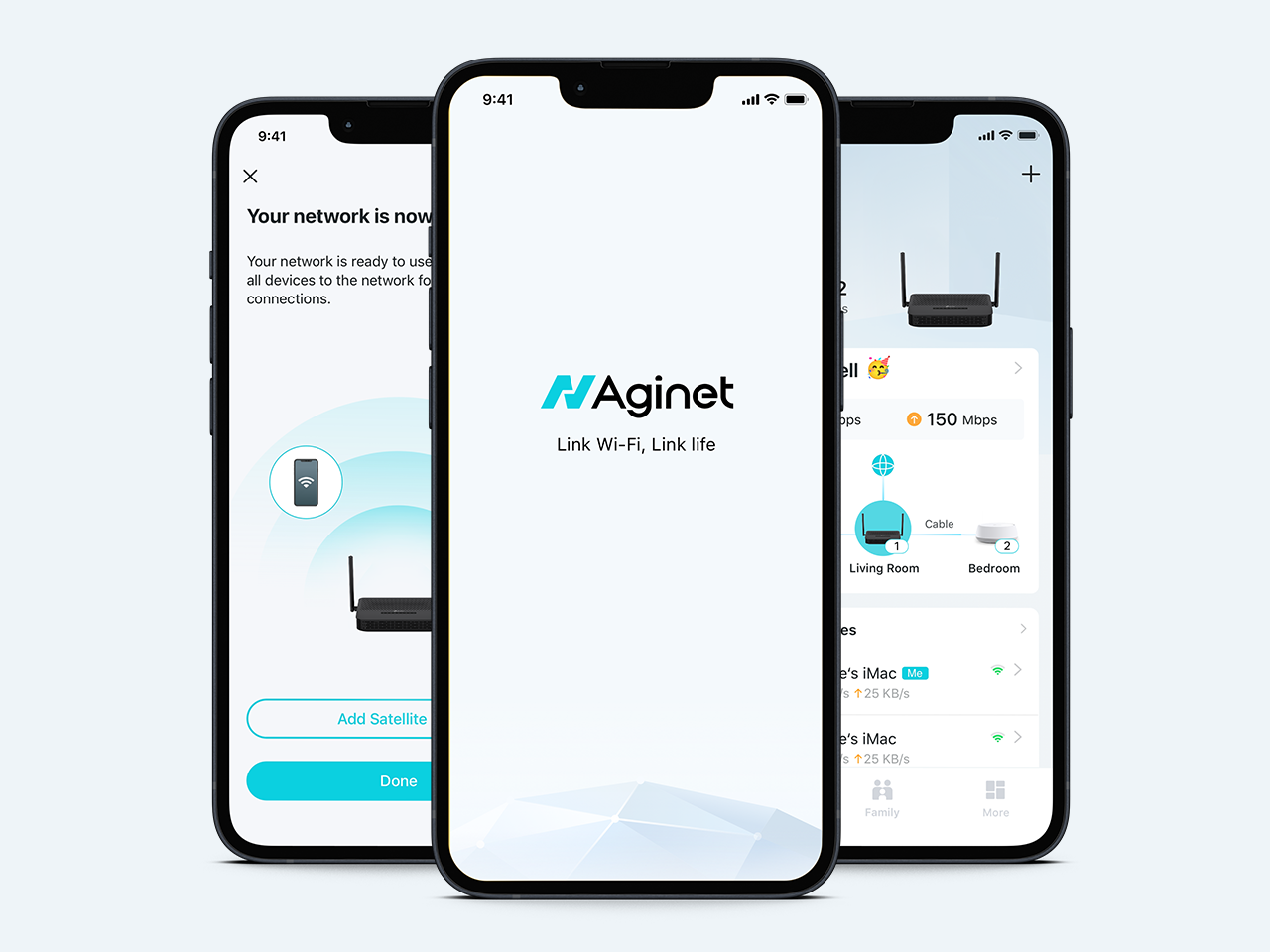

Easy Setup and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

QR Code for the Aginet App
Download on the Apple App Store badge Get it on Google Play badge

Centralized Remote Management

Service providers can remotely configure and manage devices via their ACS (Auto-Configuration Server, based on TR-369/069) system or the OMCI (ONU Management Control Interface) protocol. High-level operations are supported with TR-181, TR-111, and TR-143 compatibility, ensuring a smoother, more efficient service experience for home users.

ACS
OSS/BSS
Service Servers
TR-369/TR-069
OLT
OMCI
OMCI
TR-369/TR-069

Aginet Solution:
An End-to-End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn more about the Aginet Solution

lifestyle-image-1 lifestyle-image-2
lifestyle-image-1 lifestyle-image-2

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

**Use of WiFi 7 (802.11be), WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 160 MHz bandwidth might not be available on the 5 GHz band in some regions/countries due to regulatory restrictions.

†A mesh network requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It functions solely as a controller and supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.

△2.5 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN ports will operate as either a WAN or LAN port. Only one port can serve as a WAN port at any time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

HARDWARE FEATURES
External Power Supply 12V/1.5A
Interface 1× GPON Port
1× GbE WAN/LAN Port
2× GbE LAN Ports
1× Phone Port
1× USB 2.0 Port
Button WPS/Wi-Fi Button
Reset Button
Power On/Off Button
Antenna 2× External Dual-Band Antennas + 1× Internal 5G Antenna
Dimensions ( W x D x H ) 6.8 x 4.4 x 1.5 in (172 x 112.4 x 37 mm)
Data Rates Downstream Speeds: 2.488 Gbps (GPON)
Upstream Speeds: 1.244 Gbps (GPON)△
WIRELESS FEATURES
Frequency 2.4 GHz and 5 GHz
Signal Rate BE3600
5 GHz: Up to 2880 Mbps (EHT160)
2.4 GHz: Up to 688 Mbps (EHT40)*
Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security WPA/WPA2/WPA3 Encryptions
Wireless Standards IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology EasyMesh Compatible, and support 802.11k/v/r
SOFTWARE FEATURES
DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP
Quality of Service Hardware QoS, Flow Classification
Dynamic DNS DynDns, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec Pass-through
Management Features Local management: WebGUI, Aginet app (for end users)

Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 for service providers
Aginet APP for end user (need to log in with TP-Link ID and bind your device to it)

Cloud management: TAUC (TP-Link Aginet Unified Cloud) and TAUC-ACS
Security NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death"
Advanced Features Multi-Link Operation (MLO), 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS Color
Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic
Protocols IPv4, IPv6
VPN Server PPTP VPN, IPSec VPN , OpenVPN
OTHERS
Package Content XB230v Unit
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
