DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal

DS-P7002-01

  • ​​​​​​Flexible Scalability: Supports 1:64 splitting ratio—up to 64 ONUs by one device—perfect for small communities, businesses, and home offices.
  • High-Speed Uplink Ports: 1× 10G SFP+ port and 2× GbE uplink ports offer high-bandwidth and flexible connectivity options.
  • Dual Power Supplies: Carrier-class reliability with dual power supplies: AC or DC.
  • Zero-Touch Activation: Simplifies field operations with automated ONU onboarding.
  • Auto Provisioning: Deliver personalized broadband plans based on predefined service profiles.
  • Multi-Level QoS: Delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experience.
  • Advanced L2/L2+ Functions: Rich, robust functions meet flexible deployment and scalability needs.
  • Centralized Management: Supports management via the DeltaStream PON Management System (DPMS), SNMP, CLI, and Web UI.

Powering Your Service, Scale with Your Ambition

DeltaStream 1-Port Pizza-Box GPON Optical Line Terminal

DS-P7002-01

  • GPON Access
  • High Speed Uplink
  • Dual Power Supplies
  • Centralized Cloud Management
  • Backed by a Comprehensive FTTH Solution

Flexible Scalability

Flexible Deployment and Scalability

With its compact, 1RU rack-mountable design, the DS-P7002-01 delivers high-speed GPON services, offering flexible scalability to meet the internet needs of small communities, hotels, Multi-Dwelling Units (MDUs) and more. Additionally, its compact casing and redundant power supply enable efficient and versatile deployment.

Covers up to 64 households/ONUs △
2.5G downstream/1.25G upstream
10G SFP+ uplink port
2× Ethernet uplink ports
Zero-Touch
Activation
Auto Provisioning
Based on Profiles
△Based on the theoretical splitting ratios of 1:64, the actual number of covered households may vary depending on bandwidth requirements.
diagram of TP-Link router
Dual power supplies provide reliable performance and continuous service by utilizing both DC and AC power sources, with the AC power supply prioritized.
AC Input: 100V—240V, 50/60Hz, 0.2A
DC Input: 12V, 1A
diagram of the terminal's power source inputs

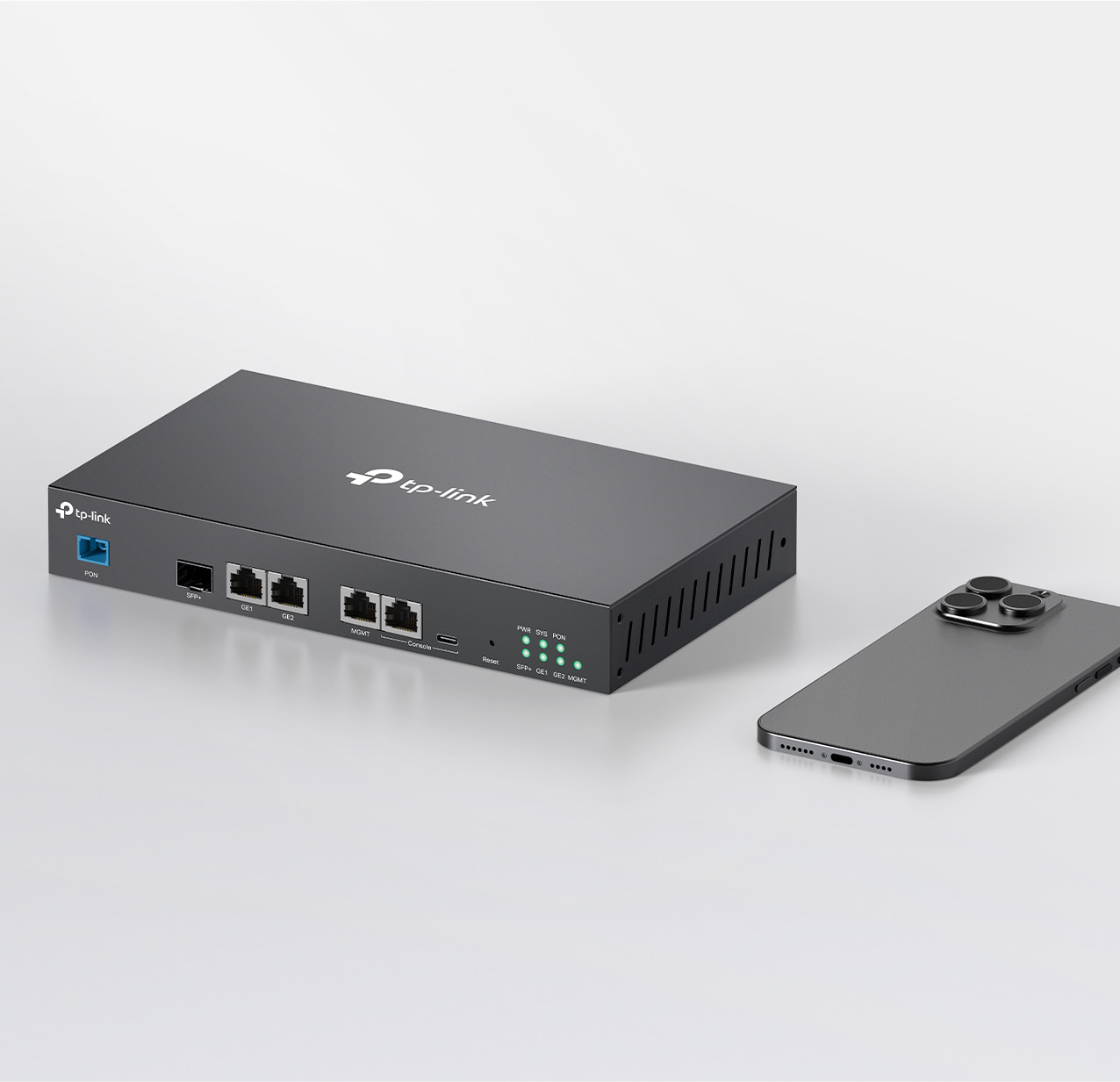

GPON terminal next to a phone

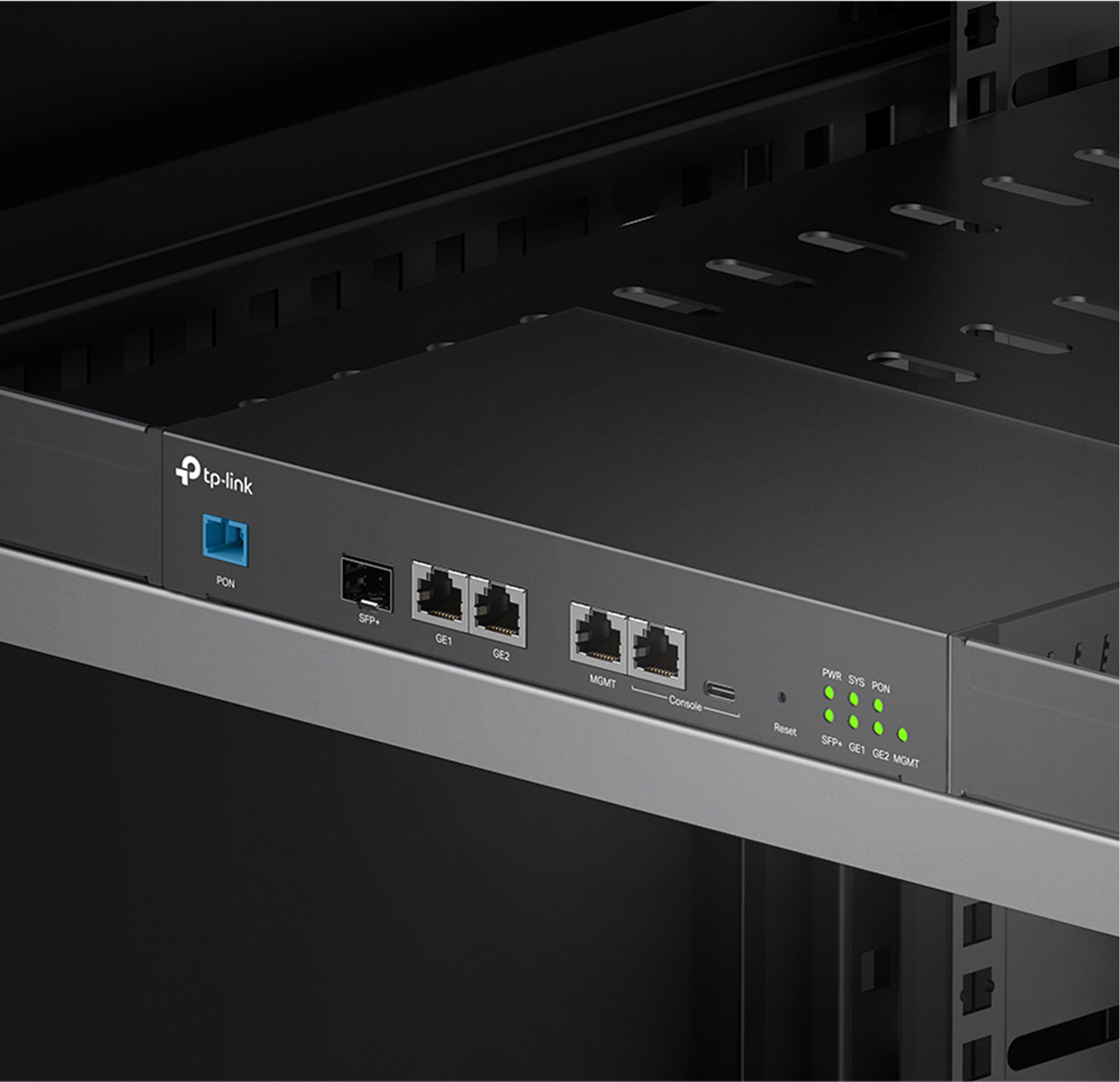

GPON terminal

Multi-Level QoS Strategy Offers Differentiated Services

Adopting a hierarchical Quality of Service (QoS) strategy, DS-P7002-01 delivers differentiated services to meet Service Level Agreements (SLAs) and enhance user experiences. It prioritizes critical, time-sensitive traffic, optimizes overall bandwidth based on refined policies, and implements detailed scheduling at the port, ONU, user, and service flow levels.

Video Calls
Online Gaming
Live Streaming
VoIP Calls
Web Browsing
Downloading
Total Bandwidth Available
Video - Very High Priority Queue
Gaming - High Priority Queue
Voice - Priority Queue
Best Effort Queue

Uninterrupted Connectivity with Type B PON Protection

Safeguards against service disruption by providing single-homing protection at the Optical Line Terminal (OLT) level. With active‑standby PON ports and independent fiber paths, this architecture ensures seamless switchover and service continuity in the event of a PON or fiber failure.

ONU 1
ONU N
Splitter
Protection Range
OLT
Active PON Port
Standby PON Port
PON Port
Active Link
Standby Link

Streamline OLT Operations with Easy Mode

Easy Mode transforms the complicated configuration process by turning the OLT into a centralized platform for ONT management. Simply apply a service profile based on the end‑user’s broadband needs and the system does the rest. All technical parameters are auto-configured in the background, making deployment faster, smarter, and easier than ever.

  • Faster service
    provisioning
  • Reduced training and operational costs
  • Minimized
    configuration errors
  • Efficient network management

Centralized Management via Cloud

With the DeltaStream PON Management System (DPMS), service providers can easily configure and manage multiple devices simultaneously, either locally or remotely via the cloud anytime, anywhere. Command‑line interface (CLI) compatibility and out‑of‑band management through the TR‑069/TR‑369 protocols enhances flexibility and efficiency while reducing operation costs.

  • Easy‑to‑use dashboard and UI ensures hassle‑free configuration
  • Gain insights into the traffic rates of the managed devices
  • Multi‑site management through one system
  • Batch management for OUN

Backed by a Comprehensive FTTH (Fiber-to-the-Home) Solution

Under the Aginet flagship, TP‑Link offers comprehensive one‑stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

ISP’s OSS/BSS Systems
Network and Device Data Exchange
Inventory Data Exchange
Mesh AP
WiFi Router /Mesh AP
XGS-PON Router
Mesh AP
XGS-PON SFU
WiFi Router /Mesh AP
GPON Router
Splitter
GPON SFU
Splitter
XGS-PON XGS-PON OLT
IPTV Internet VoIP
GPON GPON OLT

Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.

HARDWARE FEATURES
Interface 1× SC/UPC GPON Port
1× 10G SFP+ Uplink Port
2× Gigabit RJ45 Uplink Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 MGMT Port
Button Reset Button
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Max. Power Consumption Max. 10W
Power Supply Dual Power Supplies: DC and AC
DC Adapter: 12.0V/1.0A,
AC Adapter: 100V-240V, 50/60Hz 0.2A
SOFTWARE FEATURES
DHCP DHCP Server
DHCP Relay
Security ACL (IPv4/IPv6)
DHCP Filter
Port Security
Access Security
OMCI Standard OMCI Management Supported
ONU Authentication ONU Auto Authentication
ONU Security Rouge ONU Detection and Isolation
Uplink and Downlink Data Encryption
Multi-Service Multi-Service Traffic Identify and Rate Limit
QoS Port/IEEE 802.1p/DSCP Priority Remap
Scheduler Mechanism: WRR/SP
Ingress/Egress Rate Limit
Broadcast/Multicast/UL-Frame Storm Control
Voice VLAN
Auto VOIP
Routing Static Routing
Mulitcast IGMP Snooping
MLD Snooping
Centralized Management Large-Scale Devices Management
OLT Batch Configure, Upgrade, Reboot
Multi-Site Management
Intelligent Network Monitoring
Real-time Network Overview
OTHERS
Certification CE,FCC
Package Content DC Adapter
AC Cable
Console Cable
Mounting Brackets, Screws, and Rubber Feet
Installation Guide
Environment Operating Temperature: 0℃–50℃ (32℉–122℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
GPON port attribute
Transmission distance 60 KM
Data rate Downstream: 2.5 Gbps
Upstream: 1.25 Gbps*
Wave Length Tx: 1490 nm
Rx: 1310 nm
Max. Splitting Ratio 1:64
