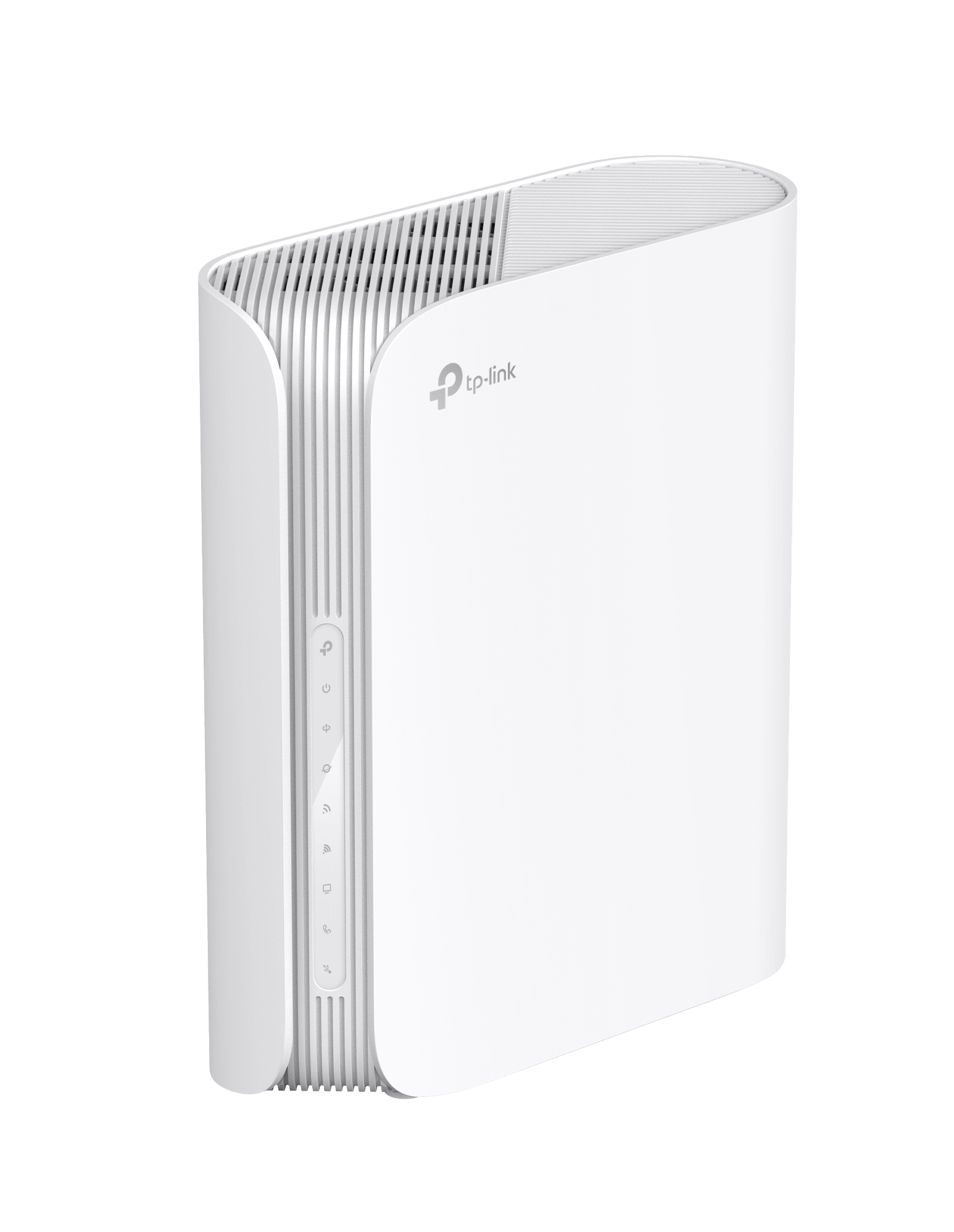

BE7200 Dual-Band Wi-Fi 7 VoIP Router

EB431v

  • BE7200 Dual-Band Wi-Fi: 5760 Mbps (5 GHz, EHT160) + 1376 Mbps (2.4 GHz, EHT40).†△
  • Multi-Gig Internet Connections: 1× 2.5GE WAN port, 1× 2.5GE LAN port, and 3× GE LAN ports provide ultra-fast speeds and flexible internet access.§
  • Next-Gen Wi-Fi Technology: Enjoy extreme Wi-Fi performance in network speed, efficiency, and capacity with cutting-edge technology.‡
  • EasyMesh-Compatible◇: Create a smart mesh network with seamless coverage and greater flexibility.
  • VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.
  • Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.

Unleash the Future of Connectivity

BE7200 Dual-Band Wi-Fi 7 VoIP Router

EB431v

wifi7 freq 10g

Dual-Band WiFi 7 Speeds up to 7136 Mbps

VoIP

2.5G Connectivity

Aginet Solution

End-to-End
Management Platform

VPN
Clients and Server

2.5GE LAN

USB 3.0 Port

2.5GE WAN

Multi-Link
Operation

Flexible
Mounting

Wall Mount*

Desktop

Remote
Management TR-O69/TR-369/Aginet App TR-O69/TR-369
/Aginet App

WiFi 7 — WiFi Like Never Before

WiFi 7 has arrived with jaw-dropping performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the pros and experience the sheer performance of the next generation of WiFi.

Watch Video > Learn more about WiFi 7>

Extremely High Throughput

WiFi 6

WiFi 5

7.2 Gbps Dual Band Wi-Fi 7 Speed

Powered by Wi-Fi 7 technology, EB431v delivers an incredible Wi-Fi speeds of up to 7.2 Gbps, enabling your devices to run at full speed

  • 5 GHz Band

    5764 Mbps

  • 2.4 GHz Band

    1376 Mbps
speed-bar1

8K Streaming

speed-bar1

Video Conferencing

speed-bar1

Online Gaming

speed-bar1

VR/AR

2.5G Internet Access and Wired Connectivity

One 2.5 Gbps WAN port maximizes home internet speeds with up to 2.5× the wired speed of a typical Gigabit Ethernet port. Combining its 2.5 Gbps LAN port, 3× Gigabit LAN ports and USB 3.0 port, EB431v is an ideal solution for future-proofing your home network.

Gaming Computer

NAS

2.5G PCIe Adapter/NIC

Game Server

2.5GE LAN

USB 3.0 Port

2.5GE WAN

Extensive WiFi Coverage and Stronger Signals

Beamforming Technology

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

4T5R Antenna Architecture for Optimized Connections

Engineered with a 4T5R (4 transmitters + 5 receivers) antenna architecture, EB431v delivers stronger signals and higher throughput on the 5 GHz band with high sensitivity.

1×
Extra 5G
Receiver Antenna

4×
High-performance
Dual-band Antennas

1×
Dual-band
DFS Antenna

Enjoy WiFi and Phone Calls Simultaneously

EB431v also integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

Analog Phone

VoIP Calls Phone

Voicemail Storage*

*This feature is available once you inserted a USB storage device to the USB port.

Flexibly Create Whole Home Mesh WiFi

EB431v is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home mesh WiFi. No more searching for a stable connection.◇

Learn more about EasyMesh>

  • WiFi Dead Zone Killer

    Eliminate weak signal areas with WiFi coverage for the whole house

  • Smart Roaming

    Uninterrupted streaming when moving around your home

  • One WiFi Name

    No more switching WiFi network names

  • EasyMesh Routers

  • Traditional Router with Extender

Optional Wall Mounting

With a sleek, flat design, this router can be wall-mounted in your home office, living room, or hallway to suit your needs, whether to save space or fit your décor.※

Recommended screws
Recommended screws:
5 < D < 9 mm
H < 3.5 mm
L > 8 mm
※The wall mount bracket is optional and may not be available for all product versions.
ΦD
H
L

Crafted with Care for the Planet We All Share

Designed with sustainability at its core, EB431v reduces its carbon footprint by using fully recyclable paper and vegetable-based ink for packaging.

Robust Network Protection

  • WPA3 Security

    Higher password safety and enhanced protection against attacks**

  • Parental Controls

    Block inappropriate content and restrict time spent online

  • Multi-SSID

    Create separate networks for visitors and keep your main network secure

Easy Setup and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.


Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols. While the home user can enjoy more efficient service experiences.

ACS
TR-069/TR-369
TR-181
TR-111
TR-143
Remote Management

Aginet Solution:
An End-to-End Management Platform for ISPs

The Aginet solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, zero-touch firmware upgrading, and remote troubleshooting and mesh WiFi diagnostics.

Learn more about the Aginet Solution>

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 100 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, and MU-MIMO requires clients to also support the corresponding features.

△The 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions.

§Muti-Gig Gbps internet speeds require compatible service plans and equipment.

◇TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

□Smart Roaming is designed for devices that support the 802.11k/v standard.

**Use of WPA3 requires clients to also support the corresponding feature.

***Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. All devices need to support 802.11 Wi-Fi protocols.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This router may not support all the mandatory features as ratified in the IEEE 802.11be specification.

HARDWARE FEATURES
External Power Supply 12V/2.5A (varies according to the actual product version)
Interface 1× 2.5GE WAN port
1× 2.5GE LAN port
3× Gigabit LAN ports
2× Phone Ports
1× USB 3.0 Port
Button Back: Power, Reset, WPS, Wi-Fi
Dimensions ( W x D x H ) 7.4 × 2.8 × 8.6 in (189 × 70 × 218 mm)
WIRELESS FEATURES
Frequency 2.4 GHz, 5 GHz
Signal Rate BE7200
5 GHz: Up to 5760 Mbps (EHT160)
2.4 GHz: Up to 1376 Mbps (EHT40)*
Wireless Security WPA/WPA2/WPA3-Personal
Wireless Standards IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/g/b 2.4 GHz
Transmission Power FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)

CE:
<20 dBm (2.4 GHz)
<30 dBm (5 GHz)
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
Mesh Technology EasyMesh compatible and supports 802.11k/v/r
SOFTWARE FEATURES
WAN Type Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Quality of Service WMM
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Management Local management: WebGUI, Aginet app (for end users)

Remote management:
TR-069, TR-098, TR-181, TR-369, TR-111,TR-143 for service providers
Aginet App for end users (need to log in wtih TP-Link ID and bind your device to it)

Cloud management: TP-Link Aginet Unified Cloud (TAUC)
Advanced Features Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS Color
QoS (Quality of Service), Port Forwarding, CWMP
Parental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic
Protocols IPv4
IPv6
VPN PPTP, OpenVPN, IPSec
Working Modes Router Mode
Access Point Mode
OTHERS
Certification CE
Package Contents 1× EB431v
1× Power Adapter
1× RJ11 Phone Cable
1× RJ45 Ethernet Cable
1× Quick Installation Guide
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
